Micro-Master Touch User Guide
73
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014

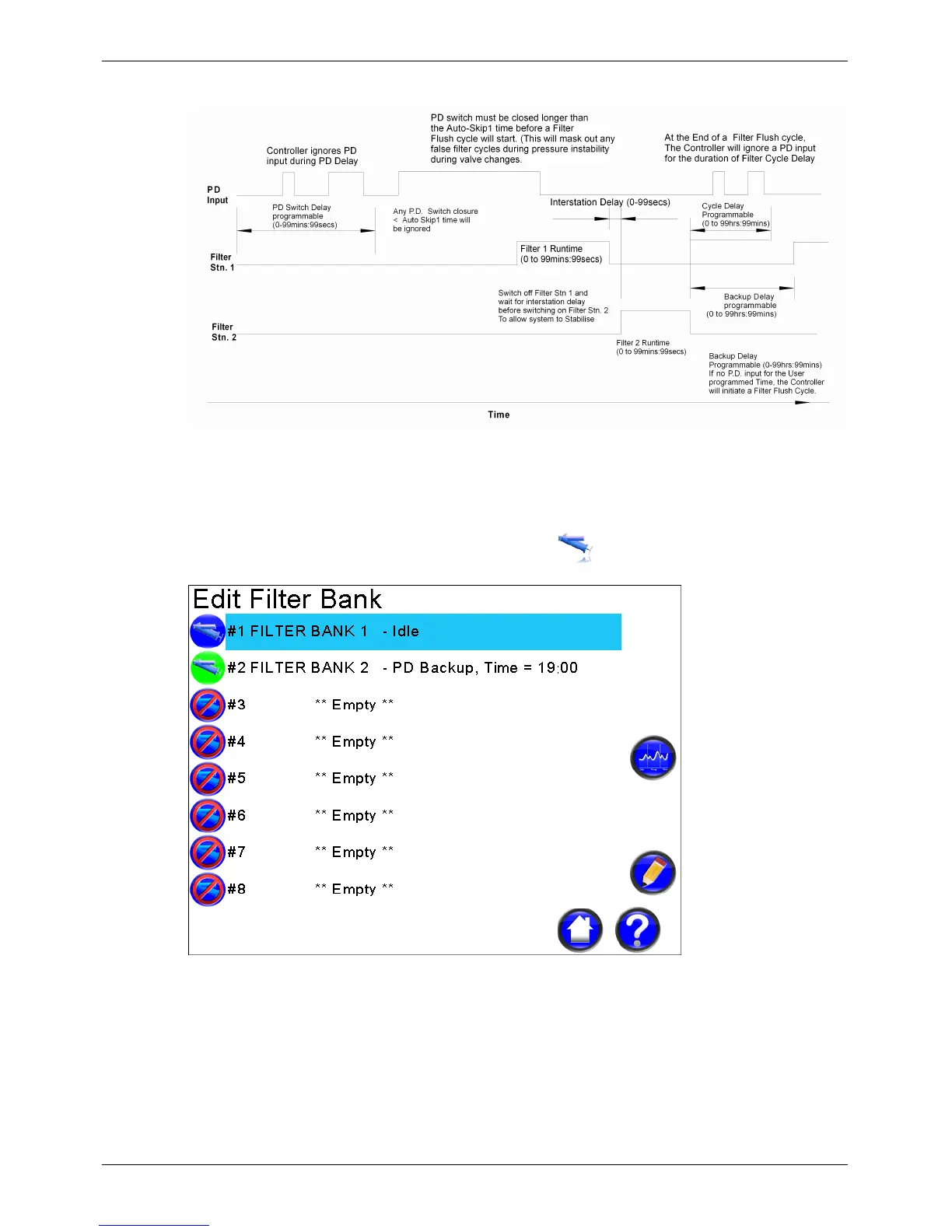

Figure 49 - Filter Delay Schematic
12.2 Filter Bank List
The Filter Bank List screen is displayed by pressing the icon on the Home Screen.
Figure 50 - Filter Bank List
Filter Bank Names and Status
Each line in this list displays the name of the Filter Bank (if assigned) and the current status of the
Filter Bank. Clicking on a name will select the Filter Bank, changing the background of the selected
Filter Bank to light blue. Selecting a Filter Bank and then clicking Edit will display the Filter Bank Edit
screen.
