Filter Bank Status Icons
The status of each Filter Bank is shown graphically using different icons.
Indicates a Filter Bank is empty or is disabled. An empty Filter Bank displays "**
Empty **", a disabled Filter Bank displays the name of the Filter Bank.
Indicates a Filter Bank is idle. A Filter Bank is idle when the Filter Bank is open.
Indicates a Filter Bank is active. A Filter Bank is active when the Filter Bank is
closed.
12.3
Filter Bank Edit
The Filter Bank Edit screen is displayed by pressing the icon on the Filter Bank List screen.

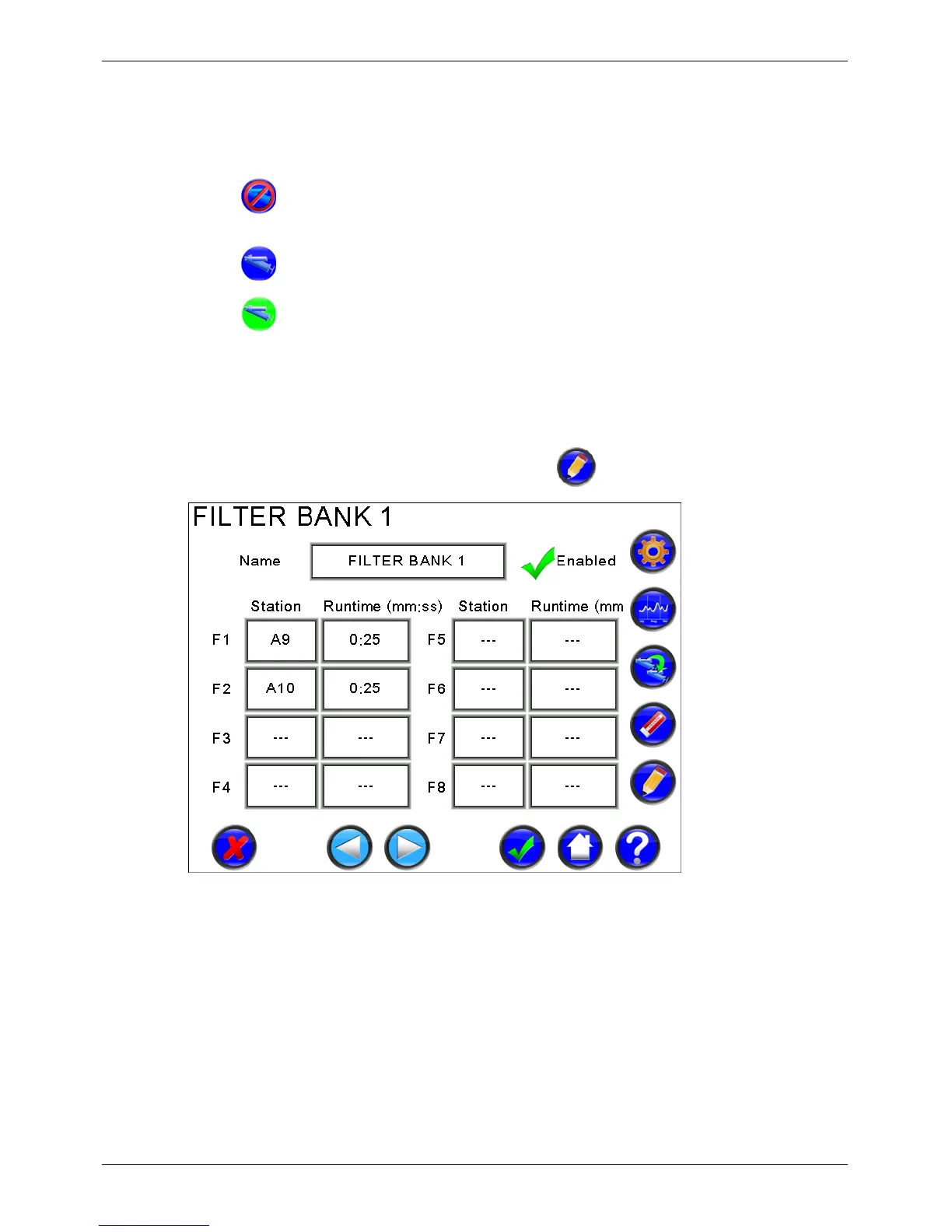

Figure 51 - Filter Bank Edit
In the example screen shown in Figure 51, two filters on stations A9 and A10 (Master Unit, stations 9
and 10) have been allocated to run 25 seconds each.
Filter Bank Name
Each Filter Bank can be assigned a name. Names are limited to 20 characters. Selecting the name
button and clicking Edit will display the Text Edit screen.
Filter Station Output
Clicking on a filter station item will select the station, changing the background of the selected item to
