Micro-Master Touch User Guide
51
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
9.2.8 Control Inputs
The Control Inputs screen is the third page of Advanced Program Parameters and is displayed by
pressing the icon on the Program Edit - Sequential or Program Edit - Grouping screen and
selecting the page by pressing the icon twice.

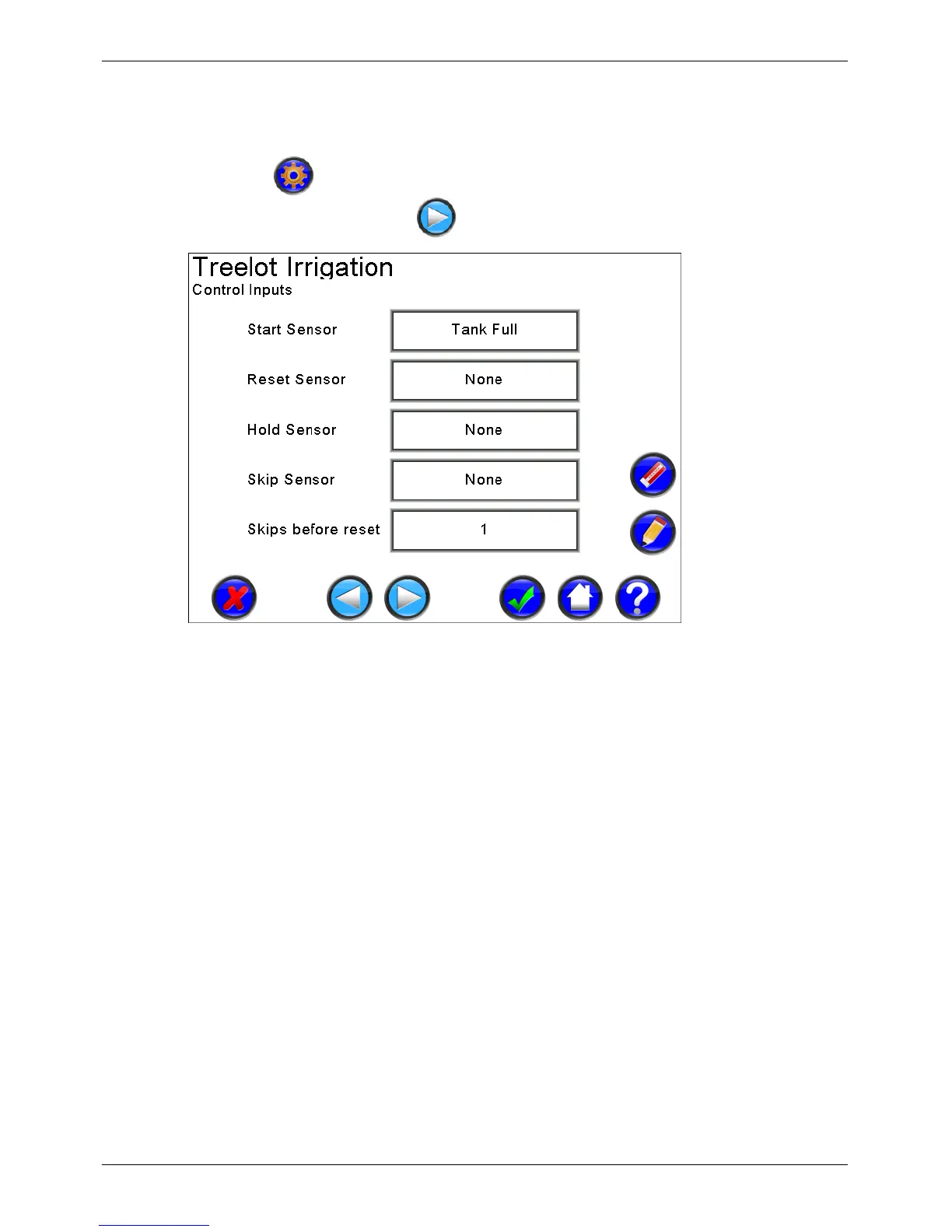

Figure 31 - Program Advanced Parameters Edit - Page 3
In the example screen shown in Figure 31, the Treelot irrigation will be started by the Tank Full
Sensor.
Program Control Sensors
Clicking on a control sensor will select the item, changing the background of the item to light blue.
Selecting the button and then clicking Edit will display the Control Select screen.
