Micro-Master Touch User Guide
52
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
9.2.9 Pumps, Filters and Flow Meters
The Pumps, Filters and Flow Meters screen is the fourth page of Advanced Program Parameters and
is displayed by pressing the icon on the Program Edit - Sequential or Program Edit - Grouping
screen and selecting the page by pressing the icon three times.

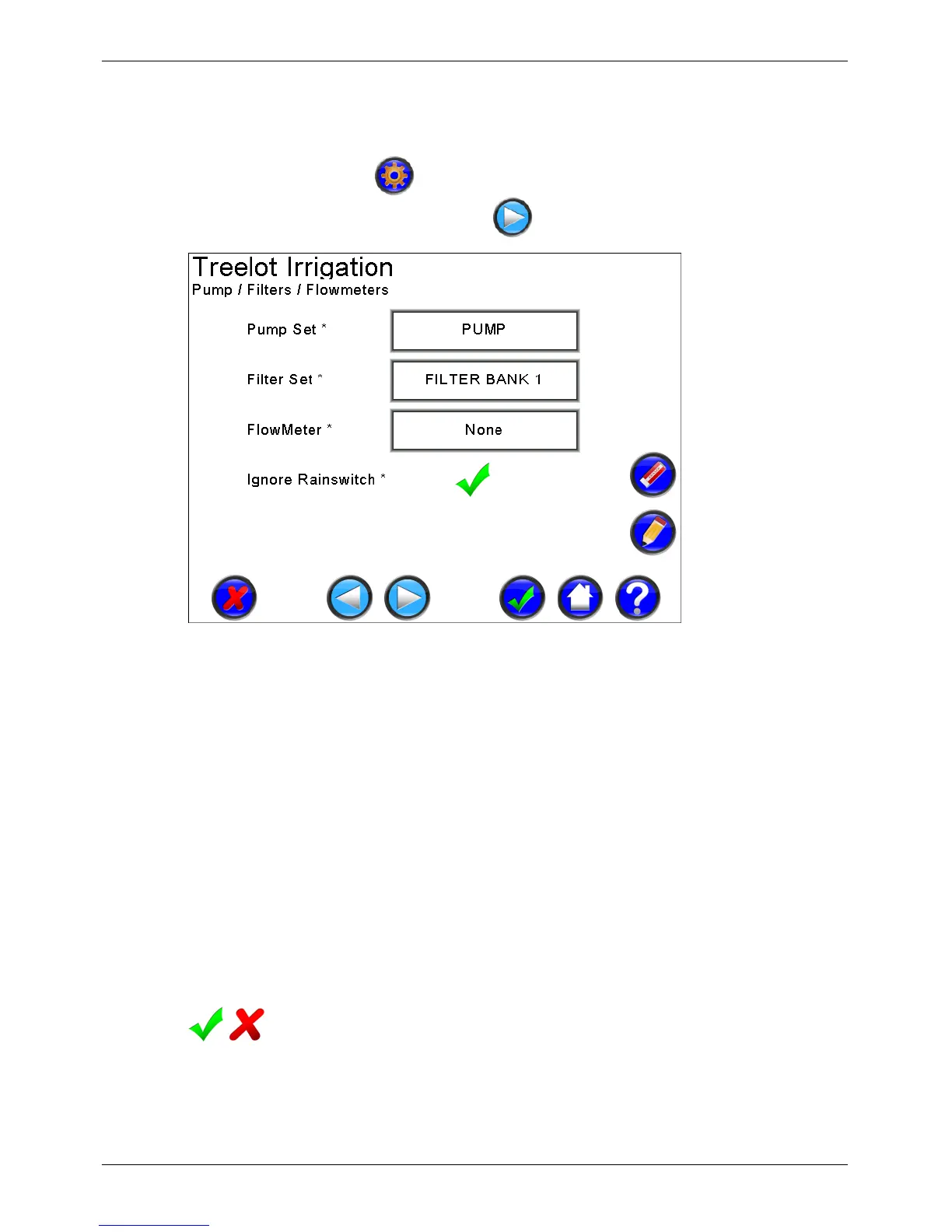

Figure 32 - Program Advanced Parameters Edit - Page 4
In the example screen shown in Figure 32, The Pump Set and Filter Set have been allocated, but no
flow meter has been allocated. Flow Meters can be allocated to programs, chemicals, and pumps
and will display in the status screens of those systems.
Program Pump Set
Clicking on the Pump Set item will select the item, changing the background of the item to light blue.
Selecting the button and then clicking Edit will display the Control Select screen.
Program Filter Set
Clicking on the Filter Set item will select the item, changing the background of the item to light blue.
Selecting the button and then clicking Edit will display the Control Select screen.
Program Flow Meter
Clicking on the Flow Meter item will select the item, changing the background of the item to light
blue. Selecting the button and then clicking Edit will display the Control Select screen.
Ignore Rain Switch
Programs can be set to ignore the global rain switch setting. This would be the case if a program is
used to control non-irrigation equipment. The icon shows the current state of the setting. Clicking on
the tick (cross) will change the setting to disabled (enabled).
To Next Page
