Toro Micro-Master Series User Manual

Micro-Master Touch User Guide
88
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
Rule Target
The Rule Target items select the
this
and
target
parts of the rule structure (if conditions then do
this
to
target
). Selecting the item and clicking Edit will display the Control Sensor selection screen.
14.3.4 Rule Status and Totals
The Status and Totals screen is the only page of Advanced Rule Parameters and is displayed by
pressing the icon on the Rule Edit screen.

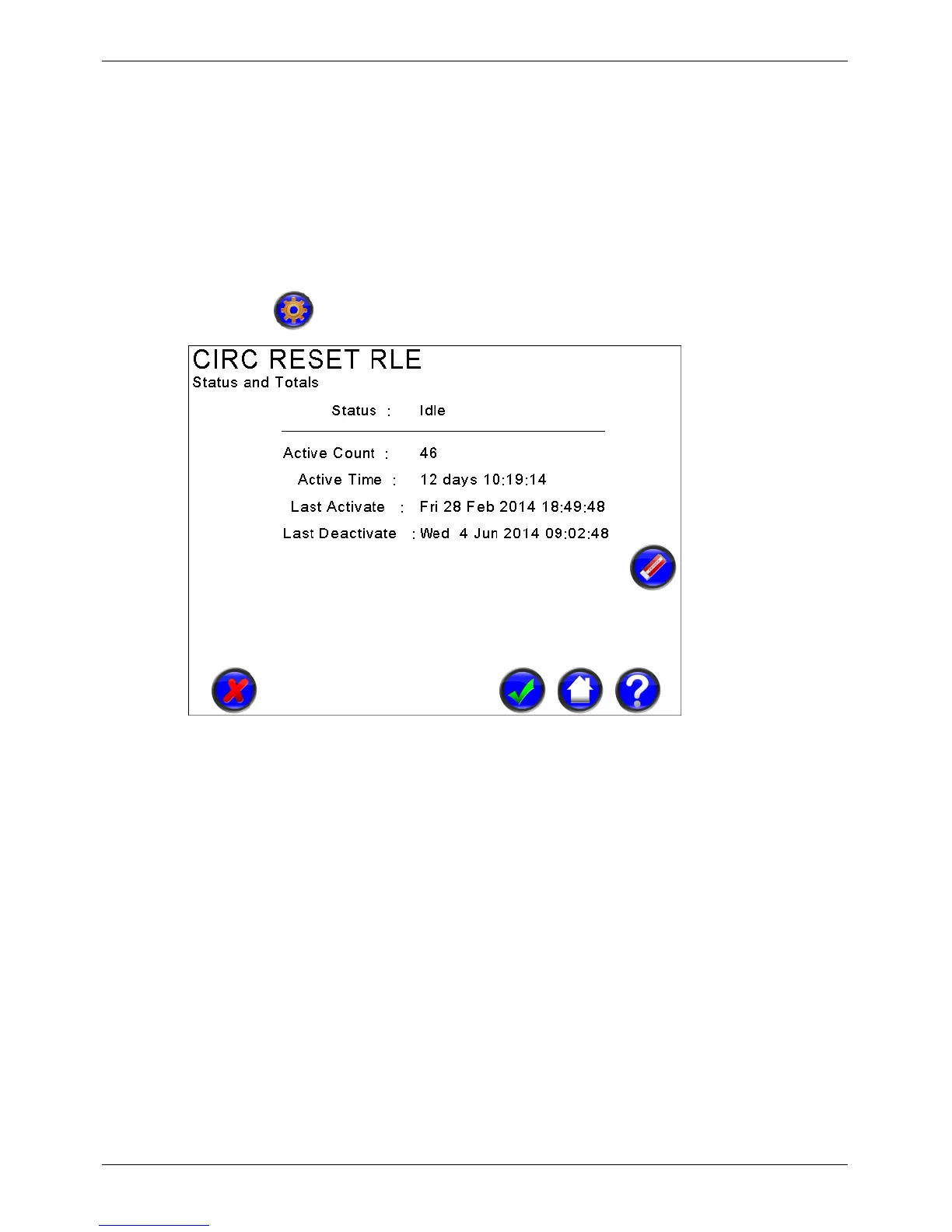

Figure 62 - Rule Status and Totals
Rule Status
This section shows the current status of the rule.
Rule Totals
This section shows the current totals for the rule. Clicking the clear button will clear the totals.
14.4
Flow Meters
14.4.1 Overview and Operation
The Micro-Master Touch supports up to thirty two independent aggregate flow meters. Flow meters
can use any one of the main screen panel switch inputs as the pulse input and supports flow meters
that provide 1 or more pulses per litre, 10 litres, 100 litres or kilolitres.
Each flow meter can be named and can be enabled or disabled without modifying the inputs.
