Micro-Master Touch User Guide
98
© 2014 Toro Australia Pty Ltd Ver 1.2, June 2014
Aggregate Trigger Value
The setting adjusts the flow rate (in l/m) at which the aggregate flow meter will become triggered.
Selecting the trigger button and clicking Edit will display the Number Edit screen.
Aggregate Total Flow
This button shows the real time total flow for the aggregate flow meter. Selecting the total button and
clicking Edit or Clear will reset the total flow to zero.
Aggregate Flow Meter Enabled
Aggregate Flow Meters can be enabled or disabled. Clicking on the tick (cross) will change the
Aggregate Flow Meter to disabled (enabled).
14.5.4 Aggregate Status and Totals
The Status and Totals screen is the only page of Advanced Aggregate Flow Meter Parameters and is
displayed by pressing the icon on the Aggregate Flow Meter Edit screen.

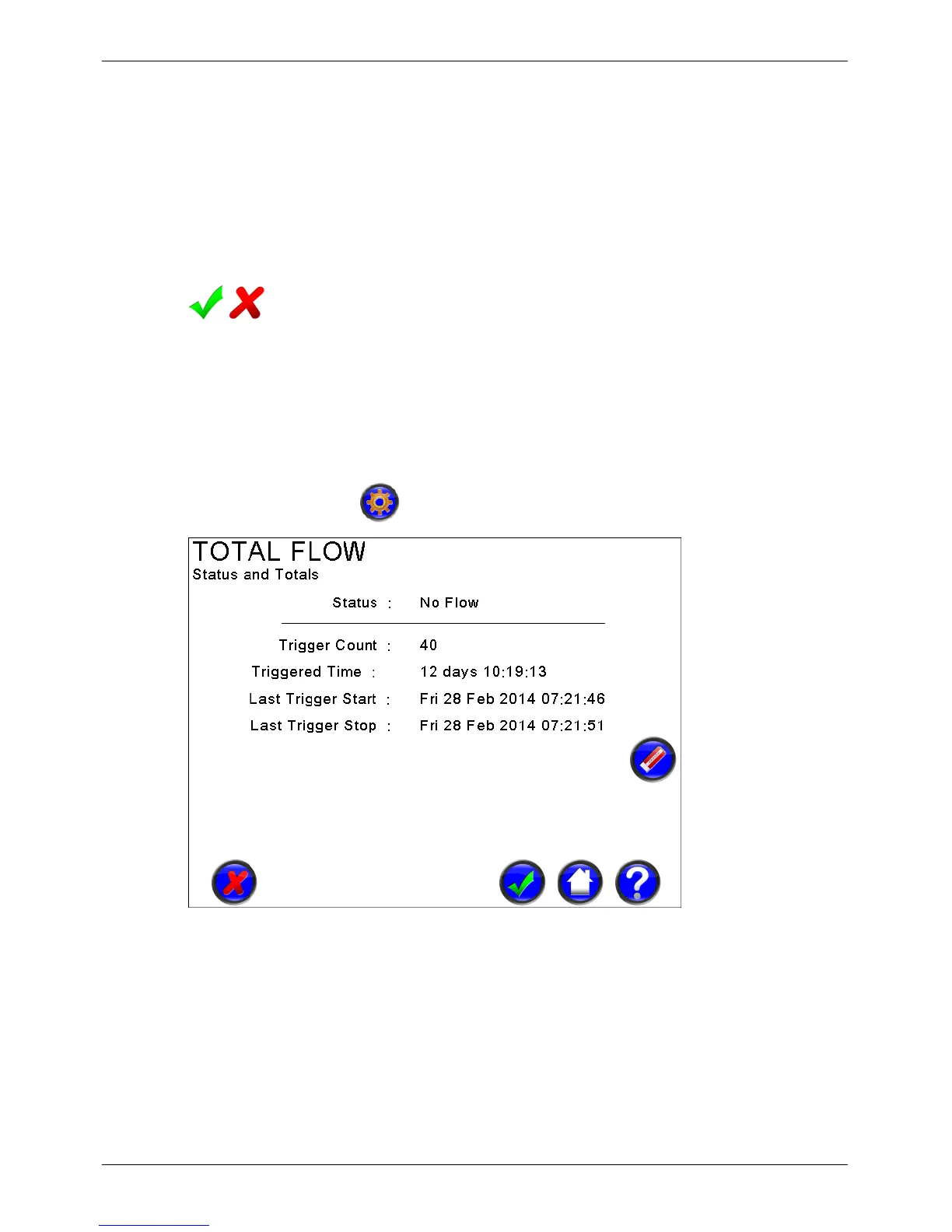

Figure 70 - Aggregate Flow Meter Status and Totals
Aggregate Flow Meter Status
This section shows the current status of the aggregate flow meter.
Aggregate Flow Meter Totals
This section shows the current totals for the aggregate flow meter. Clicking the clear button will clear
the totals.
