Left side

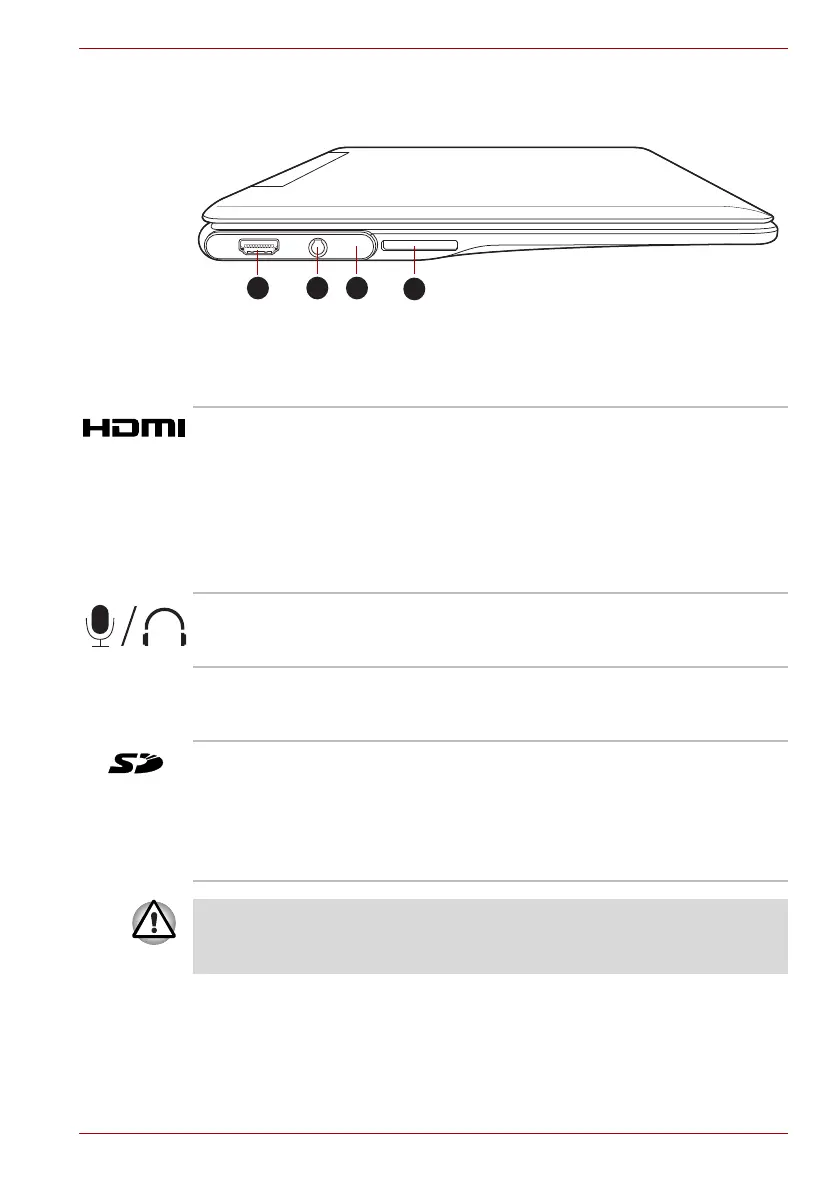

The following figure shows the device’s left side.
Figure 1-4 The left side of the device
1. HDMI out port 3. Notification LED
2. Microphone/Headphone combo jack 4. Bridge Media slot
HDMI out port HDMI out port can connect with Type A
connector HDMI cable.
You can send video and audio signals via HDMI
cable. In addition to this, you can send and
receive control signals via it.
Please refer to the HDMI device section in
Chapter 6, Hardware & Options Operation for
details.
Microphone/
Headphone combo
jack
A 3.5 mm mini microphone/headphone combo
jack enables connection of a monaural
microphone or a stereo headphone.
Notification LED The Notification LED will glow white when a new
email or SMS is received. You can adjust the
notification patterns in the settings menu.
Bridge media slot This slot lets you insert an SD™/SDHC™
memory card, miniSD™/microSD™ Card and
MultiMediaCard™.
Please refer to the Bridge media slot section in
Chapter 6, Hardware & Options Operation for
details.
Keep foreign metal objects, such as screws, staples and paper clips, out of
the Bridge media slot. Foreign metal objects can create a short circuit,
which can cause damage and fire, possibly resulting in serious injury.
