Data Graphs
You can use the Tracer® AdaptiView™ display to view a variety of default data graphs and to
create up to six custom data graphs with up to eight data points per graph. The data sample rate
is 30 seconds, and the data storage duration is 48 hours. These rates cannot be adjusted.
The Data Graphs Screen
Touch the DDaattaa GGrraapphhss button in the main menu area to view the Data Graphs screen shown in
the following figure. Each button on the screen links to a data graph.
The buttons under the Default Graphs heading for Simplex chillers are:
• Chiller Overview 1
• Chiller Overview 2
• Approach Temperature
• Evaporator
• Motor
• Condenser
• Motor Temperature
• Compressor
• Purge
• Oil System or Lube System
When you create custom graphs, they appear under the Custom Graphs heading with names
such as “Custom 1” and “Custom 2,” as shown in the following figure.

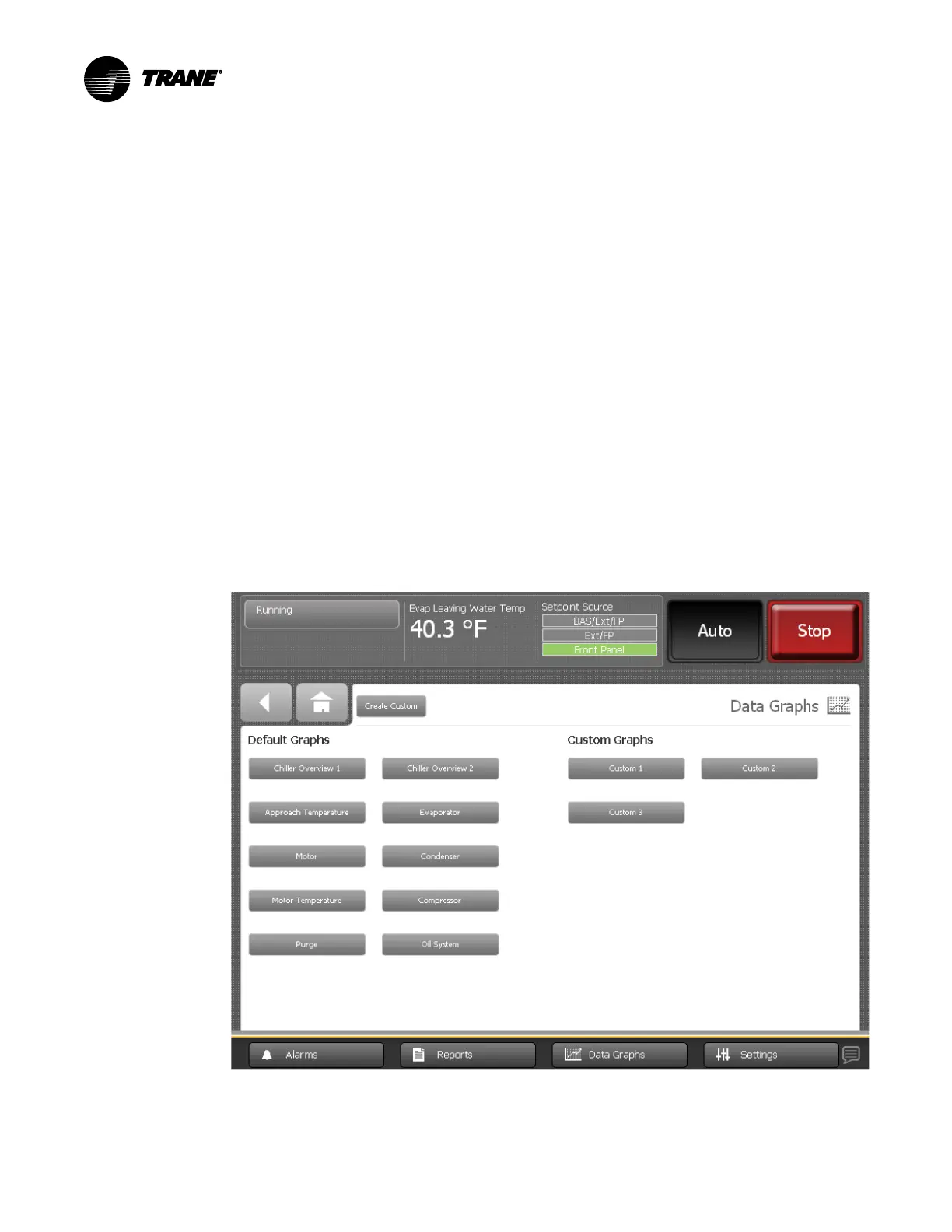

Figure 14. Data Graphs screen
The buttons under the Default Graphs heading for Duplex™ chillers are:
CChhiilllleerr
• Chiller Overview 1
