Trane Tracer AdaptiView User Manual

CTV-SVU01G-EN
49
Changing a Manual Control Setting
To change a manual control setting, follow this procedure:
1. In the Equipment Settings column on the Settings screen, touch MMaannuuaall CCoonnttrrooll SSeettttiinnggss.
The Manual Control Settings screen appears as shown in the following figure.

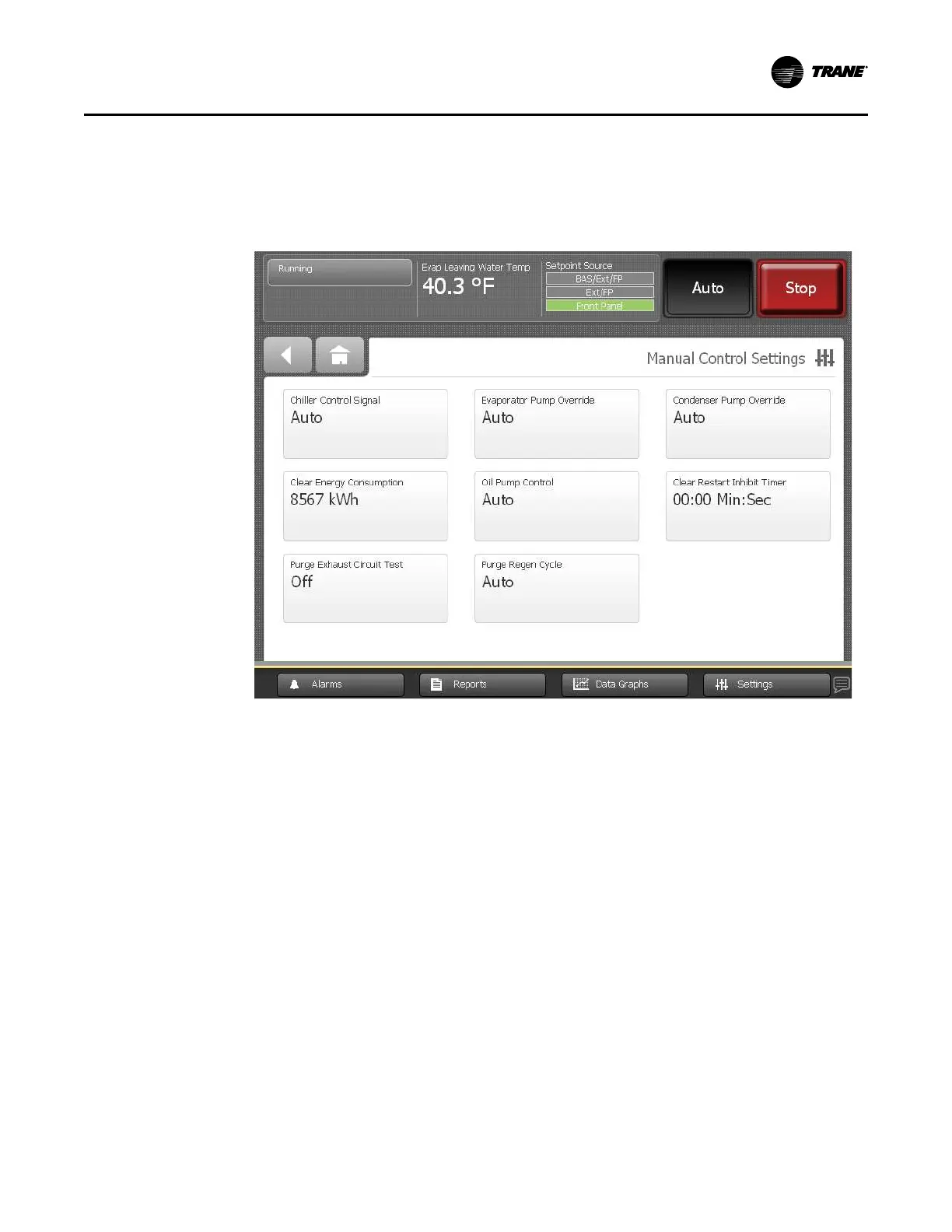

Figure 27. Manual Control Settings screen
2. Touch the button that shows the manual control setting you want to change. A screen for
changing the manual control setting appears as shown in the following figure.
3. Touch the button that represents the setting you want. The button becomes shaded and
AAppppllyy and SSaavvee buttons appear at the bottom of the screen.
NNoottee:: The Compressor Control Signal screen provides up/down arrow keys and numerical
fields for selecting a value.
4. To save your change, do one of the following:
• Touch AAppppllyy. The change is communicated to the Tracer® UC800 controller. You can
observe the status points in the lower half of the screen change in response to the setting
change you just made. Also, a Manual Override button appears in the upper left corner of
the screen (refer to the following figure).
• Touch SSaavvee. The change is communicated to the Tracer® UC800 controller. The screen
you were previously viewing appears.
EEqquuiippmmeenntt SSeettttiinnggss
