General Information

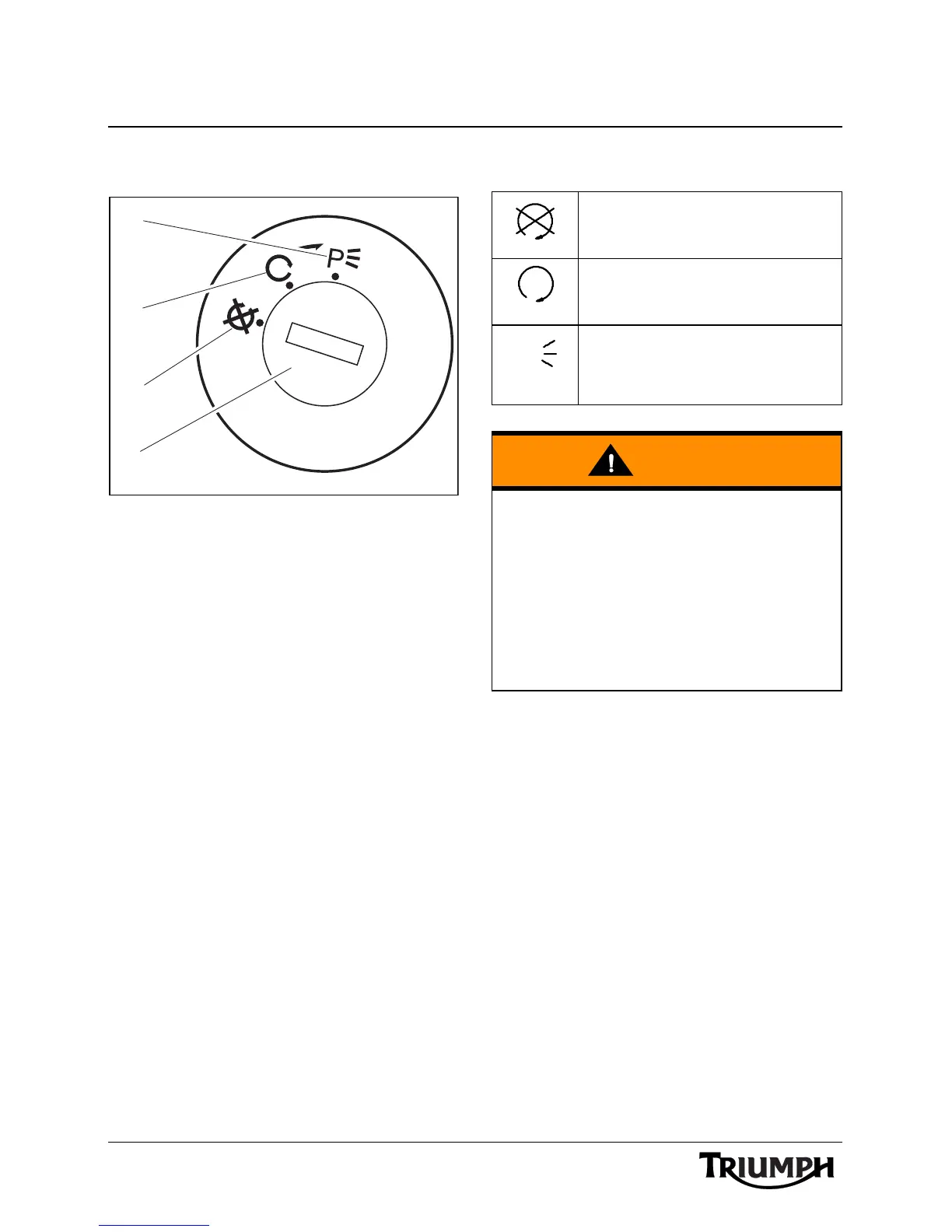

Ignition Switch
1. Ignition switch
2. OFF position
3. ON position
4. P (PARK) position
Switch Location
The switch is located on the left hand side of
the motorcycle, at the rear of the side cover.
Switch Operation
This is a three position, key operated switch.
The key can be removed from the switch
only when it is in the OFF or P (PARK)
positions.
To turn the switch from OFF to ON, insert
the key and turn the key clockwise to the ON
position.
To turn the switch from ON to PARK, push
the key barrel further into the lock and turn
clockwise to the PARK position. Use the PARK
position only when temporarily leaving the
motorcycle in a situation where the position
lights must remain on.
To turn the key back to OFF, turn the key
anti-clockwise.
Ignition Switch Positions
Note:
• Do not leave the ignition switch in
the P position for long periods as
this will cause the battery to
discharge.
T908011
4
3
2
1
Engine off. All electrical circuits
off.
Engine on. All electrical
equipment can be used.
Engine off. Tail, side and licence
plate lights on, all other electrical
circuits cut off.
Warning
For reasons of security and safety, always
turn the ignition to the OFF or PARK
position and remove the key when leaving
the motorcycle unattended.
Any unauthorised use of the motorcycle
may cause injury to the user, other road
users and pedestrians and may also cause
damage to the motorcycle.
P

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
