Triumph Speedmaster User Manual

33
General Information
Note:
• When using the side stand, always
turn the handlebars fully to the left
and leave the motorcycle in first
gear.
Owner’s Handbook

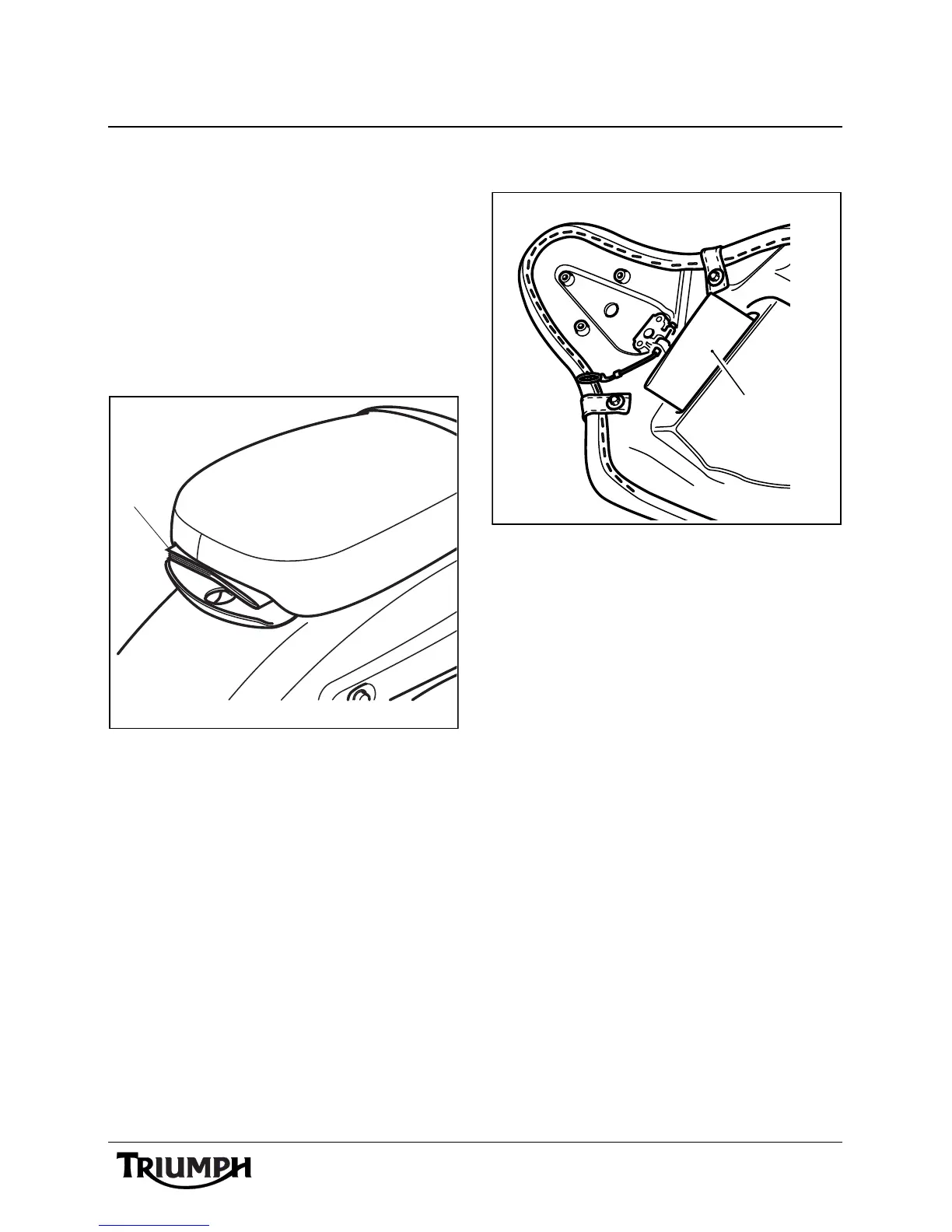

America Handbook Storage
1. Owner’s handbook storage - America
The motorcycle owner's handbook is stored
in a pocket beneath the passenger seat.
To access the handbook, pull back the pocket
cover (which is hinged at its lower edge)
using the finger-hole. Once the cover is open,
the handbook may be slid rearwards to
remove it from the space beneath the seat.
To store the handbook, place it back in the
pocket and close the cover, ensuring it is fully
secured.
Speedmaster Handbook Storage
1. Owner’s handbook storage -
Speedmaster
The motorcycle owner's handbook is stored
in a pocket beneath the seat.
To access the handbook, remove and invert
the seat. The handbook may be slid
rearwards to remove it from the space
beneath the seat.
To store the handbook, place it back in the
space beneath the seat, then refit the seat as
described under 'seat refit' (see page 31 ).
T908021USA
1
cbbf
1

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
