Maintenance and Adjustment

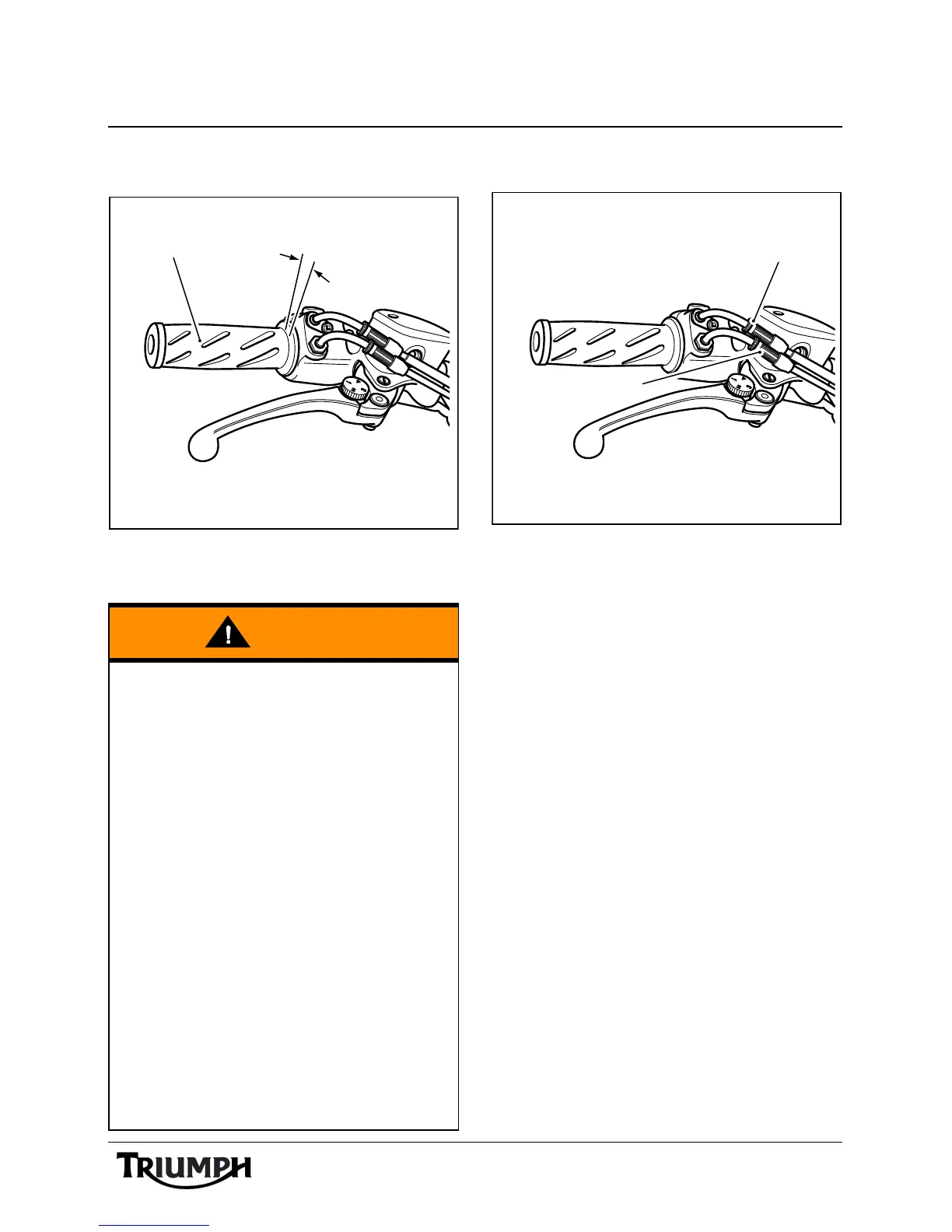

Throttle Grip
1. Throttle grip
2. 2 - 3 mm
Inspection
1. 'Opening' cable adjuster - twist grip
end
2. 'Closing' cable
• Check that the throttle opens
smoothly, without undue force and
that it closes without sticking. Have
your authorised Triumph dealer
check the throttle system if a
problem is detected or any doubt
exists.
• Check that there is 2 - 3 mm throttle
grip free play when lightly turning
the throttle grip back and forth.
• If there is an incorrect amount of
free play, Triumph recommends that
you have adjustments made by an
authorised Triumph dealer. However,
in an emergency, throttle
adjustments may be made as
follows:
Warning
The throttle grip controls the throttle valves
in the throttle bodies. If the throttle cables
are incorrectly adjusted, either too tight or
too loose, the throttle may be difficult to
control and performance will be adversely
affected.
Check the throttle grip free play in
accordance with scheduled maintenance
requirements and make adjustments as
necessary.
Always be alert for changes in the 'feel' of
the throttle and have the throttle system
checked by an authorised Triumph dealer
if any changes are detected. Changes can
be due to wear in the mechanism, which
could lead to a sticking throttle.
An incorrectly adjusted, sticking or stuck
throttle will lead to loss of motorcycle
control and an accident.
1
2
cbmx
1
2
cbmx

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
