Triumph Speedmaster User Manual

80
Maintenance and Adjustment

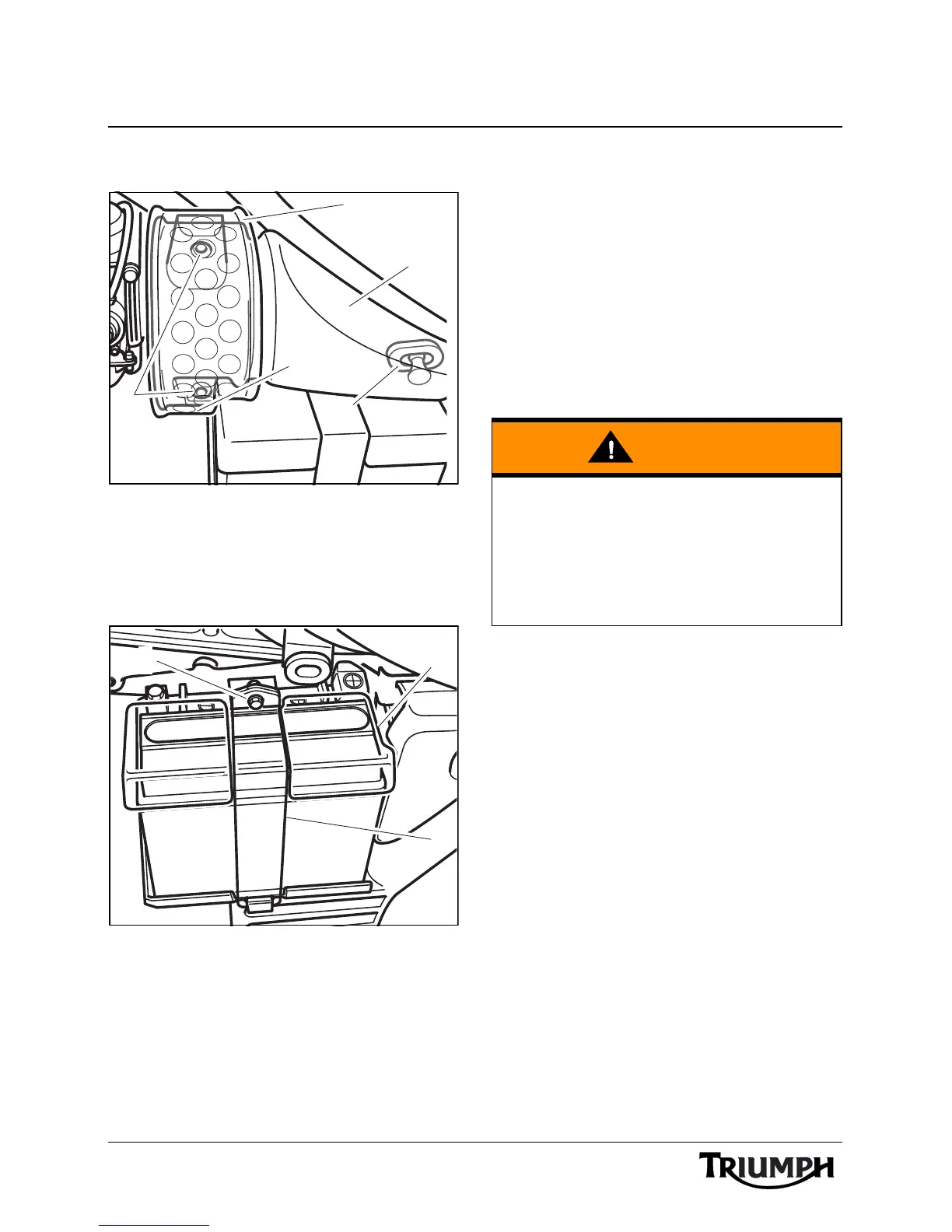

Battery Removal
1. A i r b ox f i n i s h e r
2. Airbox finisher fixing
3. Airbox cover
4. Airbox cover fixings
5. Stud and grommet location
1. Battery cover
2. Battery cover strap
3. Battery cover strap fixing
• Release the screw securing the
airbox finisher to the airbox cover.
Remove the finisher.
• Release the screws securing the
airbox cover to the airbox.
• Ease the cover outwards from the
motorcycle releasing a stud, located
at the rear of the cover, from its
grommet.
• Remove the fixing from the battery
cover strap.
• Detach the strap from its lower
hinge and remove the battery cover.
• Disconnect the battery leads,
negative (black) lead first.
• Tilt the battery outward from the top
to remove it from the battery tray.
Note:
• The Engine Control Module (ECM)
is located at the rear of the battery
tray and is secured to the
motorcycle by the battery. Ensure
the ECM is not disturbed during
the battery removal or installation
process.
T908045aUSA
1
2
3
4
5
T908045bUSA
1
2
3
Warning
Ensure that the battery terminals do not
touch any part of the motorcycle as this
may cause a short circuit or spark which
would ignite battery gases causing a risk of
personal injury and damage to the
motorcycle.

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
