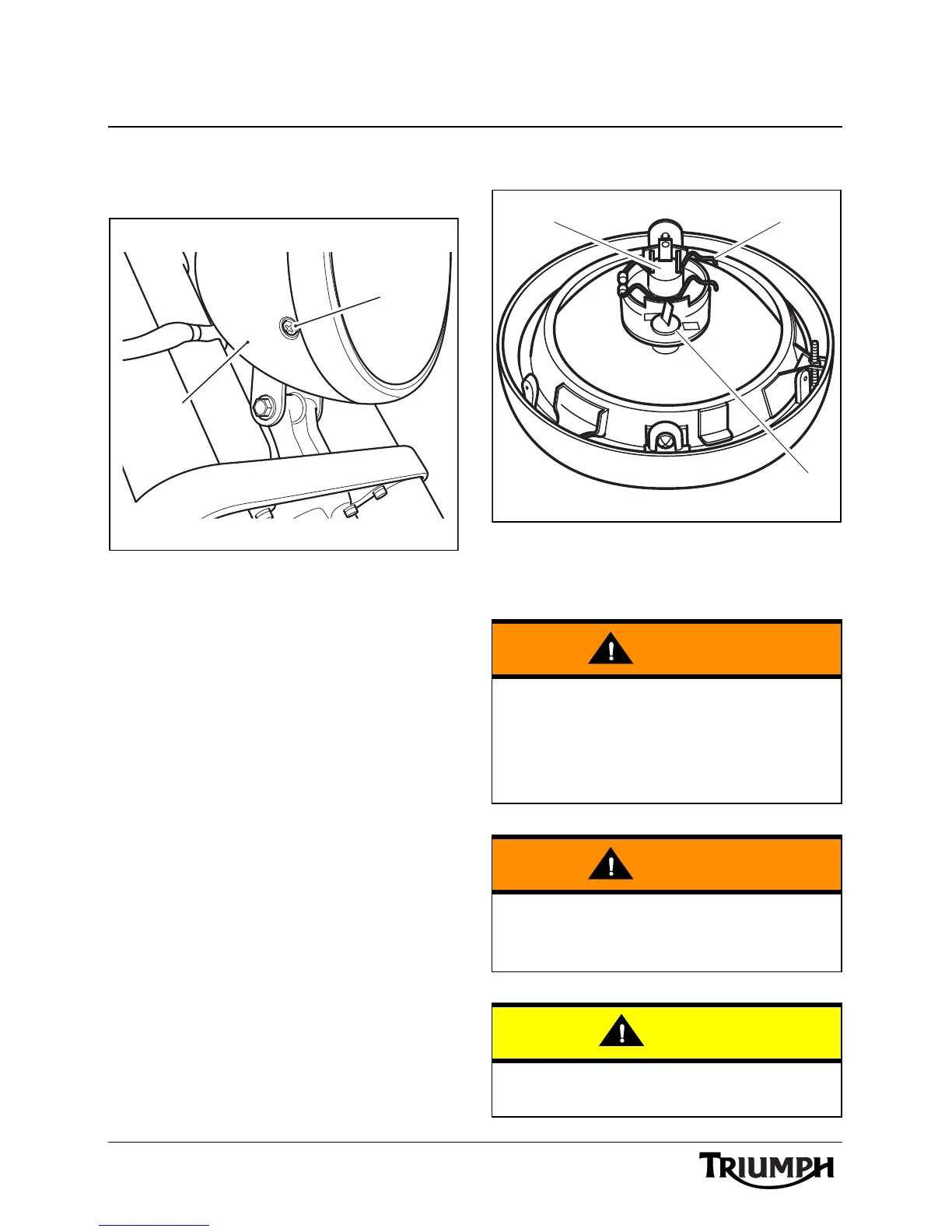

Triumph Speedmaster User Manual

86
Maintenance and Adjustment
Headlight/Position Light Bulb
Replacement
1. Headlight rim screws
2. Headlight bowl
• Disconnect the battery, negative
(black) lead first.
• Remove the headlight rim screws.
• Detach the headlight and rim
assembly from the headlight bowl.
• While supporting the light unit,
disconnect the multi-pin electrical
connector from the headlight bulb
and the two spade connectors from
the position light.
• Remove the rubber dust cover.
• Unhook the headlight bulb's wire
retainer.
• The headlight bulb can now be
removed.
• To remove the position light bulb,
detach the bulb holder from the
headlight body and release the bulb.
• Installation is the reversal of removal.
1. Wire retainer
2. Headlight bulb
3. Position light
cebs
1
2
Warning
Do not reconnect the battery until the
assembly process has been completed.
Premature battery reconnection could
result in ignition of the battery gases
causing risk of injury.
Warning
The bulb becomes hot during use. Always
allow sufficient time for the bulb to cool
before handling.
Caution
When reconnecting the battery, connect
the positive (red) lead first.
T908049
1
2
3

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
