Triumph Speedmaster User Manual

66
Maintenance and Adjustment

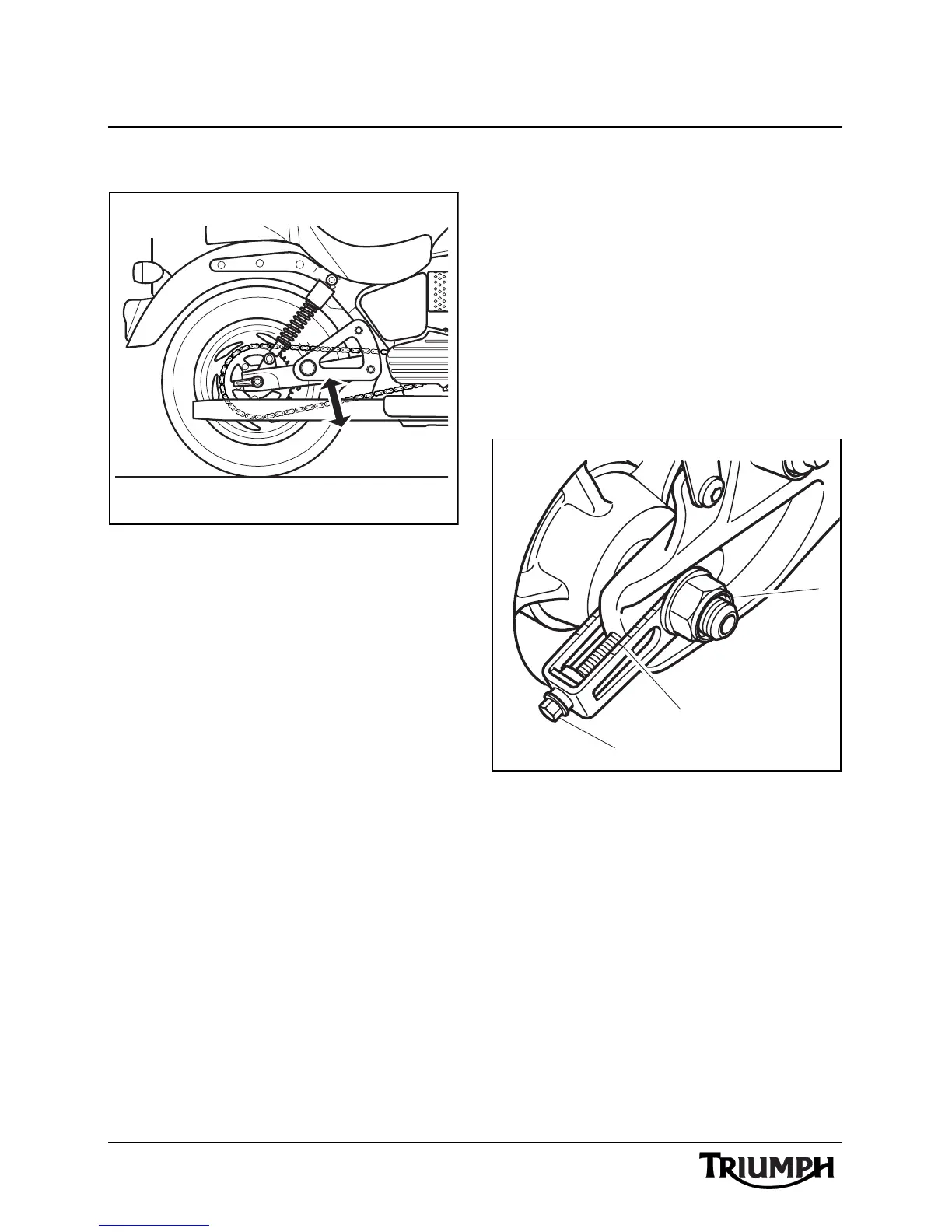

Chain Free-Movement
1. Maximum movement position
Inspection
• Support the motorcycle on a firm,
level surface with the side stand.
• Rotate the rear wheel to find the
position where the chain is tightest,
and measure the vertical movement
of the chain midway between the
sprockets.
• The vertical movement of the drive
chain must be 35 - 45 mm.
Adjustment
• If the chain free-movement
measurement is incorrect,
adjustments must be made as
follows:
• Loosen the wheel spindle nut.
• Moving both adjusters by an equal
amount, turn the adjuster bolts
clockwise to increase chain
free-movement and anti-clockwise to
reduce chain free-movement.
1. Rear wheel spindle nut
2. Adjusters
3. Wheel alignment markings
• When the correct amount of chain
free-movement has been set, tighten
the rear wheel spindle nut to
110 N m .
• Tighten the adjusters, anti-clockwise,
to 2Nm.
• Ensure that the wheel alignment
markings fall in the same position on
both sides of the motorcycle. Adjust
as necessary if incorrect.
1
cebt
T908036
1
2
3

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
