Triumph Speedmaster User Manual

83
Maintenance and Adjustment
Battery Installation
• Ensure the Engine Control Module
(ECM) and its rubber cover are
correctly located behind the battery.
• Place the battery onto the battery
tray taking care not to touch the
terminals to the motorcycle.
• Reconnect the battery leads, positive
(red) lead first.

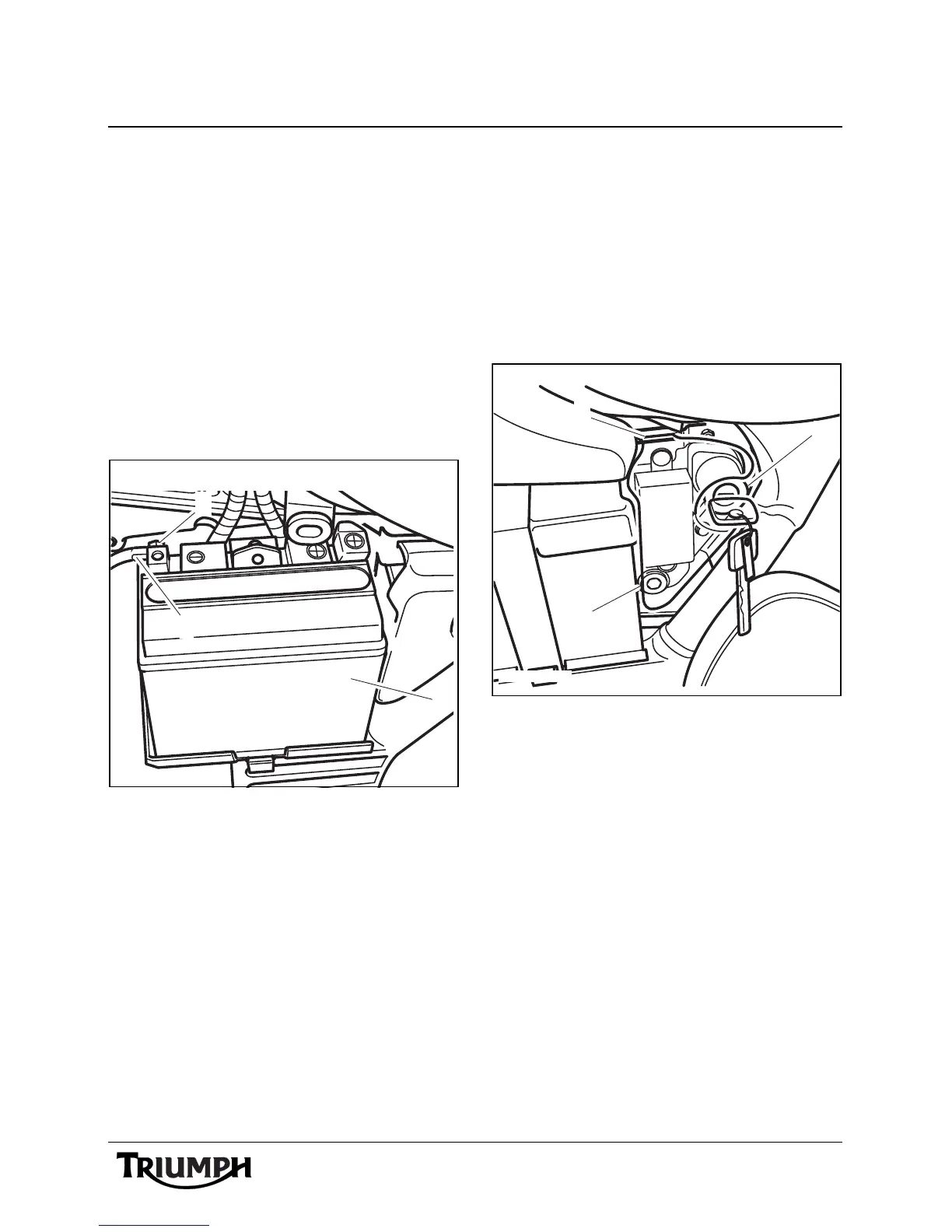

• Ensure the negative battery lead is
installed to the rear of battery
terminal as shown below.
1. Battery
2. Negative lead
3. Negative terminal fixing
• Apply a light coat of grease to the
terminals to prevent corrosion.
• Cover the positive terminal with the
protective cap.
• Fit the battery cover and assemble
the battery strap. Tighten the battery
strap fixing to 9 Nm.
• Assemble the airbox cover and
finisher, tightening all fixings to
3Nm. Ensure the airbox cover stud
is correctly located.
Fuses
Fuse Location
To access the fuses, ease the ignition switch
finisher outwards from the bottom. Once free
of its retaining grommet, hinge the cover
upwards and detach from the slot in the
bracket.
1. Ignition switch cover
2. Retaining grommet
3. Bracket slot
T908045cUSA
3
1
2
FUSE
T908046USA
1
2
3

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
