Triumph Speedmaster User Manual

27
General Information

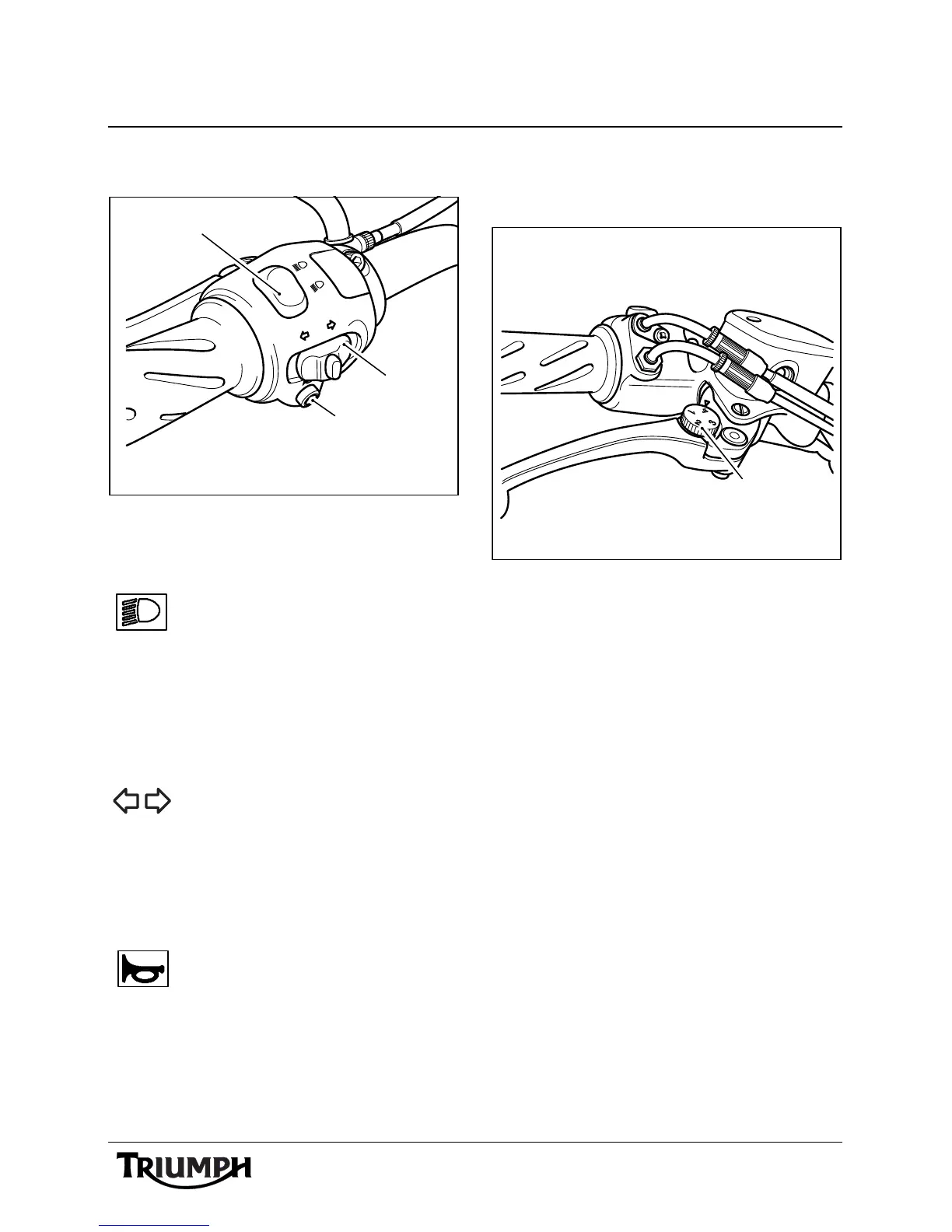

Left Handlebar Switches
1. Headlight dip switch
2. Direction indicator switch
3. Horn button
Headlight Dip Switch
High or low beam can be selected
with the headlight dip switch. To
select high beam, push the switch forward. To
select low beam, push the switch rearwards.
When the high beam is turned on, the high
beam warning light will illuminate.
Direction Indicator Switch
When the indicator switch is
pushed to the left or the right and
released, the corresponding indicator flashes.
To turn off the indicators, push and release
the button in the centre of the switch.
Horn Button
When the horn button is pushed,
with the ignition switch turned to
the ON position, the horn will sound.
Brake and Clutch Lever
Adjusters
1. Lever adjuster wheel
An adjuster is fitted to the front brake and
clutch levers on both models. The adjusters
allow the distance from the handlebar to the
lever to be changed to one of four positions,
to suit the span of the operator's hands.
To adjust a lever, push the lever forward and
turn the adjuster wheel to align one of the
numbered positions with the triangular mark
on the lever pivot (seen aligned with
position 4 above).
The distance from the hand grip to the
released lever is shortest when set to number
four and longest when set to number one.
cbmk
1
2
3
cbmi
1

Triumph Speedmaster Specifications

General

Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0:1
Max Torque	106 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Rear Tyre	150/80 R16
Engine Type	Liquid-cooled, 8-valve, SOHC, 270°
Max Power	76.9 bhp (57.4 kW) @ 6, 100 rpm
Exhaust	2-into-2 exhaust system with twin silencers
Frame	Tubular steel
Rear Suspension	Twin shocks, adjustable preload
Front Brake	Twin 310mm discs, 2-piston floating calipers
Rear Brake	Single 255mm disc, 2-piston floating caliper
Front Wheel	32-spoke
Rear Wheel	32-spoke
Tank Capacity	12 L
