Tightening Clamp on Outer Joint

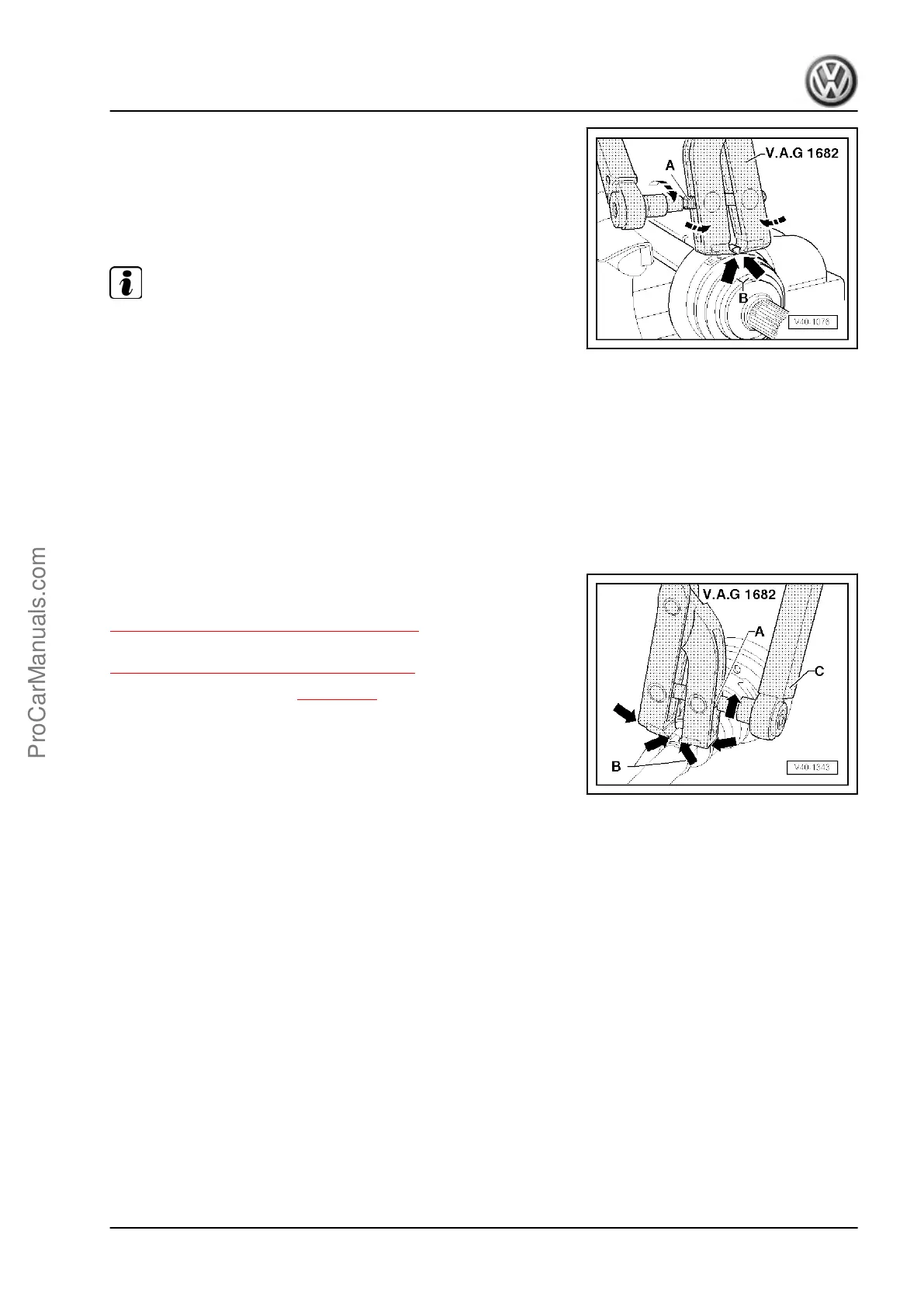

– Attach the CV Joint Boot Clamp Tool - VAG1682- as illustra‐
ted. Be sure that edges of clamping pliers are seated in
corners -arrows B- of hose clamp.
– Tension clamp by turning spindle with a torque wrench (do not
tilt clamp tool).
Note
♦
The hard material of the CV boot (compared to rubber) makes
it necessary to use a stainless steel hose clamp. It is only pos‐
sible to tighten the hose clamp with Clamping Pliers -
VAG1682A- .
♦
Tightening specification: 25 Nm
♦
Use torque wrench -C- with adjustment range 5 to 50 Nm (for
example Torque Wrench 5-50Nm - VAG1331- ).
♦
Make sure the threads on the spindle -A- on the pliers move
easily. Lubricate with MOS 2 grease, if necessary.
♦
If it does not move freely, for example due to dirt in thread, the
required clamp tension will not be achieved at the specified
torque.
Tensioning Clamp on Small Diameter
Outer CV joint, checking. Refer to
⇒ “11.3 Outer CV Joint, Checking”, page 105 .
Inner CV joint, checking. Refer to
⇒ “11.4 Inner CV Joint, Checking”, page 105 .
CV joint, checking function ⇒ page 107 .
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
13. Drive Axle with CV Joint VL107 (attached) 119
