Rear Axle, Front and All Wheel Drive Comfort Suspension Heavy Duty Suspen‐
sion
Maximum permissible difference be‐
tween both sides
maximum 30' maximum 30'
Total toe (at prescribed camber) +20′ ± 10′ +20′ ± 10′
Maximum permissible deviation
from direction of rotation
maximum 20′ maximum 20′
Standing height 389 ± 10 mm 399 ± 10 mm
8.8 Alignment Specified Values for Vehicles
with Multi-Link Rear Suspension
Specified values valid for all engine versions.
♦ PR number explanations. Refer to ⇒ page 275 .

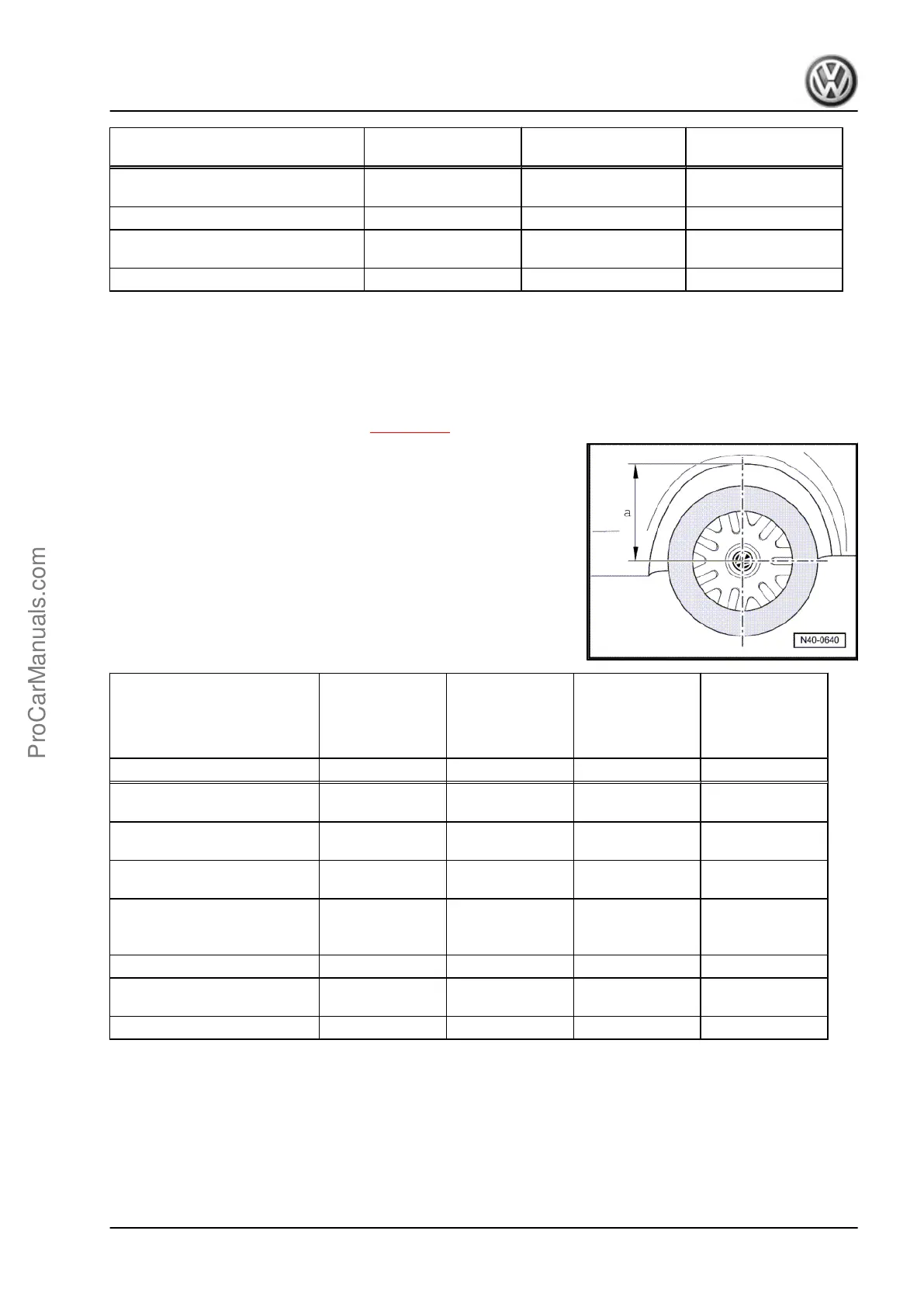

Standing heights listed in the tables refer to dimension -a-.
Front Axle Basic Suspen‐
sion
Sport Suspen‐
sion
except 18”
Wheels
(Mexico)
Sport Suspen‐
sion
with 18" Wheels
Sport Suspen‐
sion
with 18" Wheels
PR Numbers 2UA 2UC 2UC+1JE/1JK 2UC+1JS
Total toe (wheels not press‐
ed)
10′ ± 10′ 10′ ± 10′ 10′ ± 10′ 10′ ± 10′
Camber (in straight-ahead
position)
-30′ ± 30′ -30′ ± 30′ -40′ ± 30′ -40′ ± 30′
Maximum permissible differ‐
ence between both sides
maximum 30' maximum 30' maximum 30' maximum 30'
Toe-out angle
1)
with steering
wheel turned 20° to left and
right
1°19′ ± 20′ 1°19′ ± 20′ 1°31′ ± 20′ 1°19′ ± 20′
Caster 7° 37′ ± 30′ 7° 37′ ± 30′ 7° 53′ ± 30′ 7° 37′ ± 30′
Maximum permissible differ‐
ence between both sides
maximum 30' maximum 30' maximum 30' maximum 30'
Standing height 379 ± 10 mm 379 ± 10 mm 364 ± 10 mm 379 ± 10 mm
1)
The toe angle difference can also be indicated negatively in
alignment computer, depending on manufacturer.
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
8. Wheel Alignment 267
