7 - Left Wheel Bearing Housing
8 - Nut
❑ 20 Nm + 90° turn
❑ Always replace if removed
❑ M12 x 1.5
❑ Self-locking
9 - Bolt
❑ 50 Nm + 90° turn
❑ Note the tightening sequence ⇒ page 320 .
❑ Always replace if removed
10 - Subframe
11 - Right Wheel Bearing Housing

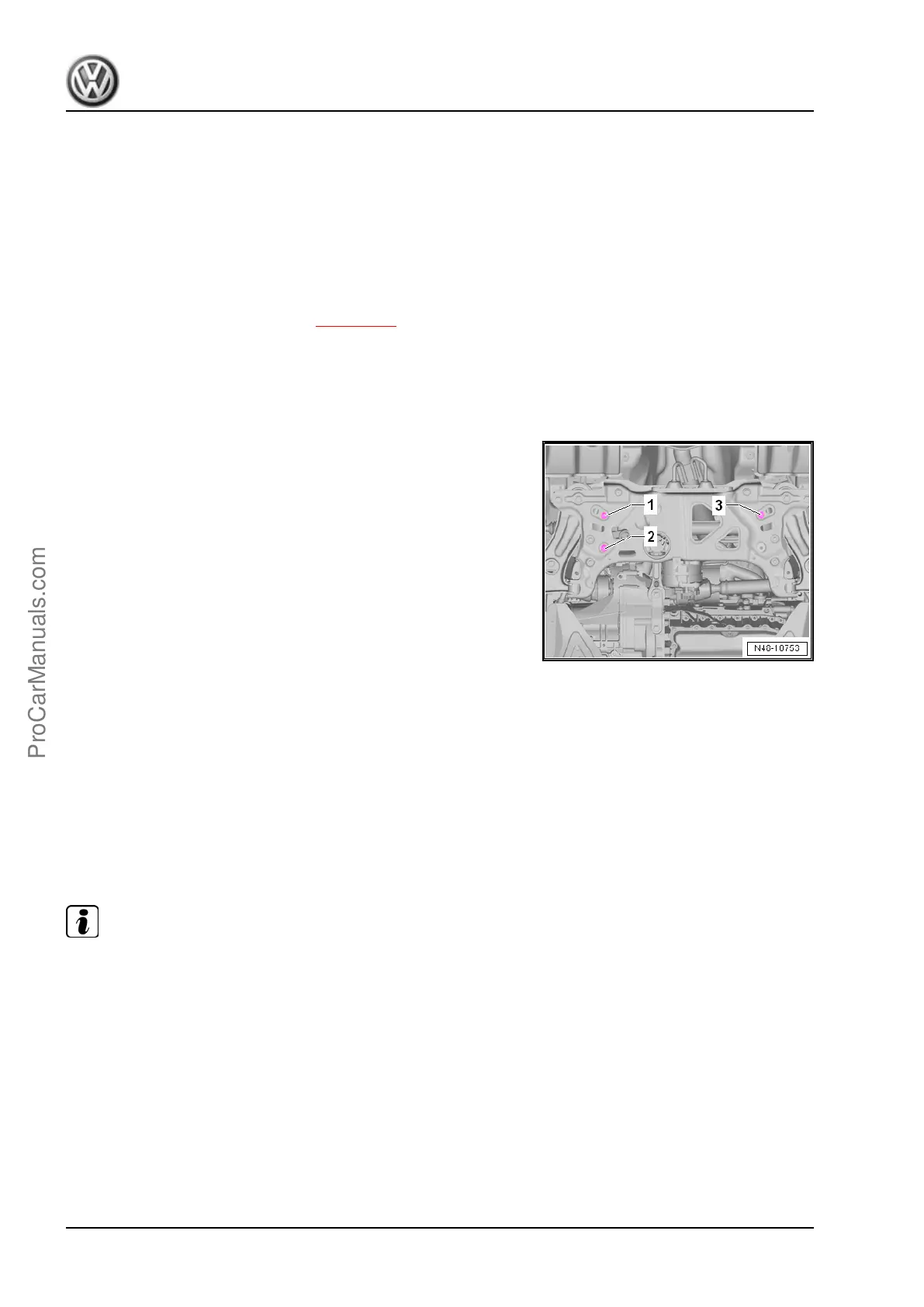

Tightening Sequence for the Steering Gear to the Subframe
♦ Thread the bolts -1, 2 and 3- on one after the other by hand.
♦ Pre-tighten the bolts -1 and 2- one after the other to 10 Nm.
♦ Tighten the bolts -1, 2 and 3- one after the other to the tight‐
ening specification.
6.2 Steering Gear, Removing and Installing
Special tools and workshop equipment required
♦ Puller - Ball Joint - T10187-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
♦ Engine and Gearbox Jack - VAS6931-
Perform the Following
Removing
Note
Correct any faults stored in the DTC memory before replacing the
steering gear using the Vehicle Diagnostic Tester .
– Connect the Vehicle Diagnostic Tester and start “Guided Fault
Finding”.
Follow the instructions on the screen.
– Turn the steering wheel in the straight position and remove the
ignition key so that the steering wheel lock engages.
Vehicles with “Keyless Access” Keyless Locking and Starting
System
– Switch the ignition off and open the driver door so the steering
wheel lock engages.
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
320 Rep. Gr.48 - Steering
