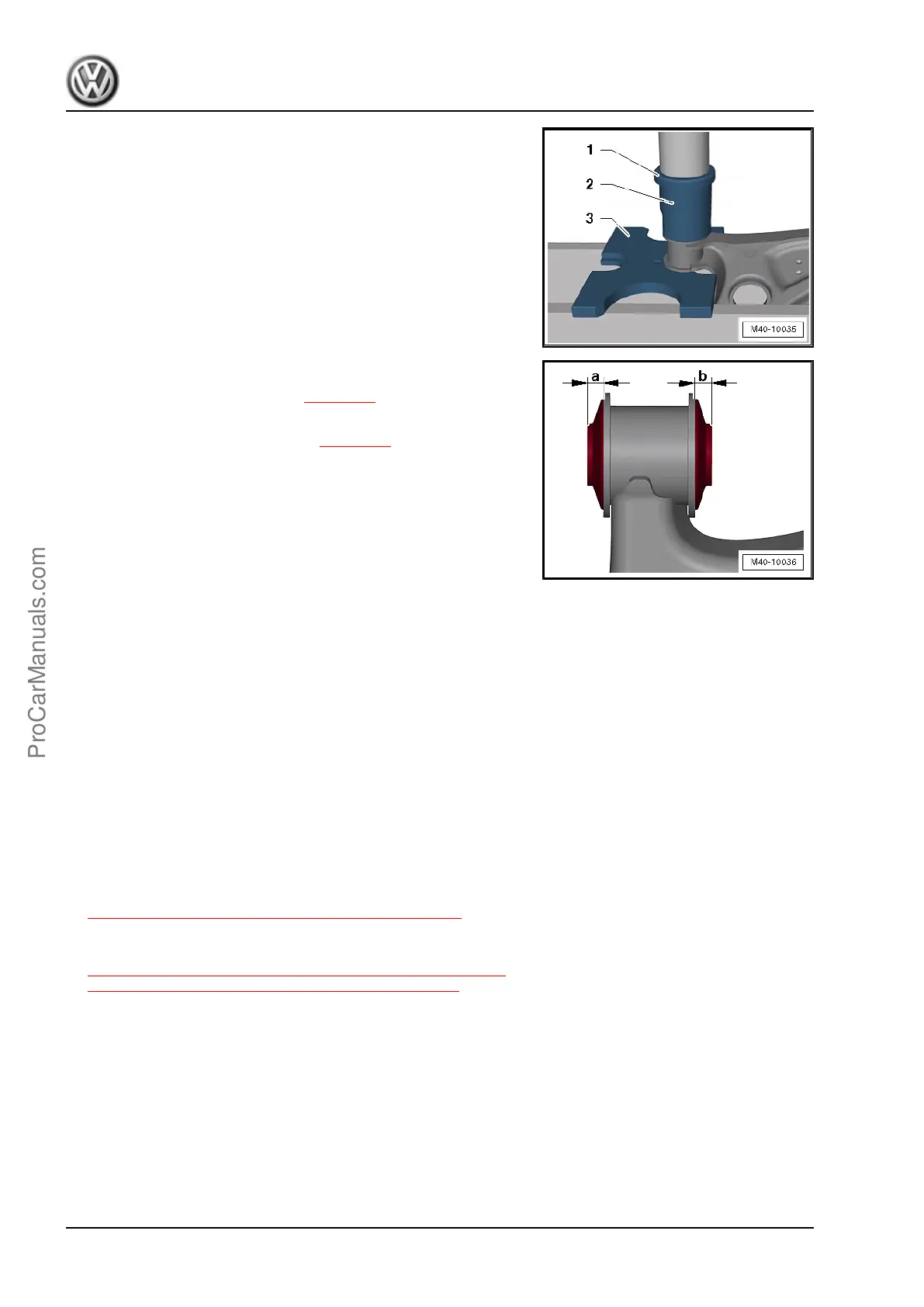

– Press the bushing back slightly in the control arm.
1 - Press Piece - Multiple Use - VW412-
2 - Wishbone Rubber Mount Assembly Tool -Tube - T10219/1-
3 - Press Plate - VW402-
Dimensions -a and b- must be identical.
– Install the control arm. Refer to ⇒ page 43 .
–
Install the control arm (left side of the vehicle with DSG
®
or
automatic transmission). Refer to ⇒ page 47 .
5.7 Control Arm Rear Bonded Rubber
Bushing, Replacing
Special tools and workshop equipment required
♦ Bearing Installer - Front Wheel Bearing - 2039-
♦ Front Subframe Mount Kit - 3372-
♦ Press Plate - VW401-
♦ Press Piece - Rod - VW407-
♦ Press Piece - Multiple Use - VW412-
♦ Hydraulic Press - Bushing Assembly Tool Kit - T10230-
♦ Press Piece - Rear Track Control Arm - T10453-
Perform the Following
– Remove the control arm. Refer to
⇒ “5.4 Control Arm, Removing and Installing”, page 43 .
– Remove the control arm (left side of the vehicle with DSG or
automatic transmission). Refer to
⇒ “5.5 Control Arm, Removing and Installing, Left Side of Ve‐
hicle with DSG® or Automatic Transmission”, page 44 .
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
50 Rep. Gr.40 - Front Suspension
