12.2 Overview - Power Steering Pump
Power steering pump is not designed to be serviced. If there are
customer complaints, the cause must be determined using a
pressure and leak test. If there is a malfunction, replace the power
steering pump.
Note
♦
Always replace seals.
♦
Do not reuse fluid you have drained.
♦
If power steering fluid is low in the reservoir, check the steering system for leaks.
♦
If there are leaks in the area of the line connections, the lines/connections must first be inspected for leaks,
tightened as necessary and wiped dry.
♦
Replacement power steering pumps from the distribution center do not contain any fluid. Before installing,
fill pump with Hydraulic Fluid - G 004 000 M2- and turn pump by hand. Otherwise, the power steering pump
may be noisy when operating or may even be damaged.
♦
Fluid type: Hydraulic Fluid - G 004 000 M2 -

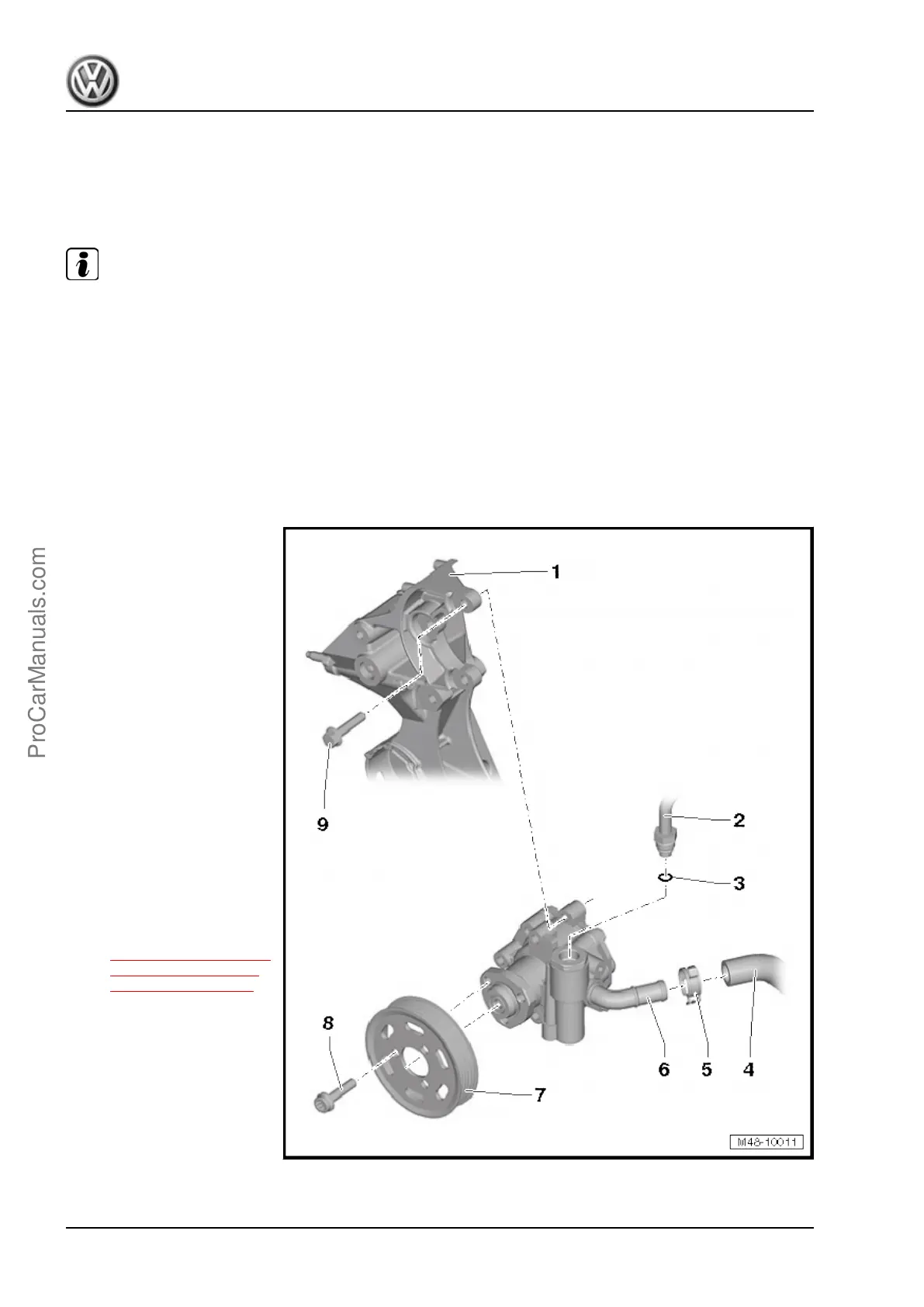

1 - Bracket
2 - Pressure Line
❑ 32 Nm
3 - Seal
❑ Always replace
4 - Suction Hose
❑ Pay attention to the in‐
stalled position of the
power steering pump:
the marking on the in‐
take hose must line up
with the marking on the
power steering pump.
5 - Spring Clamp
❑ Install on the marking on
the intake hose.
6 - Power Steering Pump
❑ Allocation. Refer to the
Parts Catalog.
❑ Removing and instal‐
ling. Refer to
⇒ “12.3 Power Steering
Pump, Removing and
Installing ”, page 367 .
❑ Fill with oil prior to instal‐
lation
7 - Belt Pulley
8 - Bolt
❑ 22 Nm
9 - Bolt
❑ 22 Nm
❑ Quantity: 3
