16 Subframe Attachments, BlueMotion
Vehicles
⇒ “16.1 Overview - Subframe Attachments, BlueMotion Vehicles”,
page 224
⇒ “16.2 Rear Axle Trim Panel, Removing and Installing”,
page 225

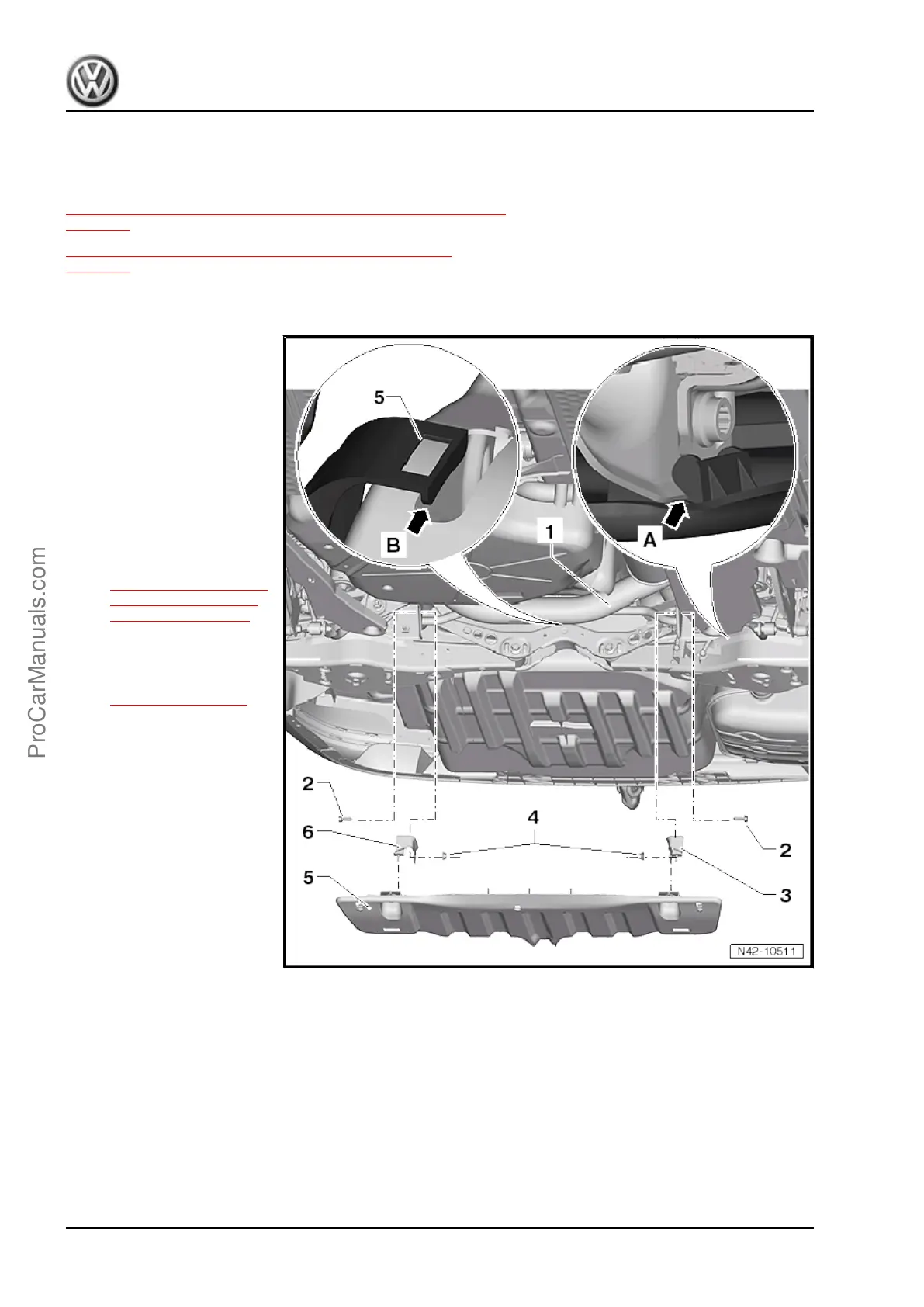

16.1 Overview - Subframe Attachments, BlueMotion Vehicles
1 - Subframe
2 - Bolt
3 - Angle Bracket
❑ With pop rivet
4 - Nut
❑ 20 Nm
5 - Trim panel
❑ Tighten the nuts to 2
Nm.
❑ Removing and instal‐
ling. Refer to
⇒ “16.2 Rear Axle Trim
Panel, Removing and
Installing”, page 225
❑ When installing, the trim
panel must be attached
from underneath to the
subframe -item 1-
⇒ Item 1 (page 224)
-arrow A- and attached
from the top -arrow B-
6 - Angle Bracket
❑ With pop rivet
Jetta 2011 ➤ , Jetta 2013 ➤
