8 - Clamp
❑ Always replace if removed
❑ Tensioning. Refer to
⇒ Fig. ““Tightening the Tensioning Clamp on the Smaller Diameter on the Inner/Outer Joint”“ ,
page 132
9 - Drive Axle
10 - Clamp
❑ Always replace if removed
❑ Tensioning. Refer to
⇒ Fig. ““Tightening the Tensioning Clamp on the Smaller Diameter on the Inner/Outer Joint”“ ,
page 132
11 - CV Boot for Triple Roller Joint
❑ Check for tears and scuffing
12 - Clamp
❑ Always replace if removed
❑ Tensioning. Refer to
⇒ Fig. ““Tightening the Tensioning Clamps on the Larger Diameter on the Inner Joint.”“ , page 131 .
13 - Triple Roller Star with Rollers
The chamfer -arrow- faces the drive axle splines.
14 - Circlip
❑ Always replace if removed
❑ Insert in shaft groove
15 - Internal Multi-Point Bolt
❑ First tighten diagonally to 10 Nm, then tighten diagonally again to the tightening specification
❑ 70 Nm
❑ M10 x 23
16 - Joint

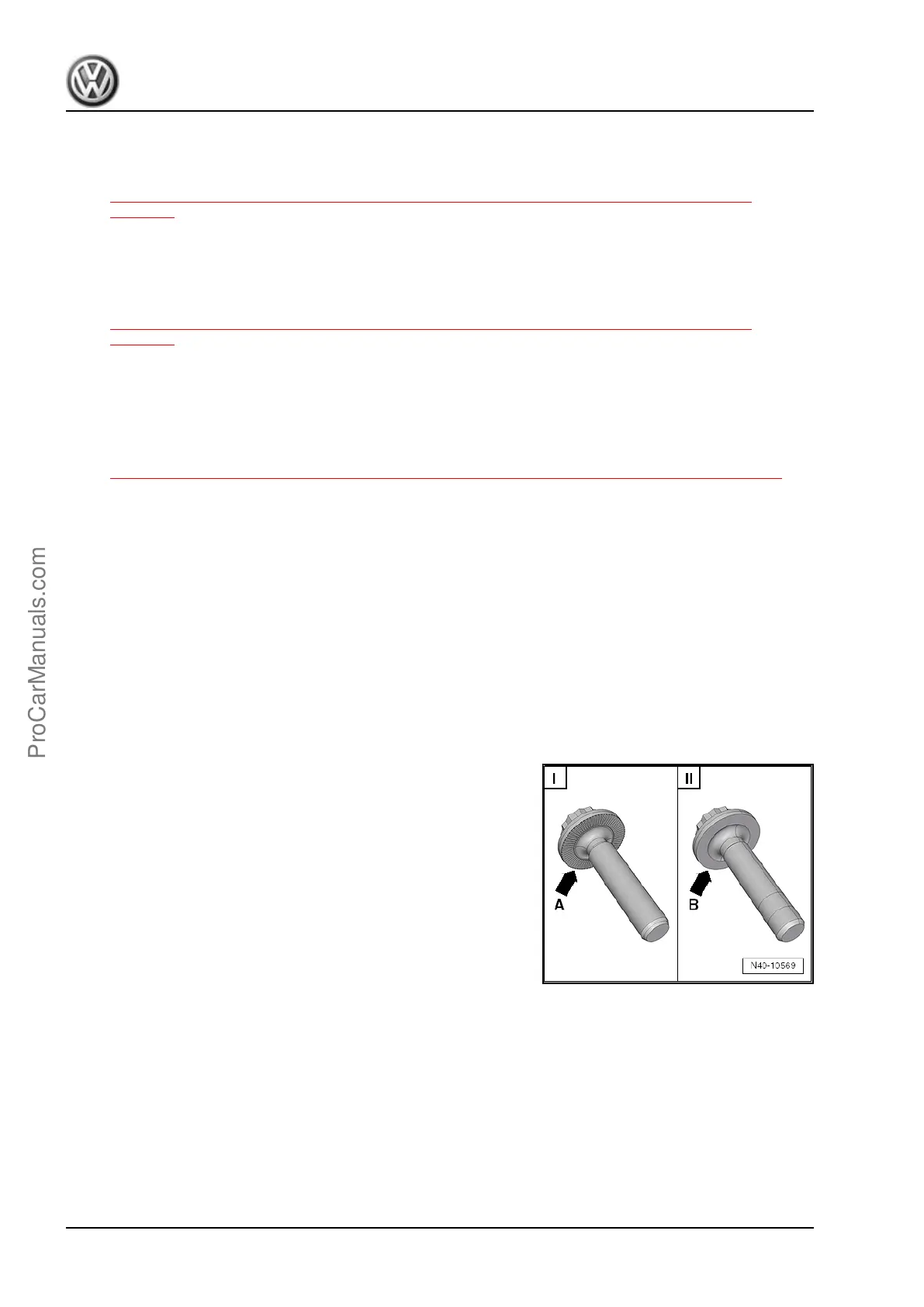

Difference Between A Twelve-Point Bolt with Ribs and A Twelve-
Point Bolt without Ribs
The contact surfaces -arrow A- and -arrow B- are different on the
two-point bolts.
I - Twelve-point bolt with ribs -arrow A-
II - Twelve-point bolt without ribs -arrow B-
15.2 Drive Axle with Triple Roller Joint
AAR3300i, Disassembling and Assem‐
bling
Special tools and workshop equipment required
♦ Press Plate - VW401-
♦ Press Plate - VW402-
♦ Press Piece - Rod - VW408A-
♦ Press Piece - Rod - VW411-
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
128 Rep. Gr.40 - Front Suspension
