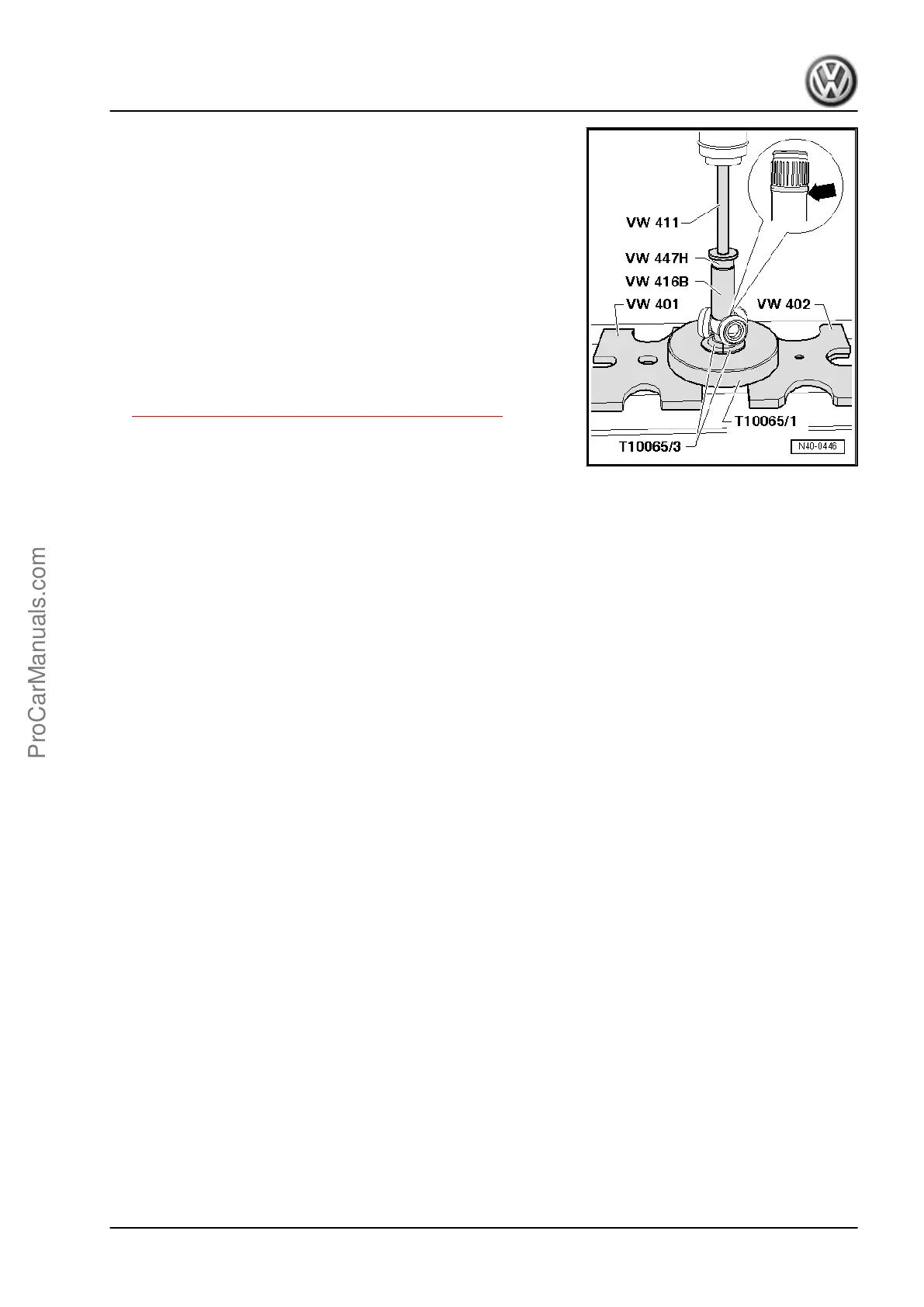

– Connect triple roller star on shaft and press on up to stop.
– Make sure the pressure does not increase above 3.0 t.
– If necessary, coat the splines of the drive axle and triple roller
star with Lubricant - G 052 142 A2- .
– Insert the circlip while making sure it sits properly.
– Press half of the joint grease from the repair set into the triple
roller joint.
– Slide joint piece over rollers and secure.
– Press the other half of the drive axle grease from the repair kit
into the rear side of the triple roller joint.
– Install CV boot.
– Push the protective boot onto the joint and mount the clamp
⇒ Fig. ““Tightening Clamp On Outer Joint”“ , page 113
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
14. Drive Axle with Triple Roller Joint AAR2600i 125
