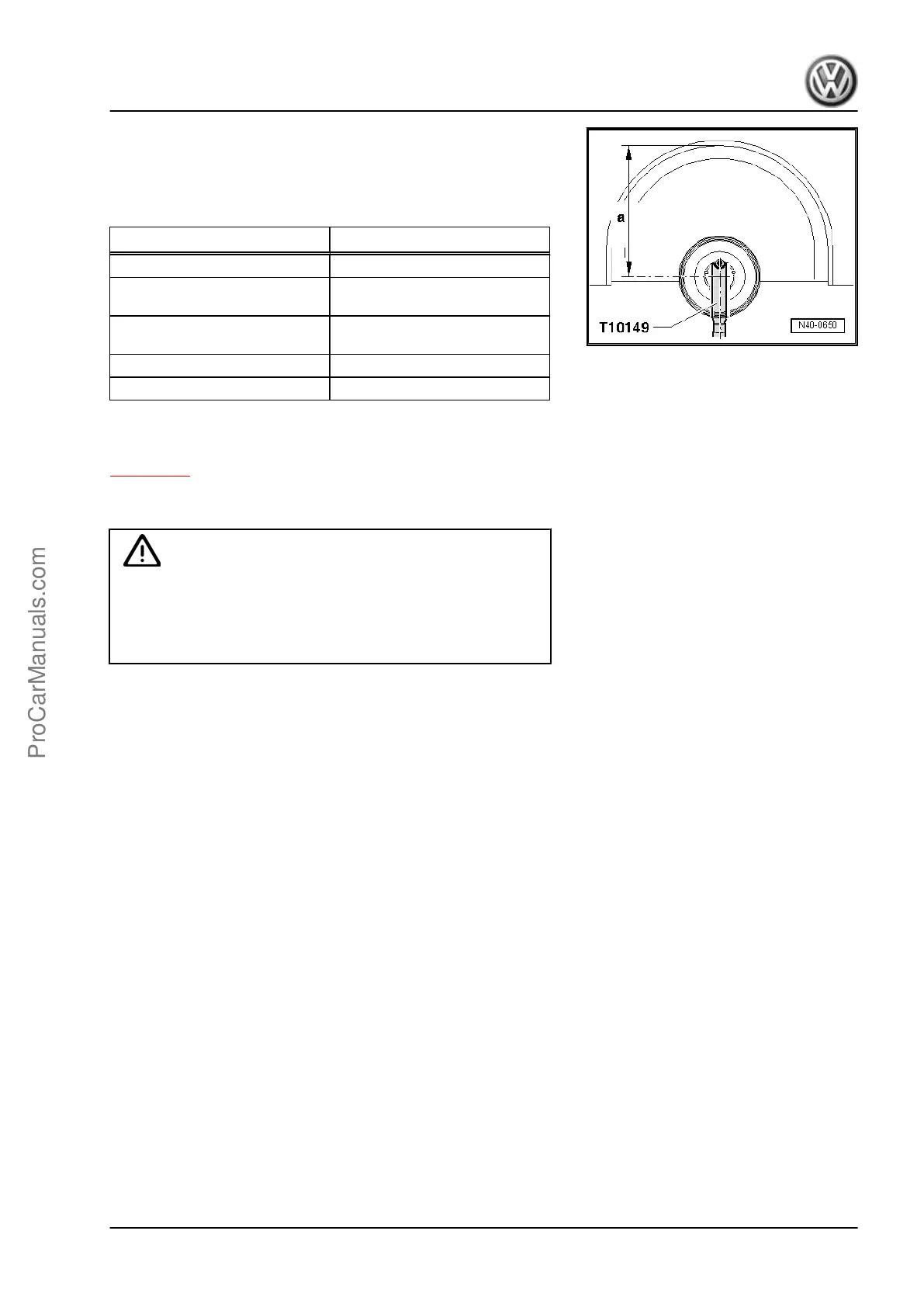

The applicable bolts/nuts must only be tightened when dimension
-a- is between the center of the wheel hub and the lower edge of
the wheel housing has been reached.
The dimension -a- is dependent on the height of the installed
suspension:
Chassis
1)
Height -a- in mm
Basic suspension (2UA) 379 ± 10 mm
Sport suspension NAR/EU/
Rest of World (2UC)
364 ± 10 mm
Sport suspension Mexico
(2UC)
379 ± 10 mm
Comfort suspension (2UD) 389 ± 10 mm
Heavy duty suspension (2UB) 399 ± 10 mm
1)
The type of vehicle suspension is indicated on the vehicle data
label. The suspension is indicated by a PR number. Allocation of
the PR number according to the suspension. Refer to
⇒ page 275 .
– Lift the wheel bearing housing using the Engine and Gearbox
Jack - VAS6931- until dimension -a- is reached.
WARNING
♦ Do not lift or lower the vehicle when the Engine and Gear‐
box Jack - VAS6931- is under the vehicle.
♦ Do not leave the Engine and Gearbox Jack - VAS6931-
under the vehicle any longer than necessary.
– Tighten the applicable bolts and nuts.
– Lower the wheel bearing housing.
– Remove the Engine and Gearbox Jack - VAS6931- from under
the vehicle.
– Remove the Engine/Gearbox Jack Adapter - Wheel Hub Sup‐
port - T10149-
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
2. Rear Axle Curb Weight (Twist Beam Rear Suspension) 147
