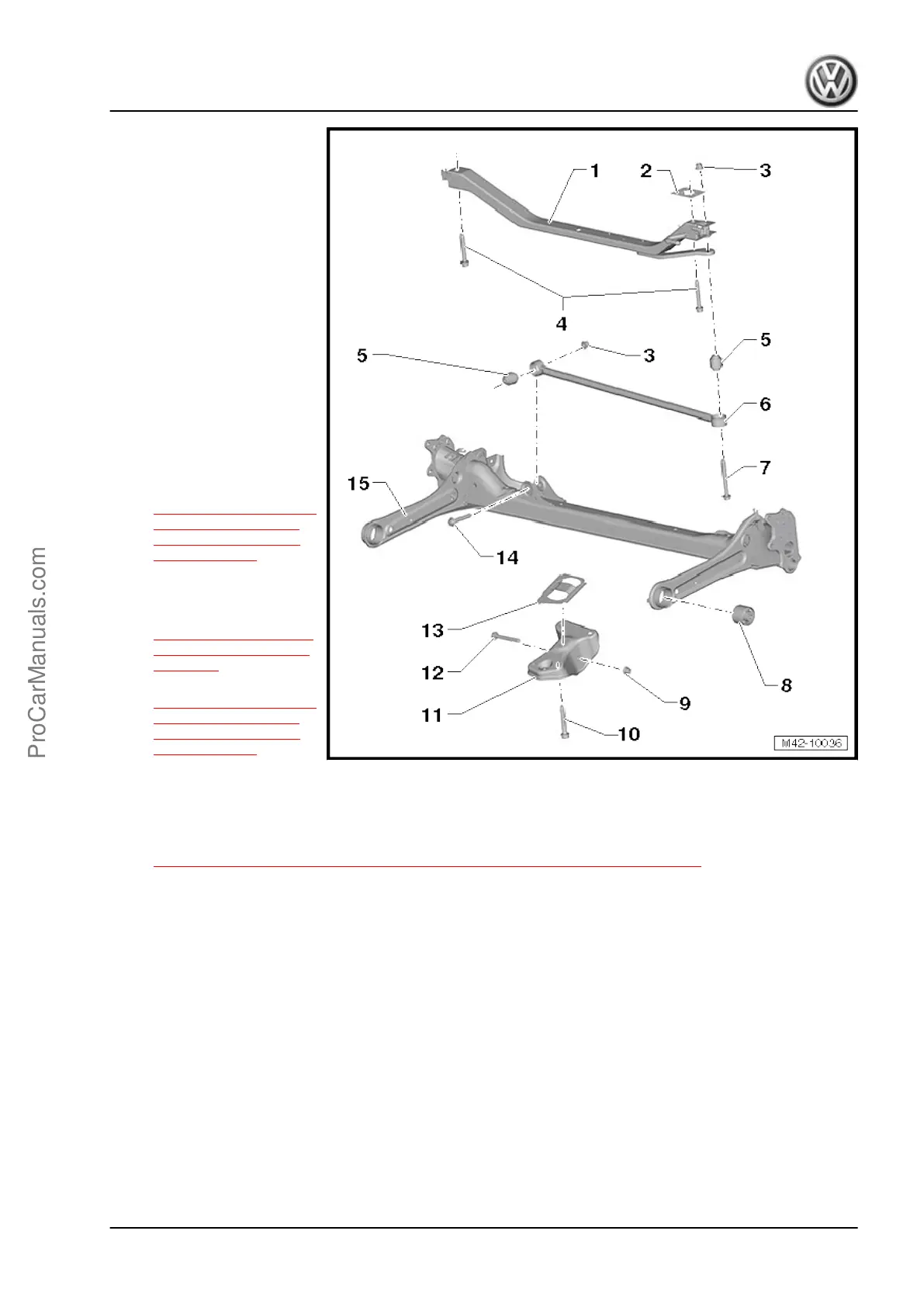

1 - Subframe
2 - Intermediate Plate
3 - Nut
❑ 70 Nm + 90° turn
❑ Always replace if re‐
moved
4 - Bolt
❑ Follow the tightening se‐
quence:
♦ 1. 90 Nm +90° turn
♦ 2. Loosen 360°
♦ 3. 90 Nm + 180° turn
❑ Always replace if re‐
moved
5 - Bonded Rubber Bushing
❑ Removing and instal‐
ling. Refer to
⇒ “4.5 Crossbrace Bon‐
ded Rubber Bushing,
Removing and Instal‐
ling”, page 159 .
6 - Crossbrace
❑ Removing and instal‐
ling. Refer to
⇒ “4.4 Crossbrace, Re‐
moving and Installing”,
page 158 .
❑ Servicing. Refer to
⇒ “4.5 Crossbrace Bon‐
ded Rubber Bushing,
Removing and Instal‐
ling”, page 159 .
7 - Bolt
❑ Always replace if removed
8 - Bonded Rubber Bushing
❑ Removing and installing. Refer to
⇒ “4.3 Axle Beam Bonded Rubber Bushing, Removing and Installing”, page 155 .
9 - Nut
❑ 70 Nm + 90° turn
❑ Always replace if removed
10 - Bolt
❑ 50 Nm + 45° turn
❑ Always replace if removed
11 - Mounting Bracket
12 - Bolt
❑ Always replace if removed
13 - Cover
14 - Bolt
❑ Always replace if removed
15 - Axle Beam
❑ No paint or dirt on contact surface and threaded hole for the axle stub
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
4. Axle Beam, Subframe, Crossbrace (Torsion Beam) 151
