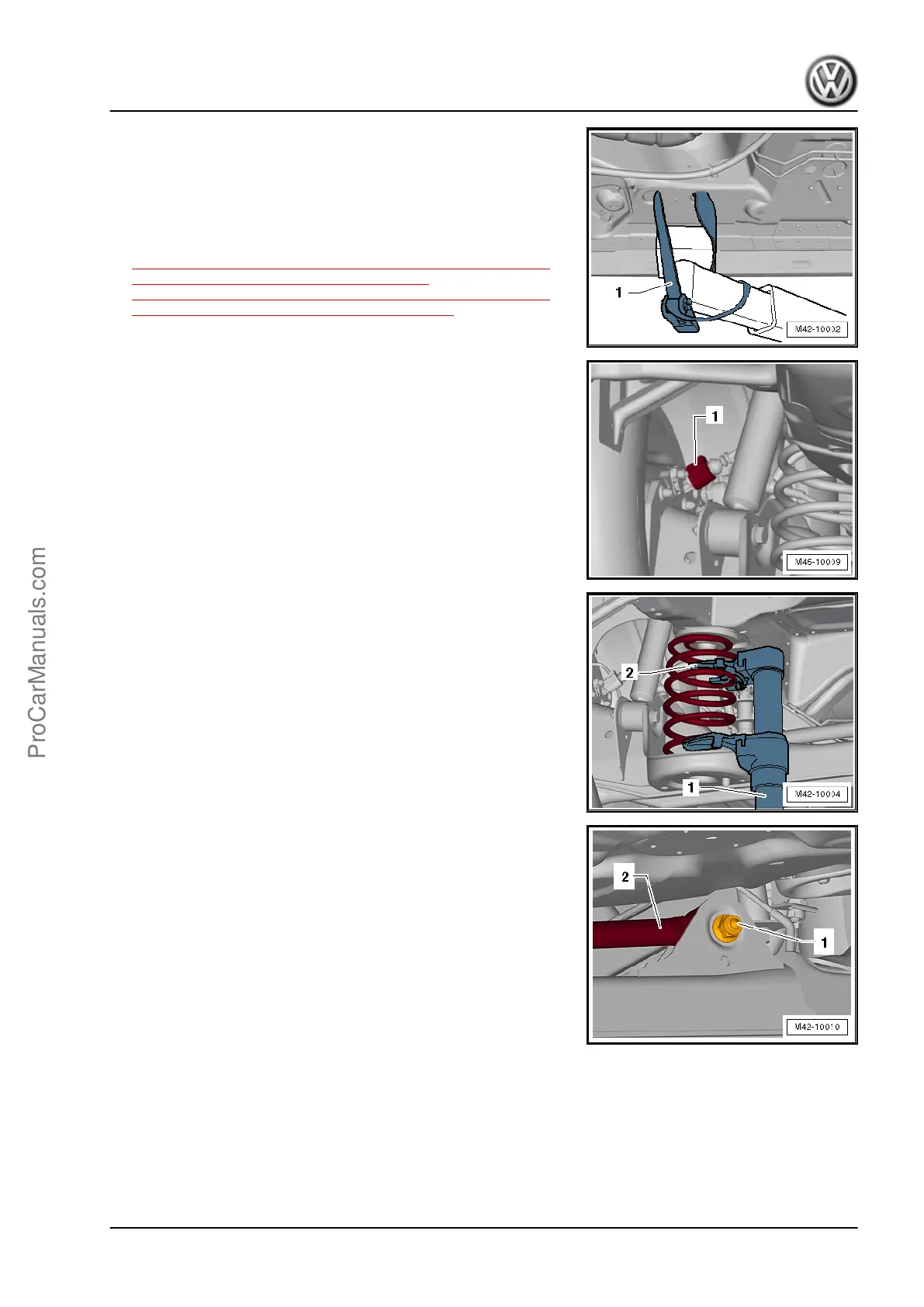

– Remove the plug from the longitudinal member and install the
Tensioning Strap - T10038- .
1 - Tensioning Strap - T10038-
The vehicle must be tied down on both the left and right sides
using the Tensioning Strap - T10038- .
– Check the axle beam trailing arm. Refer to
⇒ “8.4 Axle Beam Trailing Arm (Torsion Beam), Checking with
Measuring Square VAS241001 ”, page 260 or
⇒ “8.5 Axle Beam Trailing Arm (Torsion Beam), Checking with
Crankshaft Holding Fixture VW801 ”, page 263
– Disconnect the connector -1- from the speed sensor.
– Insert the Spring Compressor Kit - Spring Tensioner -
VAG1752/1- -1-.
1 - Spring Compressor Kit - Spring Tensioner - VAG1752/1-
2 - Spring Compressor Kit - Spring Retainer with Inserts -
VAG1752/3A-
– Tension the coil spring and remove it.
– Place the Engine and Gearbox Jack - VAS6931- under the
axle beam.
– Push the axle beam up until the crossbrace -2- is horizontal.
– Remove the threaded connection -1-.
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
4. Axle Beam, Subframe, Crossbrace (Torsion Beam) 153
