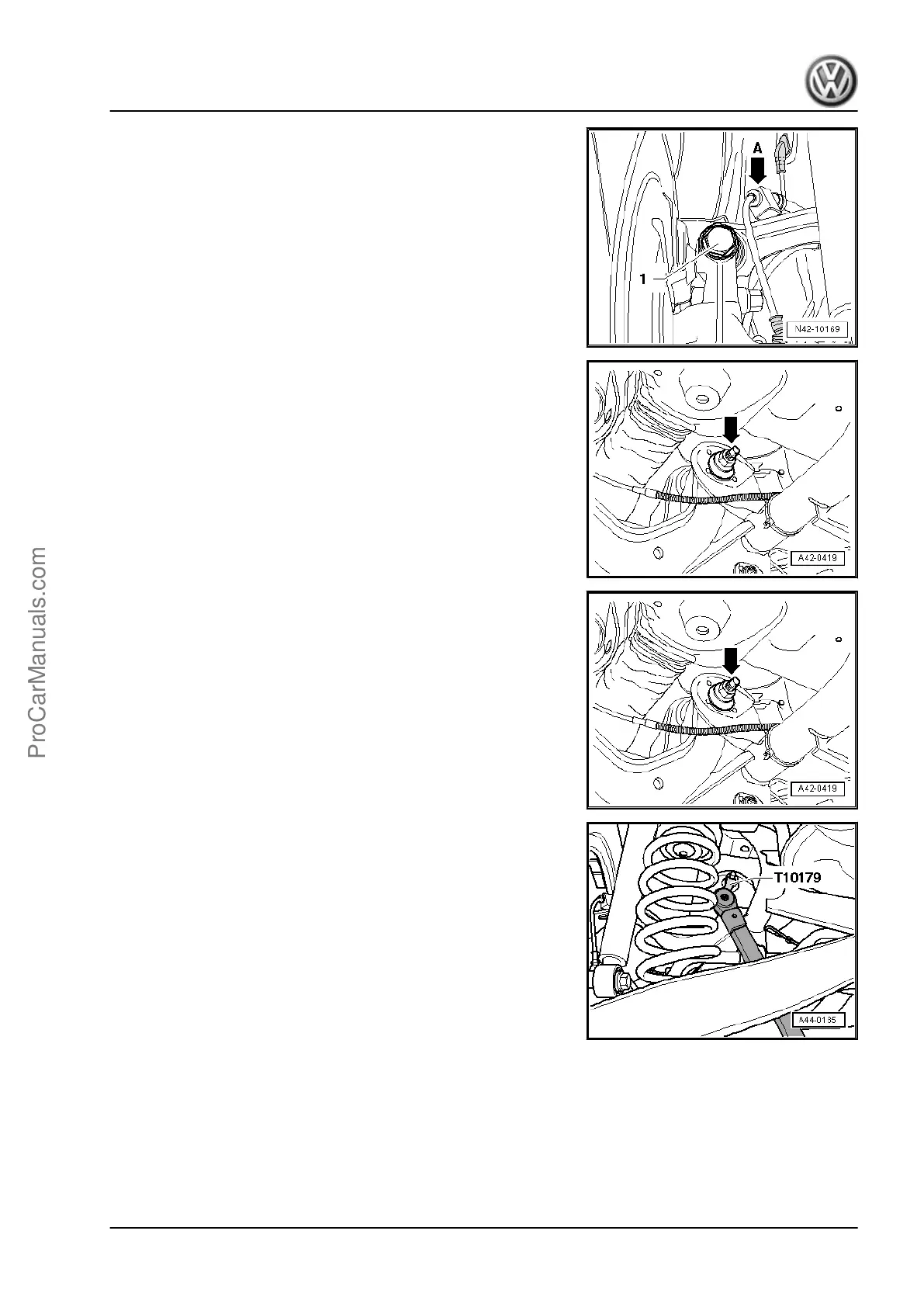

– Disengage the speed sensor wire -arrow A- on top of the
transverse link.
– Remove the bolt -1-.
– Mark the location of the centering bolt -arrow- in relation to the
subframe, for example using a felt-tip pen.
– Remove the bolt -arrow-.
– Remove upper transverse link.
Installing
– Insert the upper transverse link in the vehicle and tighten the
bolts by hand.
Only Bolt on Transverse Link if Dimension “a” is Reached.
– Tighten the new nut -arrow- to the specification.
– Use the Insert Tool - 18mm - T10179- for this.
Tighten the nut to 80 Nm using the Insert Tool - 18mm - T10179- .
– Observe the mark made to indicate the location of the center‐
ing bolt in relation to the subframe.
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
12. Subframe, Transverse Link and Tie Rod (Multi-Link Suspension) 195
