♦ Subframe Bushing Tool Kit - 3301-
♦ Bearing Installer - Control Arm - 3346-
♦ Bearing Installer - Carrier Bearing - 3350-
♦ Subframe Bushing Assembly Tool Kit - Thrust Piece -
T10356/5-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
Removing
– Loosen the wheel bolts.
– Raise the vehicle.
– Remove the wheel.
– Remove the coil spring. Refer to
⇒ “14.2 Coil Spring, Removing and Installing”, page 215 .

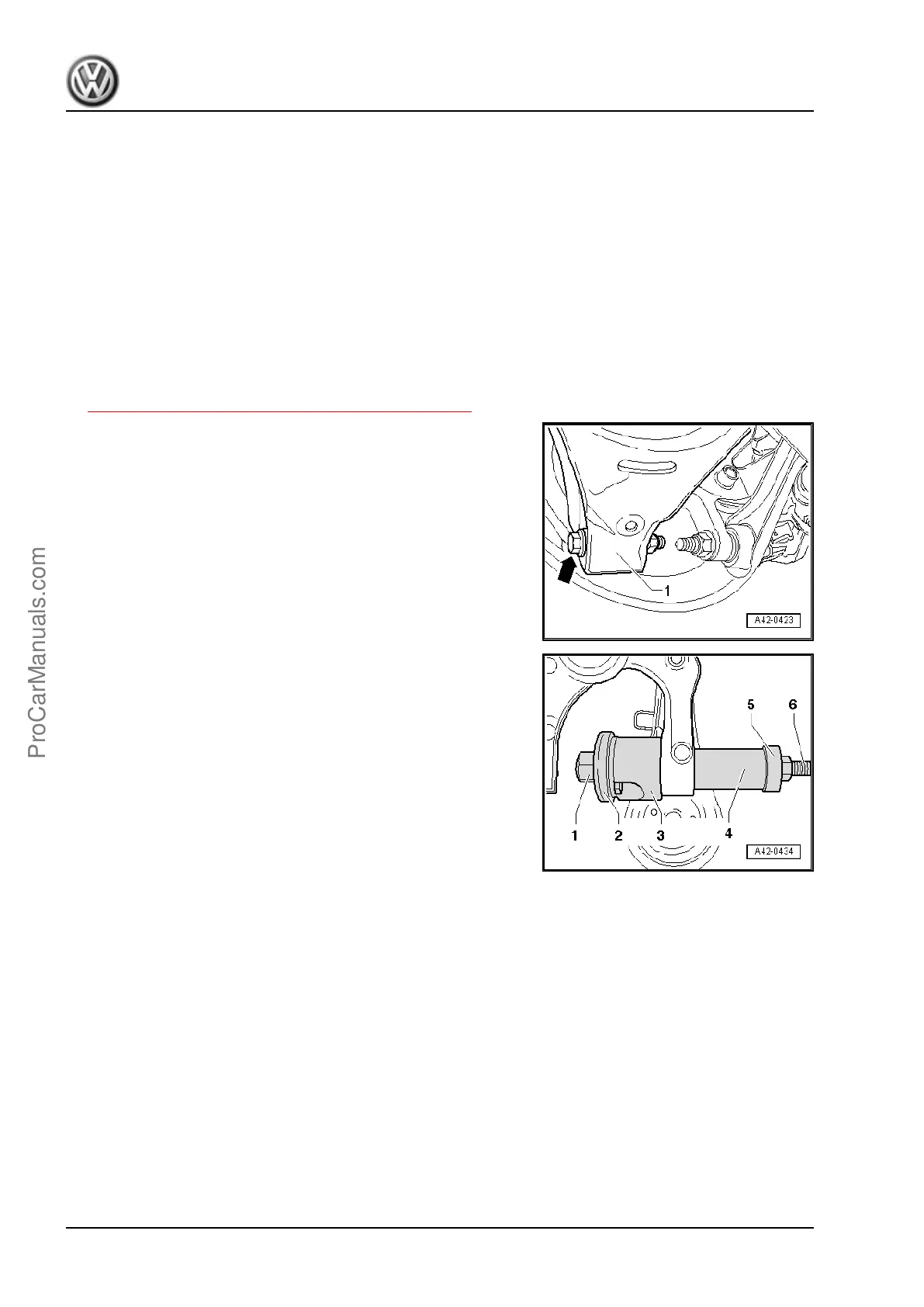

– Remove bolt -arrow- for lower transverse link -1-.
Pressing Out Bonded Rubber Bushing
– Mount the tools as shown in the illustration.
1 - Control Arm Bearing Installer - Nut - 3346/3-
2 - Subframe Bushing Tool Kit - 3301-
3 - Subframe Bushing Tool Kit - Assembly Tool 3 - 3301/3-
4 - Press Tube - 41-501-
5 - Bearing Installer - Carrier Bearing - Thrust Piece - 3350/1-
6 - Bearing Installer - Component - 3346/2-
– Rotate the spindle to remove the bonded rubber bushing.
Installing
Installing Bonded Rubber Bushing
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
206 Rep. Gr.42 - Rear Suspension
