♦ Spring Compressor Kit - VAG1752-
♦ Spring Compressor Kit - Spring Retainer w/Inserts -
VAG1752/4-
♦ Spring Compressor Kit - Adapter Blocks - VAG1752/9- , not
illustrated
Perform the Following
Removing
– Loosen the wheel bolts.
– Raise the vehicle.
– Remove the wheel.

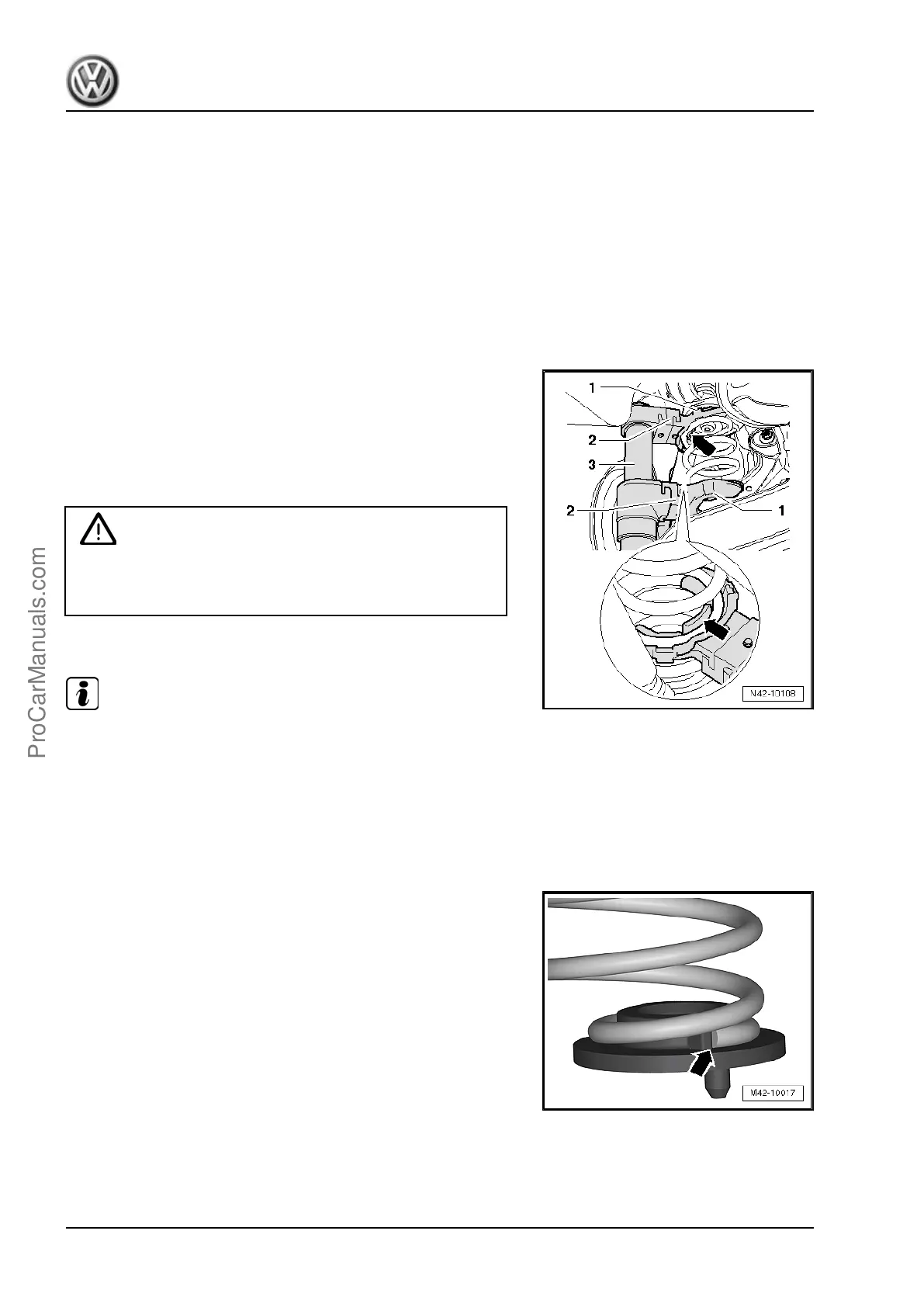

– Insert the Spring Compressor Kit - Spring Tensioner -
VAG1752/1- -3-.
1 - Spring Compressor Kit - Spring Retainer w/Inserts -
VAG1752/4-
2 - Spring Compressor Kit - Adapter Blocks - VAG1752/9-
3 - Spring Compressor Kit - Spring Tensioner - VAG1752/1-
WARNING
Make sure the coil spring is seated correctly in the Spring
Compressor Kit - Spring Retainer with Inserts - VAG1752/3A-
-2- (danger of accident).
– Tension the coil spring and remove it.
Note
Use a wrench or a reversible ratchet to tighten the spring com‐
pressor.
Installing
Install in reverse order of removal. Note the following:
– Make sure the washer is not damaged.
– Replace the washer if necessary.
– Install the washer on the coil spring.
The spring start -arrow- must touch the stop of lower spring sup‐
port.
– Install the spring and the spring support.
– Spring seat has a pin on bottom.
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
216 Rep. Gr.42 - Rear Suspension
