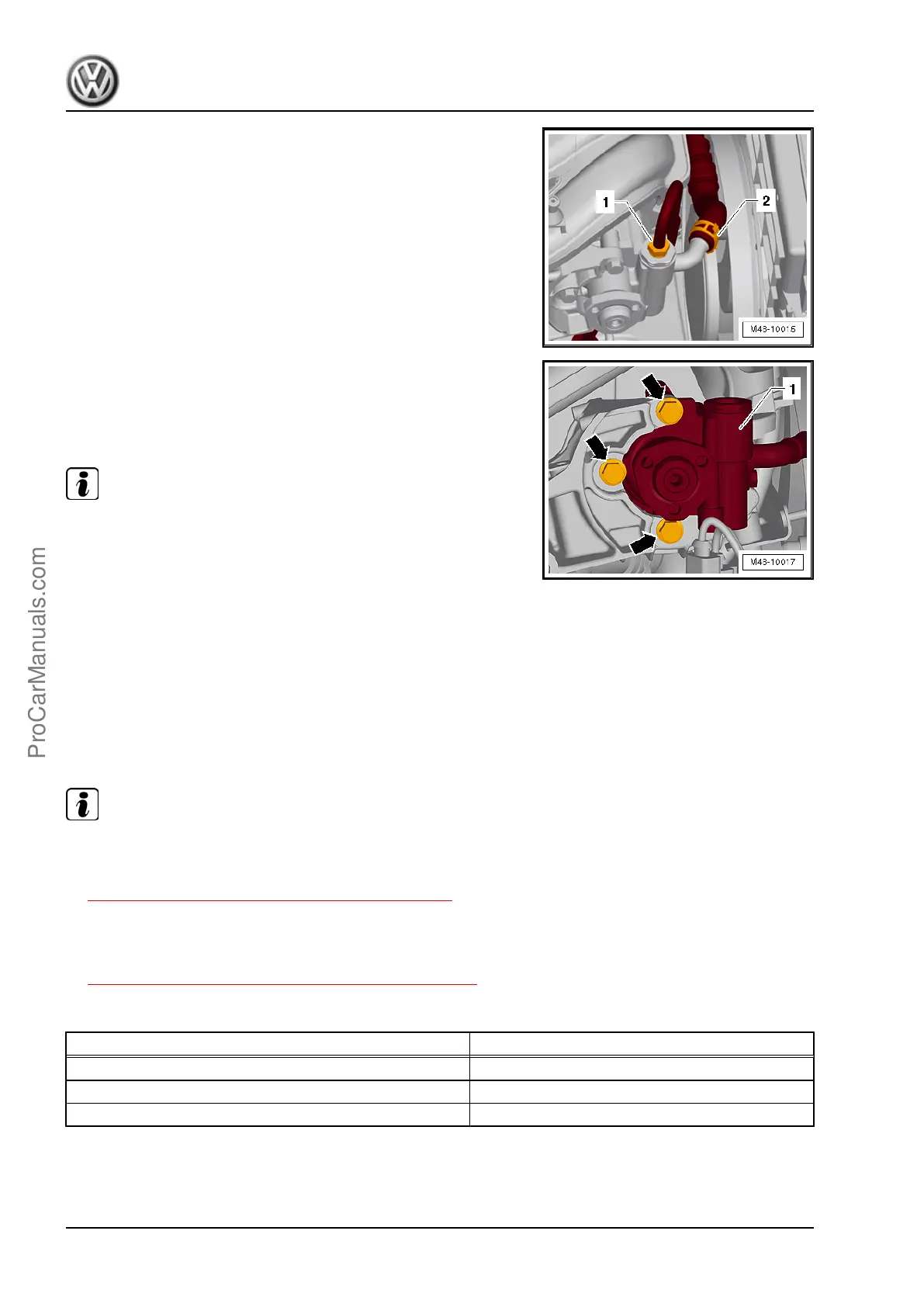

– Remove the nut -1- and the pressure line from the power
steering pump.
– Open the spring clamp and remove the suction hose -2- from
the power steering pump.
– Remove bolts -arrows- and remove power steering pump -1-
from retainer.
Installing
Install in reverse order of removal. Note the following:
Note
♦ Replace the gaskets and seals.
♦ Before installing the new power steering pump on the intake
side, fill the Hydraulic Fluid and install it by hand until oil drains
out on the high pressure side.
♦ Hose supports and hoses must be free of oil and grease before
installation.
♦ Secure all hose connections with new hose clamps. Refer to
the Parts Catalog.
– Install the power steering pump.
– Install the ribbed belt, and then check ribbed belt alignment.
Refer to ⇒ Rep. Gr. 13 ; Cylinder Block, Belt Pulley Side;
Ribbed Belt, Removing and Installing .
Note
Make sure the ribbed belt fits correctly in the belt pulley.
– Bleed steering system. Refer to
⇒ “18.1 Power Steering System, Bleeding”, page 376 .
– Check the hydraulic fluid level and fill if necessary. Refer to
⇒ Maintenance ; Booklet 20.1 ; Procedure Descriptions .
– Check the steering system for leaks. Refer to
⇒ “18.2 Steering System, Checking for Leaks”, page 376 .
Tightening Specification
Component Tightening Specification
Ribbed belt pulley to power steering pump 22 Nm
Pressure line to power steering pump 32 Nm
Power steering pump to bracket 23 Nm
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
368 Rep. Gr.48 - Steering
