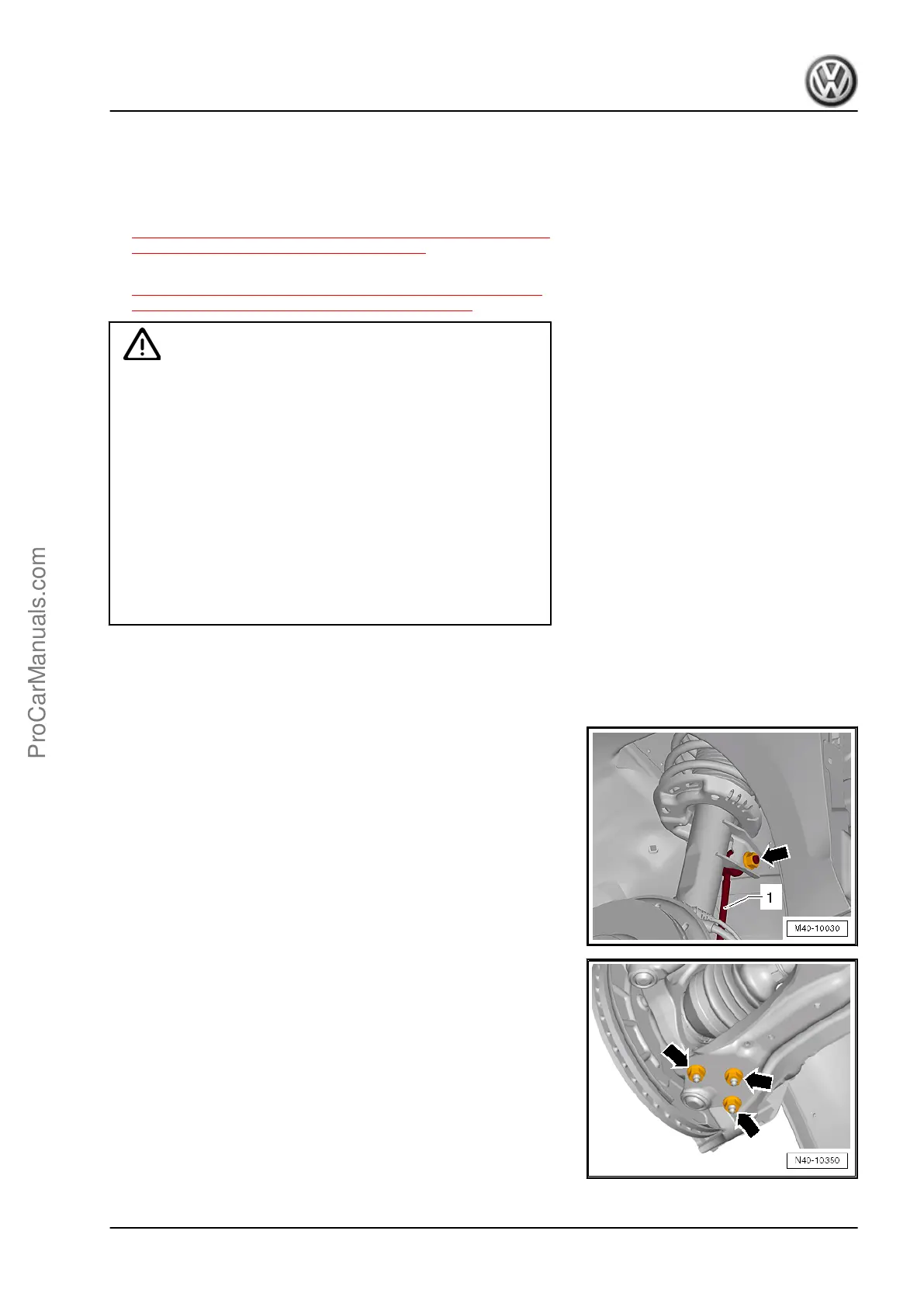

Perform the Following
Removing
– Loosen the drive axle bolt on the wheel hub:
♦ Twelve-point bolt with ribs. Refer to
⇒ “9.1 Twelve-Point Bolt with Ribs, Loosening and Tightening,
Drive Axle Threaded Connection”, page 77 .
♦ Twelve-point bolt without ribs. Refer to
⇒ “9.2 Twelve-Point Bolt without Ribs, Loosening and Tight‐
ening, Drive Axle Threaded Connection”, page 78 .
Caution
The wheel bearing must not be under load when the drive axle
threaded connection on the wheel side is loose.
If the wheel bearings are under the load of the vehicle weight,
the wheel bearing will be damaged. This reduces the service
life of the wheel bearings.
The drive axle bolt may be loosened maximum 90° when the
vehicle is standing on its wheels.
Vehicles without a drive axle must not be moved, otherwise the
wheel bearing will be damaged. If a vehicle must be moved,
be sure to note the following:
♦ Install an outer joint in place of the drive axle.
♦ Tighten the outer joint to 120 Nm.
– Loosen the wheel bolts.
– Raise the vehicle.
– Remove the wheel.
– Remove the nut -arrow- and the coupling rod -1- from the sus‐
pension strut.
– Disengage the wire for the ABS speed sensor from the sus‐
pension strut.
– Remove the nuts -arrows-.
– Remove the wheel bearing housing with the ball joint from the
control arm.
– Remove the drive axle outer joint from the wheel hub.
If the Drive Axle Cannot Be Pulled out of the Wheel Bearing, Then
the Drive Axle Can Be Pushed out of the Wheel Bearing Using
the Drive Shaft Remover - T10520- .
Jetta 2011 ➤ , Jetta 2013 ➤
Suspension, Wheels, Steering - Edition 08.2015
8. Suspension Strut 69
