Volkswagen Transporter 2016 User Manual

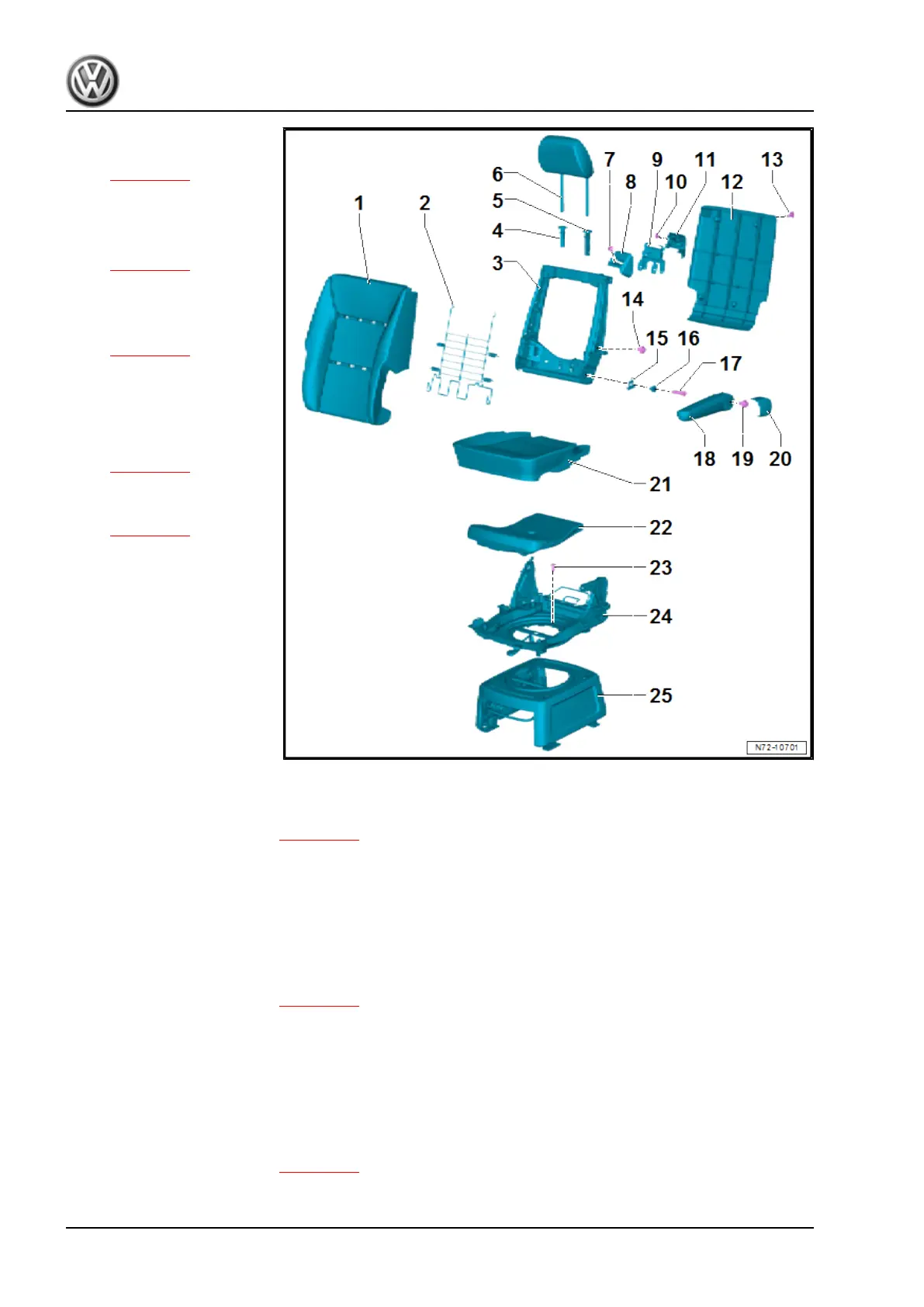

1 - Backrest padding
❑ Removing and installing
⇒ page 444
2 - Wire mat
3 - Backrest of individual seat
❑ Removing and installing
⇒ page 369
4 - Head restraint guide
❑ Adjustable
❑ Assembly overview
⇒ page 352
5 - Head restraint guide
❑ With push button for
head restraint, adjusta‐
ble
❑ Removing and installing
⇒ page 352
6 - Head restraint
❑ Assembly overview
⇒ page 360
7 - Bolt
❑ 2 Nm
8 - Front cover cap
❑ For belt guide
9 - Belt guide
❑ Secured with 4 pop riv‐
ets
10 - Bolt
❑ 2 Nm
11 - Rear cover cap
❑ For belt guide
12 - Backrest rear panel
❑ Removing and installing ⇒ page 369
13 - Bolts
❑ Qty. 2
❑ 3 Nm
14 - Bolt
❑ 20 Nm
15 - Relay lever
❑ Removing and installing ⇒ page 369
16 - Speed nut
17 - Bolt
❑ Qty. 2
❑ 55 Nm
18 - Armrest
❑ Left and right
❑ Removing and installing ⇒ page 392
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
348 Rep. gr.72 - Seat frames
