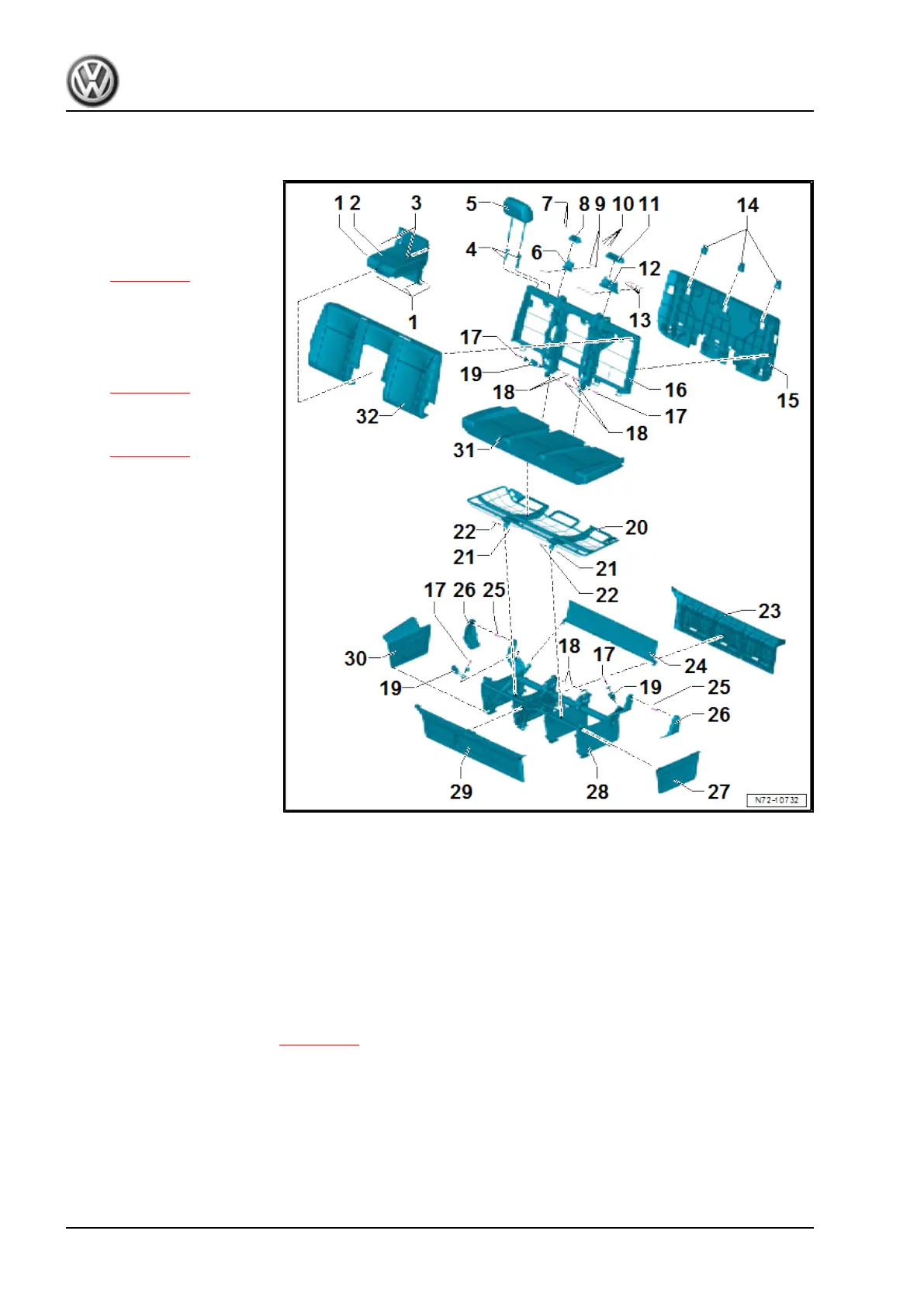

3.1.4 Assembly overview - bench seat / Multivan, 3-seat bench seat
1 - Clip
❑ Qty. 4
2 - Centre armrest
❑ Removing and installing
⇒ page 380
3 - Spreader rivet
❑ Qty. 2
4 - Head restraint guide
❑ Assembly overview
⇒ page 352
5 - Head restraint
❑ Assembly overview
⇒ page 360
6 - Belt guide
❑ Secured to backrest
frame with 4 pop rivets
7 - Bolts
❑ Qty. 2
❑ 2 Nm
8 - Cover
❑ For belt guide
9 - Pop rivet
❑ Qty. 4
10 - Bolts
❑ Qty. 4
❑ 2 Nm
11 - Cover
❑ For belt guide
12 - Belt guide
❑ Secured to backrest frame with 8 pop rivets
13 - Pop rivet
❑ Qty. 8
14 - Bracket
❑ Qty. 3
15 - Rear wall
❑ Secured to backrest frame
16 - Backrest frame
❑ Removing and installing ⇒ page 369
17 - Bolts
❑ Qty. 2
❑ 40 Nm
18 - Bolts for securing backrest
❑ Qty. 4
❑ 95 Nm
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
352 Rep. gr.72 - Seat frames
