3.1.3 Assembly overview - individual seats,
Easy Entry
Assembly overview - front backrest ⇒ page 350
Assembly overview - seat pan ⇒ page 350

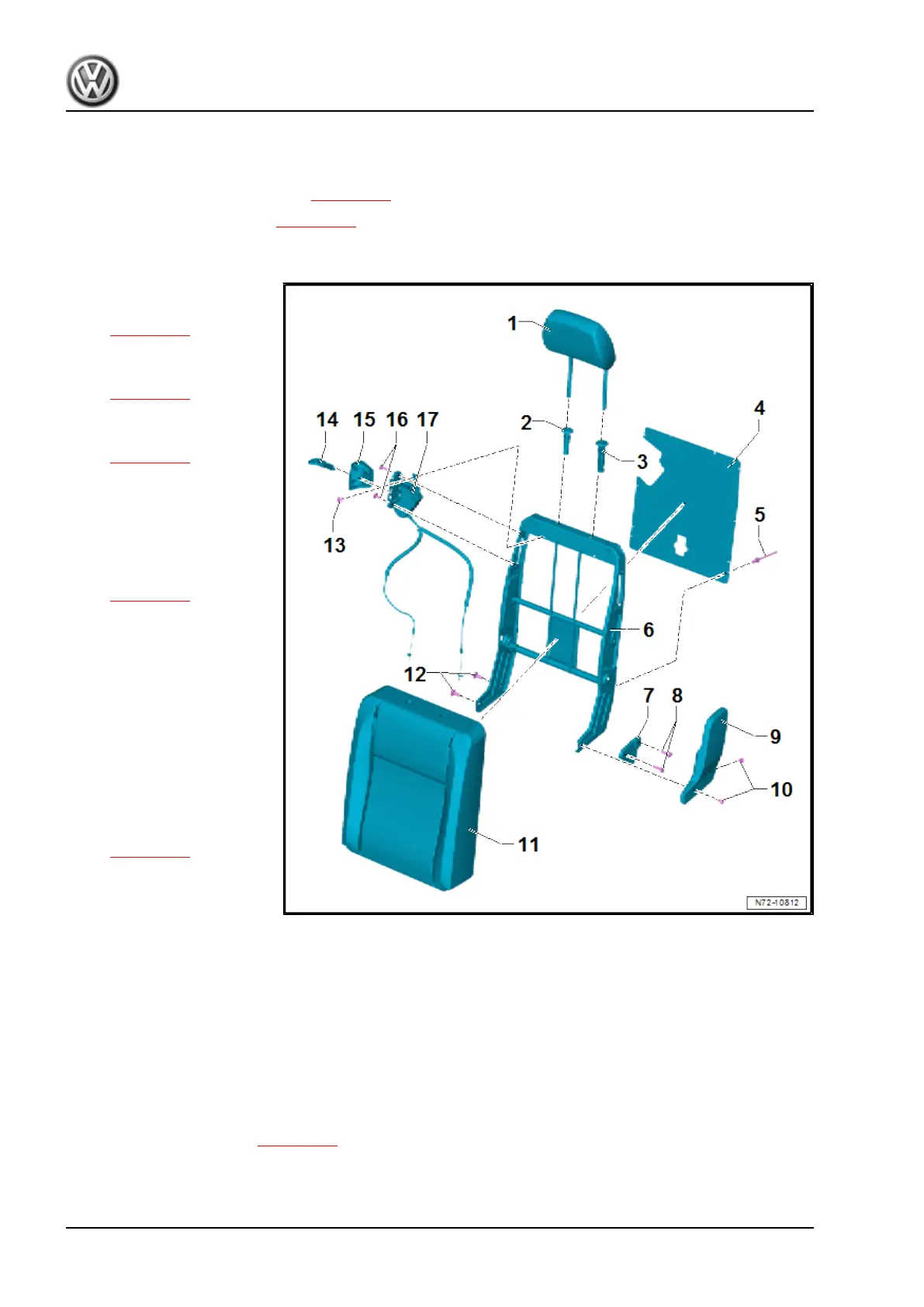

Assembly overview – front backrest
1 - Head restraint
❑ Assembly overview
⇒ page 360
2 - Right head restraint guide
❑ Removing and installing
⇒ page 360
3 - Left head restraint guide
❑ Removing and installing
⇒ page 360
4 - Rear panel board
5 - Pop rivet
❑ Qty. 10
6 - Backrest frame
❑ Removing and installing
⇒ page 369
7 - Support
8 - Bolts
❑ Qty. 4
❑ 55 Nm
9 - Backrest trim
10 - Bolts
❑ Qty. 2
❑ 4.5 Nm
11 - Seat padding
❑ Removing and installing
⇒ page 436
12 - Bolts
❑ Qty. 2
❑ 65 Nm
13 - Spreader rivet
14 - Handle
15 - Trim
16 - Bolts
❑ Qty. 2
❑ 4 Nm
17 - Release mechanism
❑ With Bowden cable
❑ Renew after removal ⇒ page 374
Assembly overview - seat pan
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
350 Rep. gr.72 - Seat frames
