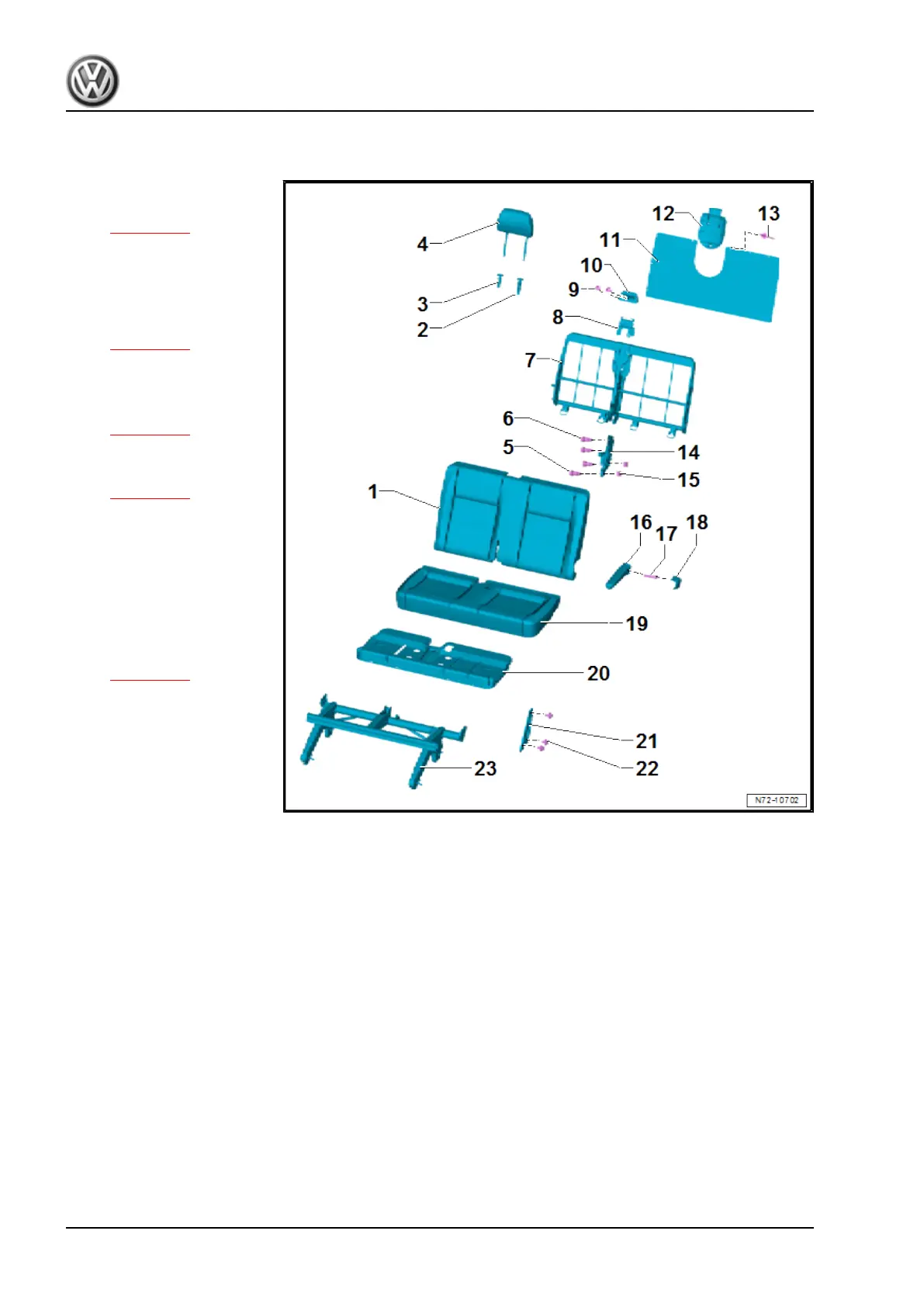

3.1.7 Assembly overview - bench seat / individual seats, Transporter, 2nd row
1 - Backrest padding
❑ Removing and installing
⇒ page 444
2 - Head restraint guide
❑ With push button for
head restraint, adjusta‐
ble
❑ Assembly overview
⇒ page 352
3 - Head restraint guide
❑ Adjustable
❑ Assembly overview
⇒ page 352
4 - Head restraint
❑ Assembly overview
⇒ page 360
5 - Bolts
❑ Qty. 2
6 - Bolts
❑ Qty. 2
❑ 65 Nm
7 - Backrest frame
❑ Removing and installing
⇒ page 369
8 - Belt guide
❑ Secured to backrest
frame with 4 pop rivets
9 - Bolts
❑ Qty. 2
❑ 2 Nm
10 - Cover
❑ For belt guide
11 - Rear panel board
❑ Secured to backrest frame with 7 pop rivets
12 - Cover
13 - Pop rivet
❑ Qty. 7
14 - Adjustment fitting
15 - Nuts
❑ Renew after removal
❑ Qty. 2
❑ 65 Nm
16 - Armrest
❑ Left and right
17 - Bolt
❑ 20 Nm
