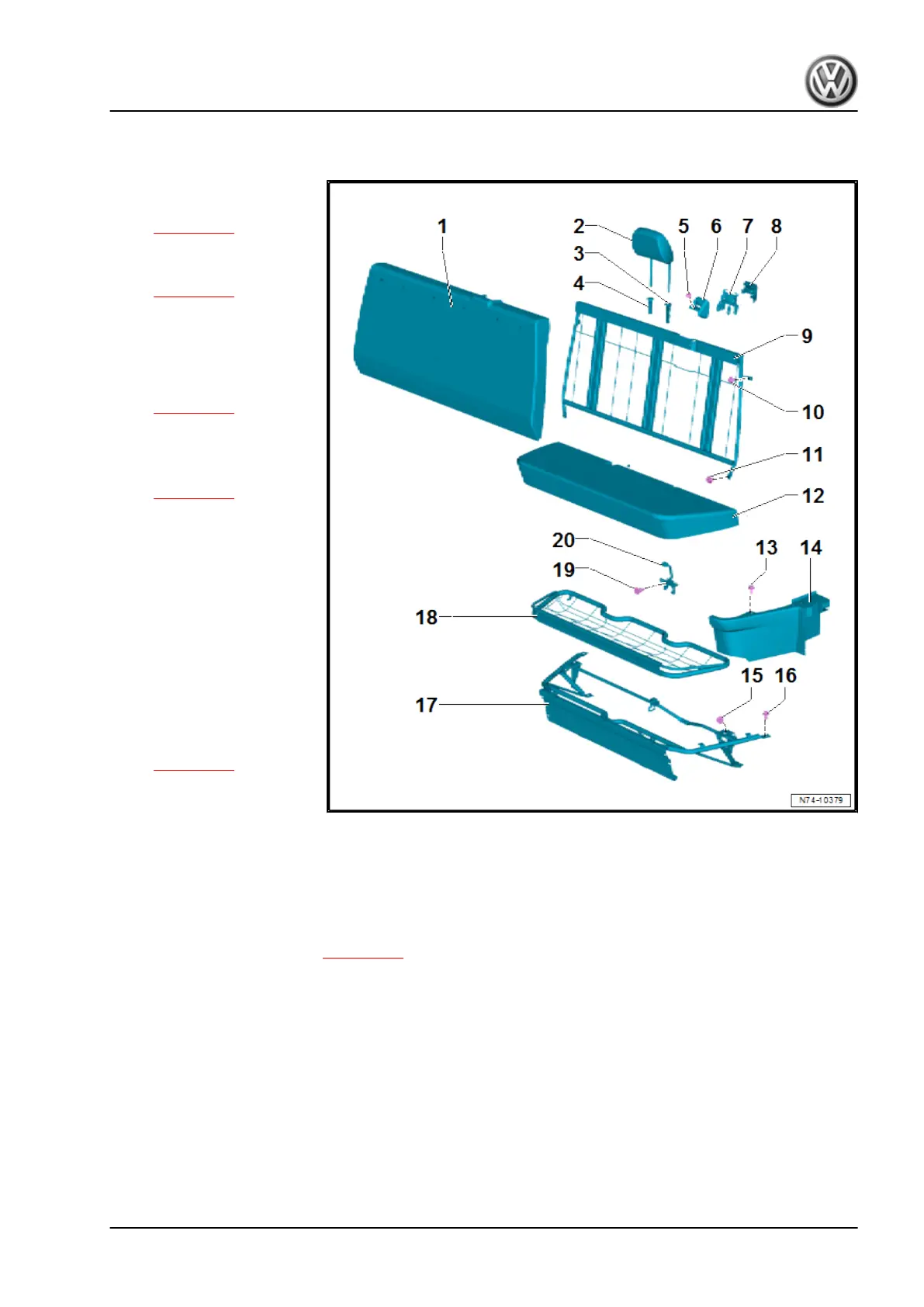

3.1.9 Assembly overview - bench seat / individual seats, double cab, 2nd row
1 - Backrest padding
❑ Removing and installing
⇒ page 444
2 - Head restraint
❑ Assembly overview
⇒ page 360
3 - Head restraint guide
❑ With push button for
head restraint, adjusta‐
ble
❑ Assembly overview
⇒ page 352
4 - Head restraint guide
❑ Adjustable
❑ Assembly overview
⇒ page 352
5 - Bolt
❑ 2 Nm
6 - Front cover cap
❑ For belt guide
7 - Belt guide
❑ Secured with 4 pop riv‐
ets
8 - Rear cover cap
❑ For belt guide
9 - Backrest frame
❑ Removing and installing
⇒ page 369
10 - Bolt
❑ Left and right
❑ 20 Nm
11 - Nuts
❑ Left and right
❑ 20 Nm
12 - Seat padding
❑ Removing and installing ⇒ page 436
13 - Bolts
❑ Qty. 3
14 - Trim
15 - Nut
❑ 20 Nm
16 - Bolt
❑ 20 Nm
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
3. Rear seats 359
