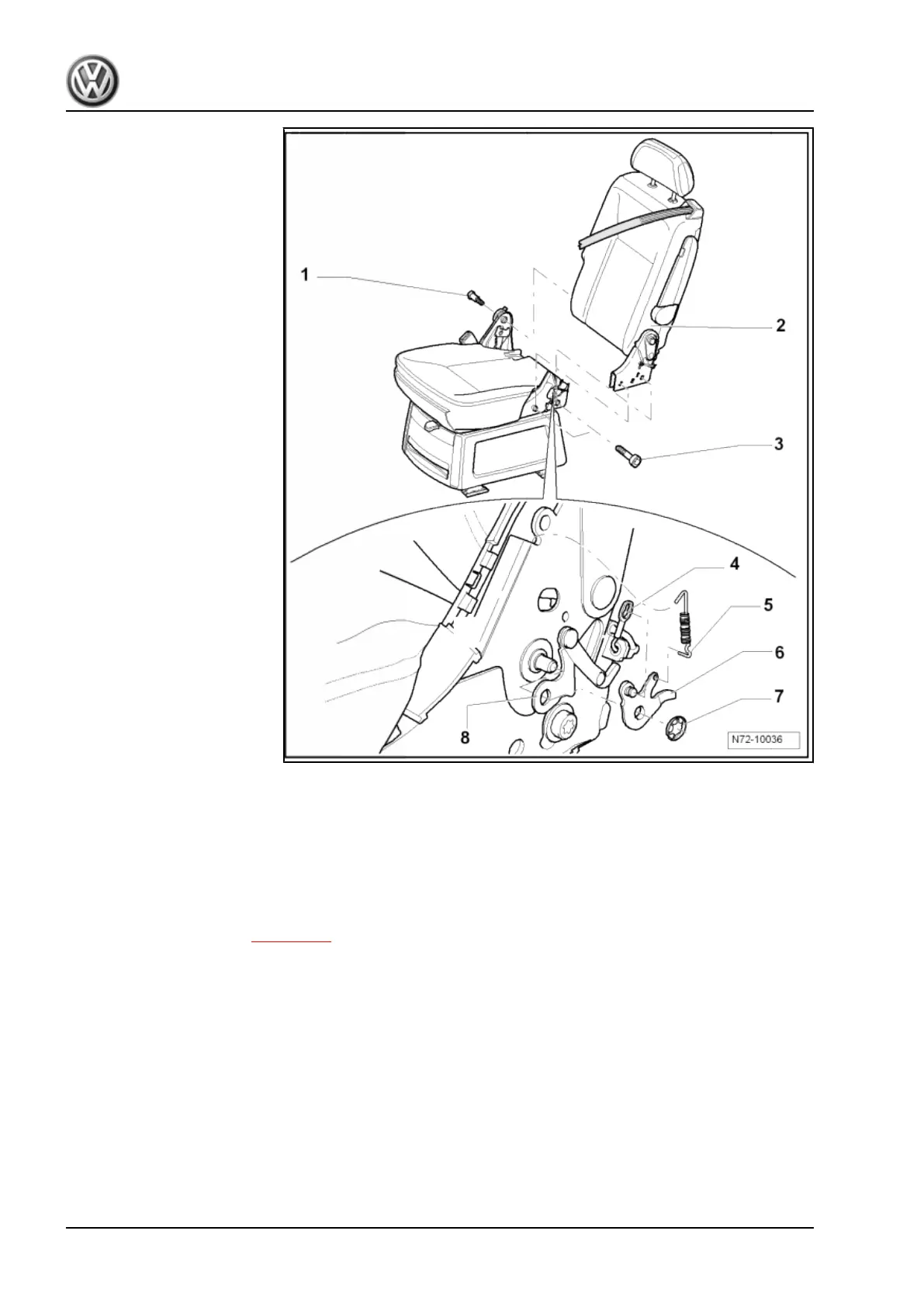

Removing
– Remove front seat frame trim of individual seat in 2nd row.
– Remove rear seat frame trim of individual seat in 2nd row.
– Remove right seat frame trim of individual seat in 2nd row.
– Remove left seat frame trim of individual seat in 2nd row.
– Remove belt end fitting ⇒ page 124 .
– Using a small screwdriver, unclip Bowden cable -4- from relay
lever -6-.
– Unhook tensioning spring -5-.
– Using a small screwdriver, lever off spring clip -7-.
– Remove relay lever -6- from backrest frame.
– Remove relay lever -8- from backrest frame.
– Unscrew bolts -3-.
– Unscrew bolt -1-.
– Remove backrest -2- upwards from seat frame.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
370 Rep. gr.72 - Seat frames
