– Carefully slide cup holder in carrier plate until it can be seen
and heard to engage.
6.6 Table module in seat rails, removing and installing ashtray
Removing
– Remove table module ⇒ page 80 .
– Move table to uppermost position.
– Turn table top 90°.
– Remove table top ⇒ page 82 .
– Remove front cup holder ⇒ page 83 .

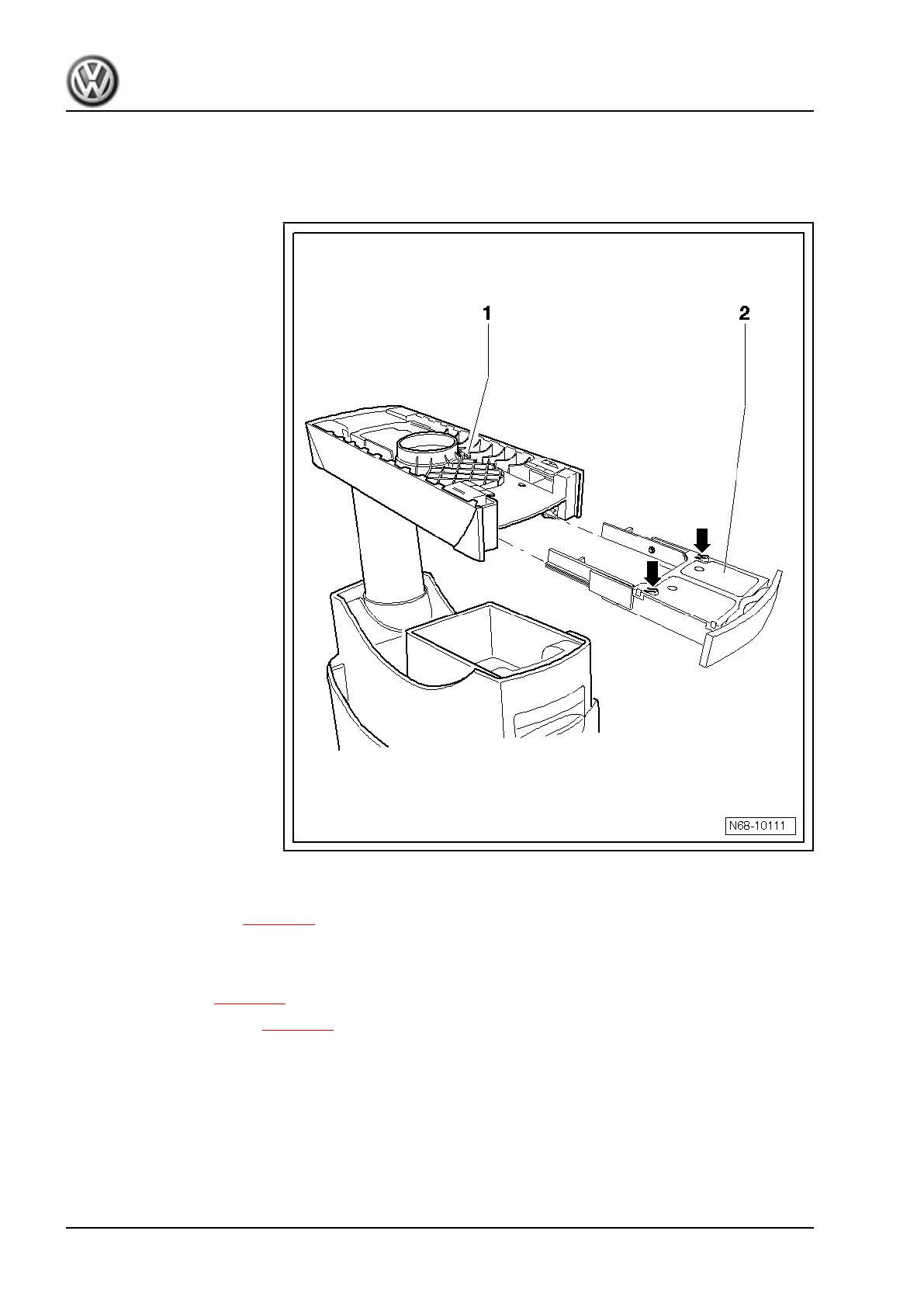

– Push down 2 retaining lugs -arrows- and pull out ashtray -2-
from carrier plate -1-.
Installing
Install in reverse order of removal, observing the following:
– Before installing, check position of both guides. Retaining tabs
may need to be bent up slightly.
– Carefully slide ashtray in carrier plate until it can be seen and
heard to engage.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
84 Rep. gr.68 - Interior equipment
