– Unscrew bolts -2- and remove together with spacer bushes
-3-.
– Guide out rear slide rails -arrows- and pull drawer out of table
module.
Installing
Install in reverse order of removal, observing the following:
Specified torques
♦ ⇒ “6.1 Assembly overview - table modules, table module in
seat rails”, page 76
6.8 Table module in seat rails, removing and installing front trim
Removing
– Move table to uppermost position.

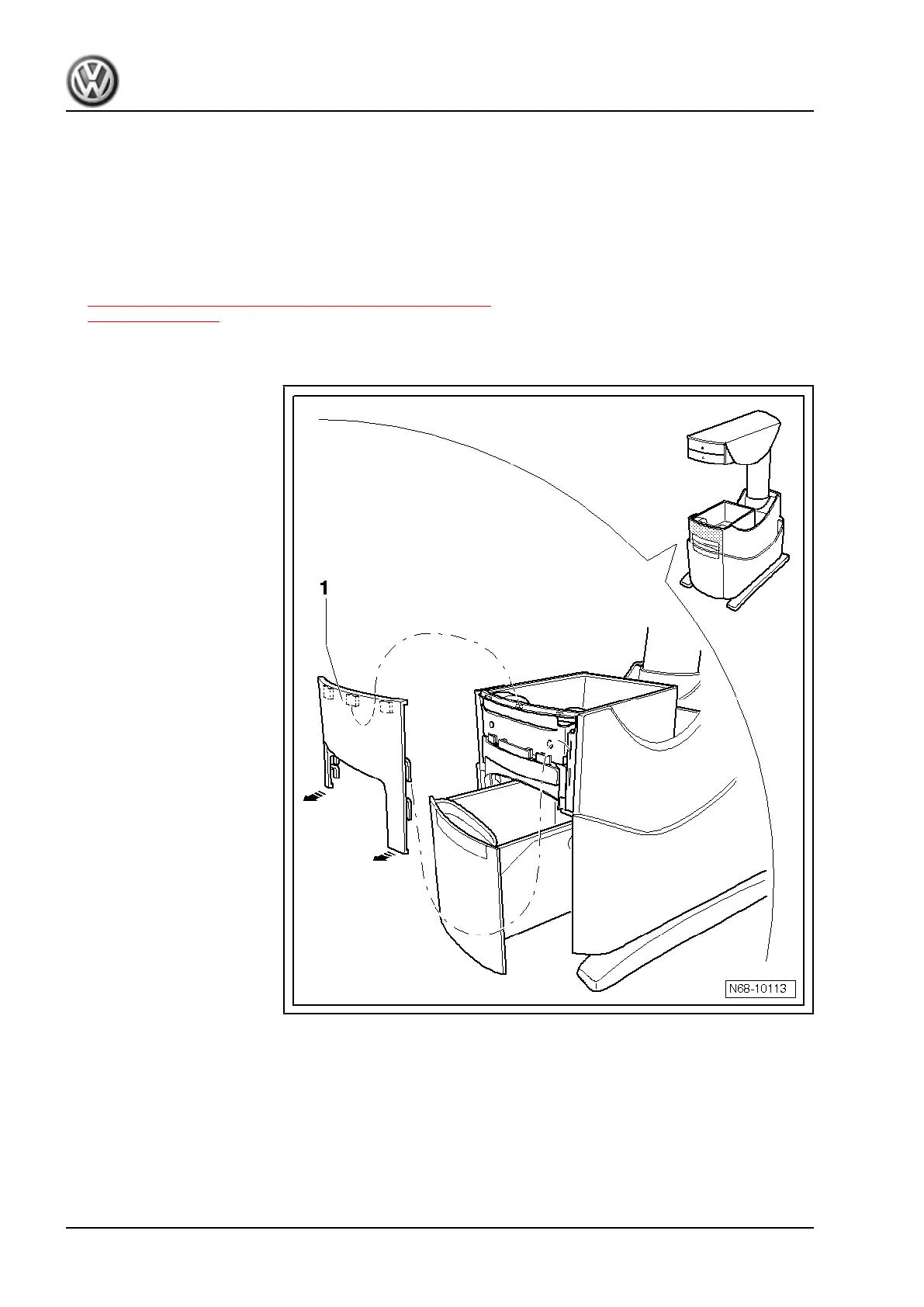

– Pull up both lower lips of trim -1- slightly in direction of
-arrow- while sliding trim upwards at same time.
– Unhook trim from mountings in table module.
Installing
Installation is carried out in reverse order.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
86 Rep. gr.68 - Interior equipment
