6.9 Table module in seat rails, removing and installing rear trim
Removing
– Remove table module ⇒ page 80 .
– Move table to uppermost position.

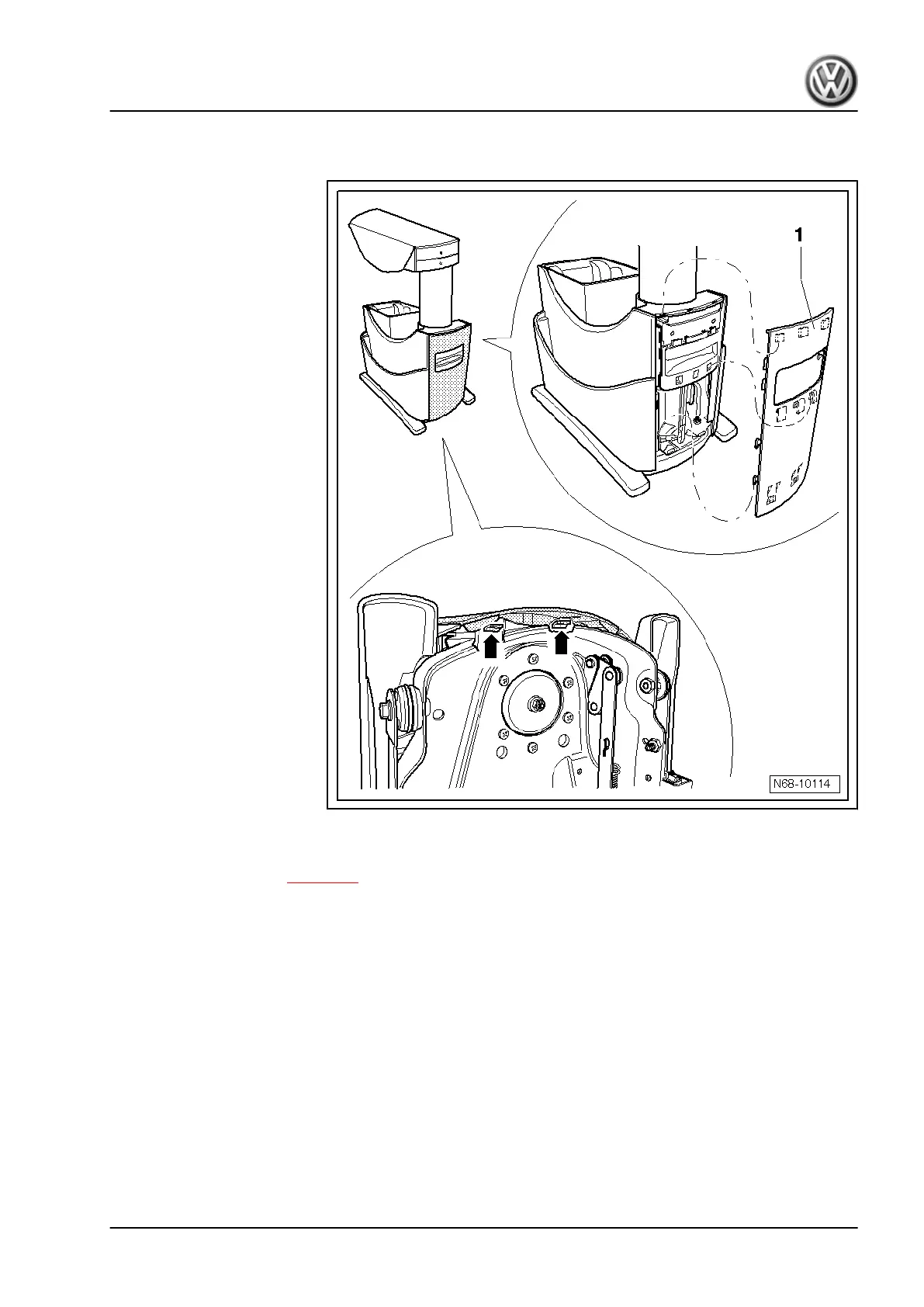

– Push both locking hooks forwards in direction of -arrow- while
sliding trim -1- upwards at same time.
– Unhook trim from mountings in table module.
Installing
Install in reverse order of removal, observing the following:
– In order to avoid damage during installation, check clearance
to all retaining lugs and locking hooks.
6.10 Table module in seat rails, removing and
installing side trim with magazine rack
Special tools and workshop equipment required
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
6. Table modules, Multivan/Business 87
