4-30 Phaser 6125/6130 Color Laser Printer Service Manual
General Troubleshooting
Tray Feed Solenoid (Half/Init)

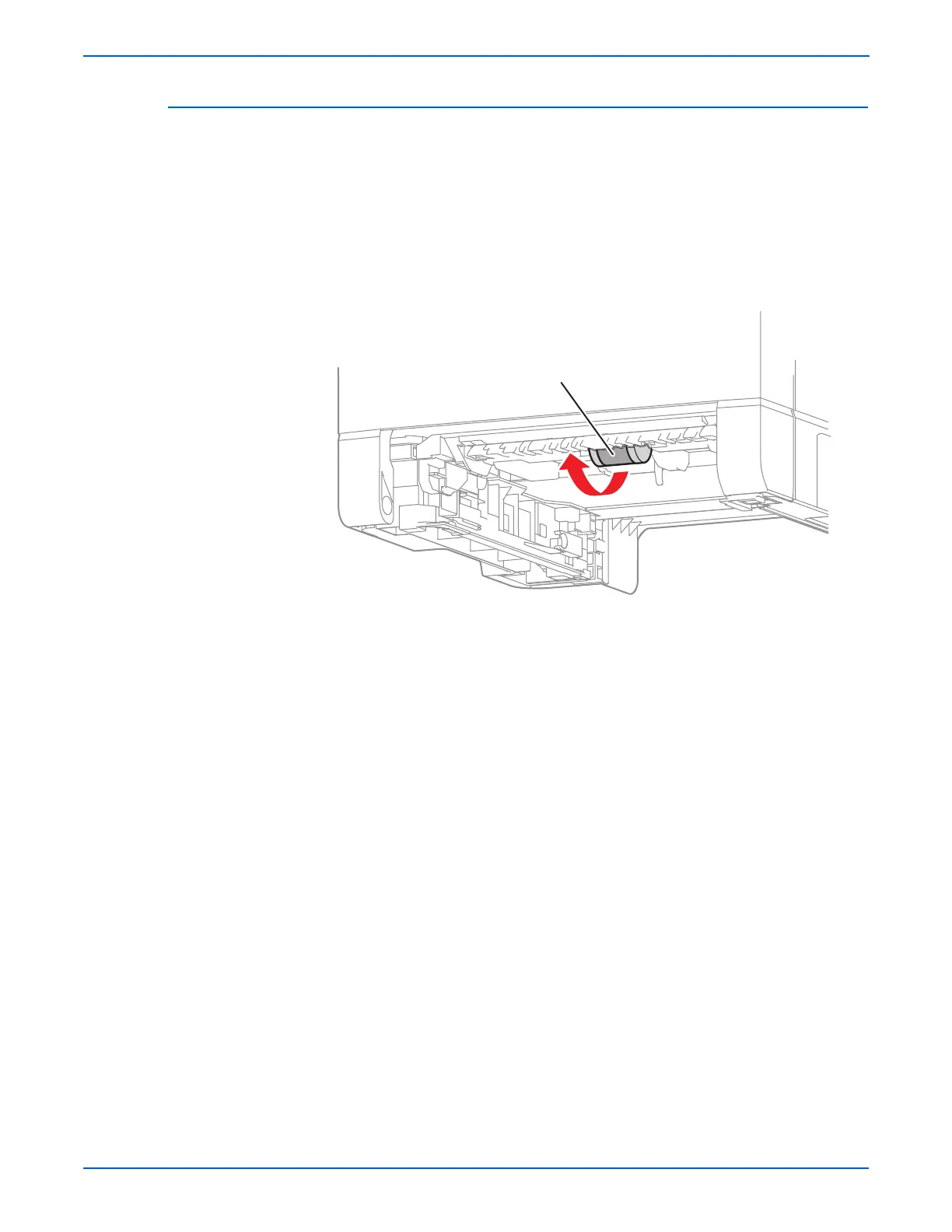

This test operates the Feed Solenoid and allows the Feed Roller for the Paper
Tray to turn. When (Half) is selected, the Feed Roller makes a half rotation;
When (Init) is selected, the Feed Roller makes a half-rotation to return to the
initial position.
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove the Paper Tray.
3. Perform the Tray 2 Feed Solenoid (Half) or (Init) test: Engine Diag >
Motor Test> Tray 2 Feed Solenoid (Half/Init).
To repeat either the (Half) or (Init) test, it is necessary to press the
Cancel button first. However, to perform the (Init) test after the (Half)
test, it is only necessary to select the test
4. Press the Cancel button to stop the Tray 2 Feed Solenoid (Half/Init) test.
