Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 8-45
Service Parts Disassembly
Transfer Unit Pivot Kit
(PL6.1.99)

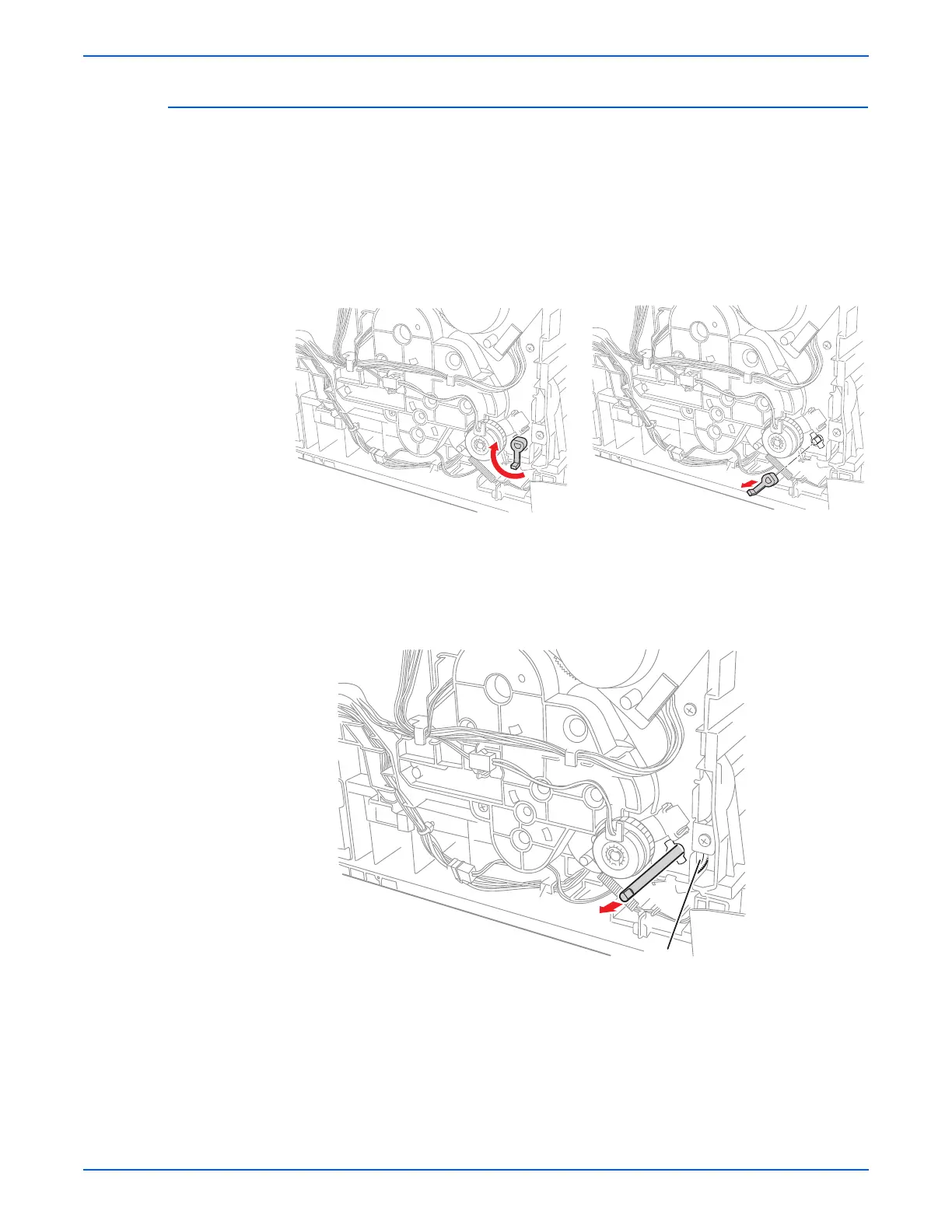

This procedure removes the pivot shafts for the Transfer Unit.
1. Remove the Right Side Cover (page 8-16).
2. Remove the Left Side Cover (page 8-17).
3. Rotate the Pivot Stopper to align the tabs of the Pivot Stopper with the
notches of the Main Drive Assembly.
4. Remove the Pivot Stopper from the printer.
Note
When performing the following procedure, take care not to drop Gear
T4.
5. Pull out the Left Transfer Pivot, and remove the Gear T4 from the printer.
s6130-115
s6130-116
s6130-117
Gear T4
