Xerox Phaser 6125 Service Manual

Phaser 6125/6130 Color Laser Printer Service Manual 8-21
Service Parts Disassembly
Paper Feeder

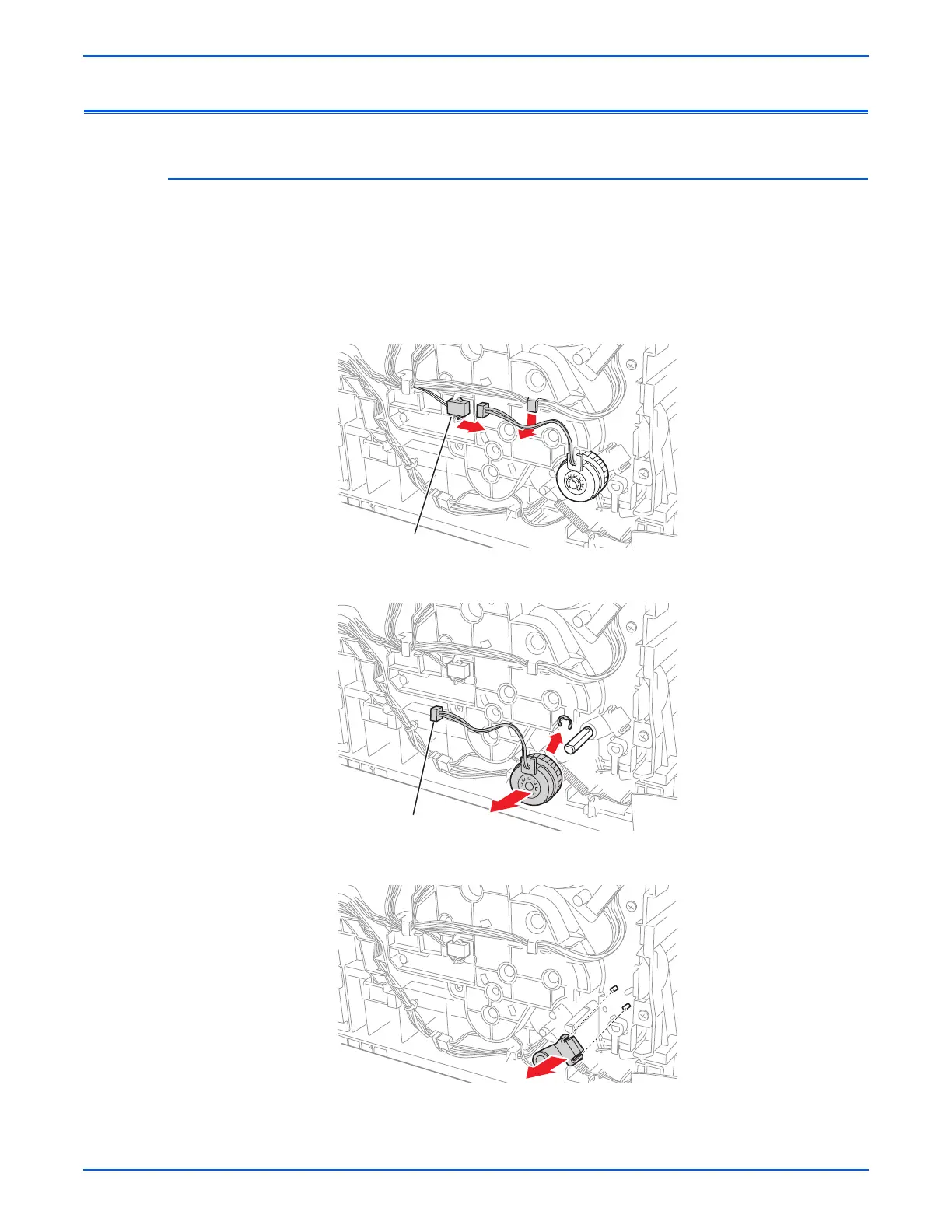

Drive Clutch Kit
(PL3.1.99)
1. Remove the Left Side Cover (page 8-17).
2. Release the Drive Clutch harness from the cable restraint on the Feed
Drive Assembly.
3. Unplug the Drive Clutch connector, P/J262. Allow the relay connector to
remain with the printer side of the harness.
4. Remove the E-ring that secures the Drive Clutch on the shaft, using a
miniature screwdriver, and remove the Drive Clutch.
5. Release the two hooks of the Registration Bearing, and remove the
Registration Bearing from the shaft.
P/J262
P/J262

Xerox Phaser 6125 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	17 s
Time to first page (color, normal)	14 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Internal memory	64 MB
Sound power level (standby)	25.7 dB
Sound pressure level (printing)	51.6 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Media weight (tray 1)	64 - 220 gsm
Paper tray media types	Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Letter
Multi-Purpose Tray media weight	64 - 164 g/m²
Power requirements	240 V, 50/60 Hz
Networking features	10/100BaseTX
Power consumption (active)	280 W
Maximum duty cycle	40000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	50 W
Power consumption (PowerSave)	5 W
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	15 - 85 %
Certification	CE, UL 60950-1/CSA 60950-1-03, EMC 89/336/EEC, FCC 15 B, 73/23/EEC, 2002/95/EC

Weight and Dimensions

Dimensions (WxDxH)	400 x 394 x 389 mm
