Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 3-39
Error Messages and Codes

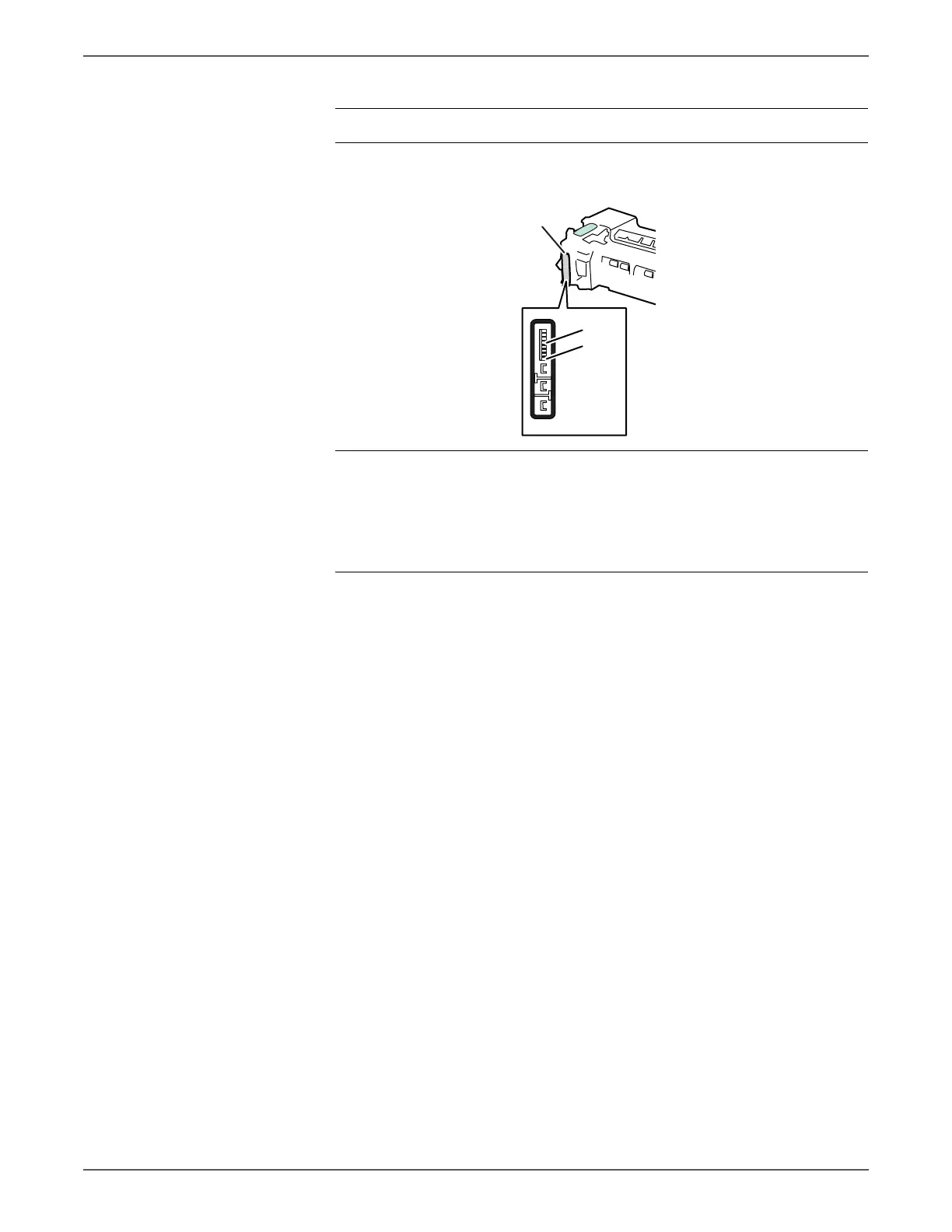

5 Check the resistances of Temp. Sensor in
the Fuser Assy.
Remove the Fuser Assy.
Check for 370
±
10 kΩ across the
following pins of
J171 when the
fuser is cold.
â–  pin 4 to pin 5
â–  pin 6 to pin 7
â–  pin 6 to pin 8
Are the
resistances
correct?.
Replace the
LVPS. (SFP,
page 8-124;
MFP,
page 8-145)
Then go to
step 6.
Replace the
Fuser Assy.
(page 8-10)
After
replacing the
Fuser, be sure
to reset the
Fuser counter.
6 Does the error still occur when the power
is turned Off and On?
Replace the
MCU Board
(SFP,
page 8-138;
MFP,
page 8-160)
Complete.
Troubleshooting Procedure (continued)
Step Actions and Questions Yes No
J171
s6500-
Pin 4
Pin 8
