Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-41
General Troubleshooting
Duplex Motor
The duplex motor drives the duplex rollers.
Note
Close the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Open the Front Cover and duplex chute.
3. Run the Main Motor test: Engine Diag > Motor Test > Duplex Motor Half,
Full1, Full2, Full3.

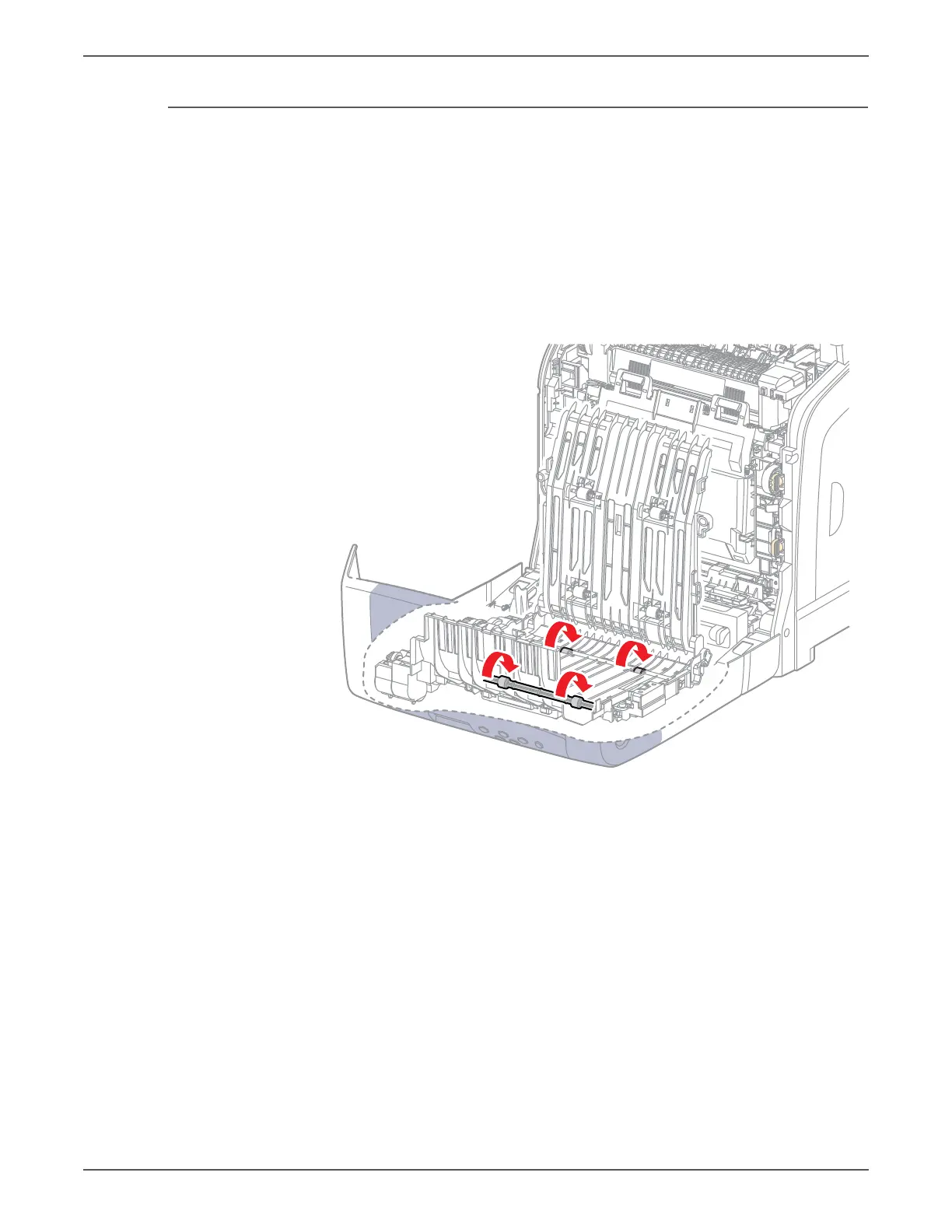

4. Check that the duplex rollers are rotating.
Note
Press Cancel to stop the test.
s6500-128
