8-42 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Toner Door
MFP PL1.1.7 (Cover Window Tnr)
1. Perform the service preparation steps on page 8-3.
2. Remove the MFP Right Side Cover (page 8-40).

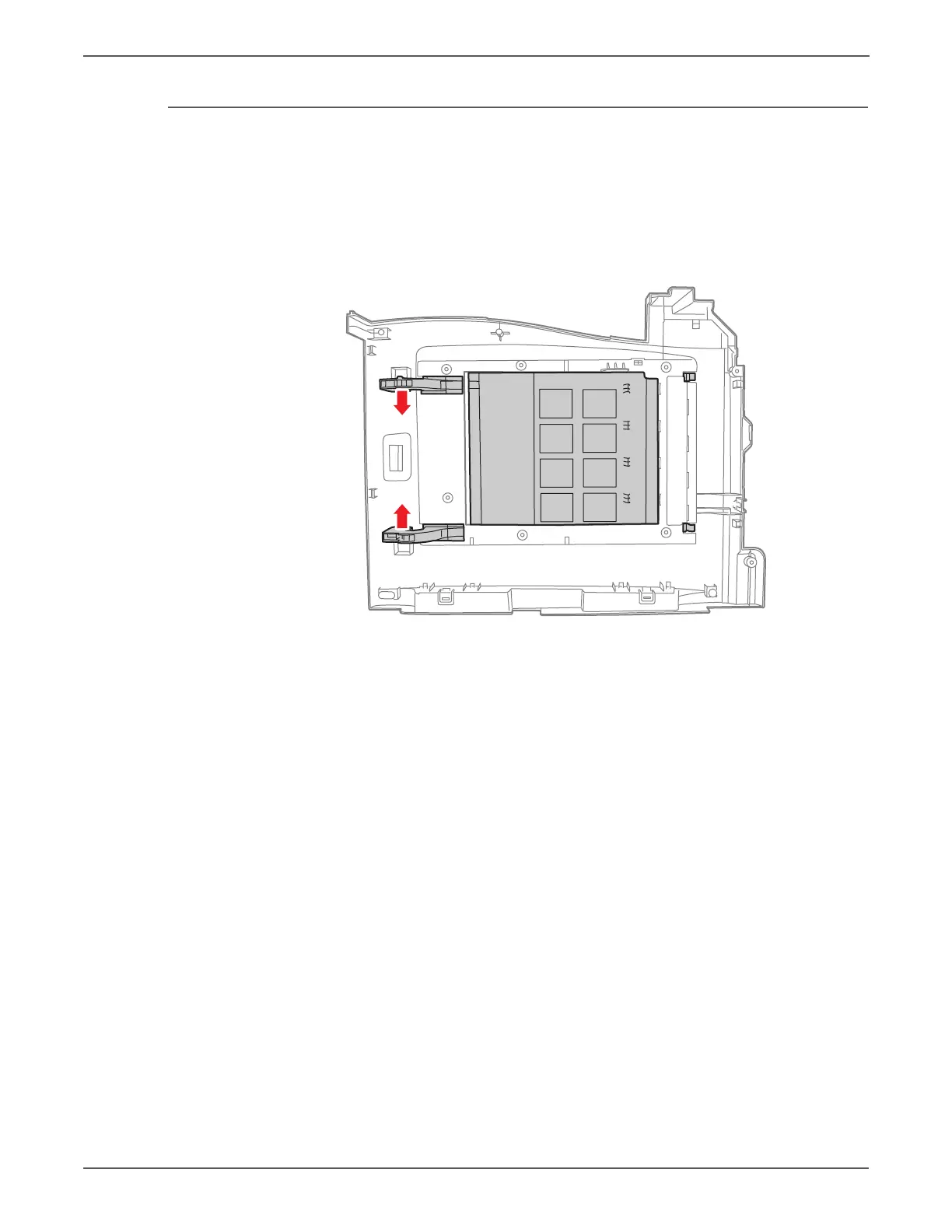

3. Carefully flex the hinge pieces in the directions shown to release the bosses
that secure the upper and lower hinges to the Right Side Cover.
4. Remove the Toner Door from the Right Side Cover.
s6500-221
