Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-115
Service Parts Disassembly
Replacement Note

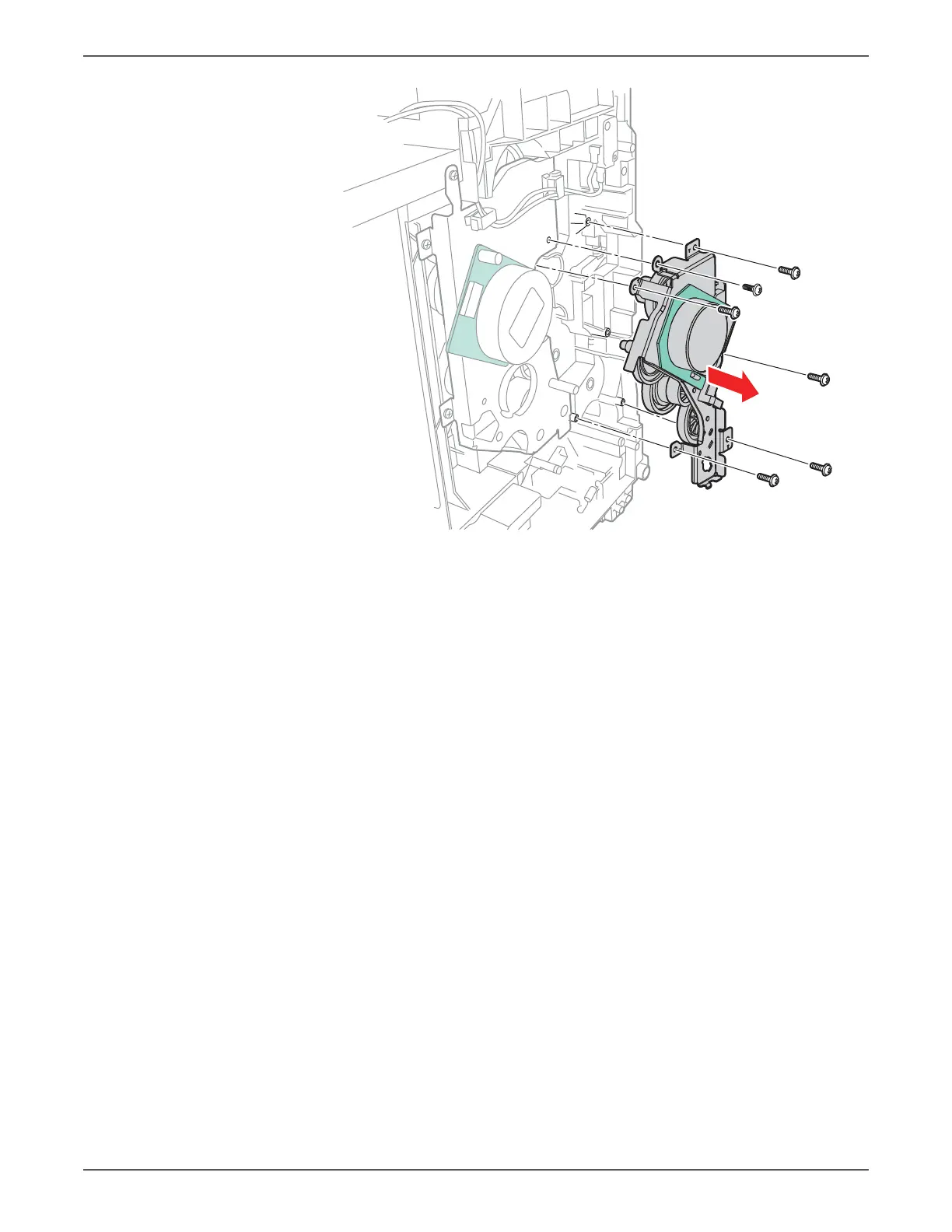

Secure the wiring harness connecting the sub motor through the back of the
hook on the Main Drive Assembly
s6500-297
6mm
