Xerox WorkCentre 3225 User Manual

June 2014
4-46
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.33
Repairs
4. Remove the Manual Paper Tray top screws (2) and the paper tray (Figure 2).

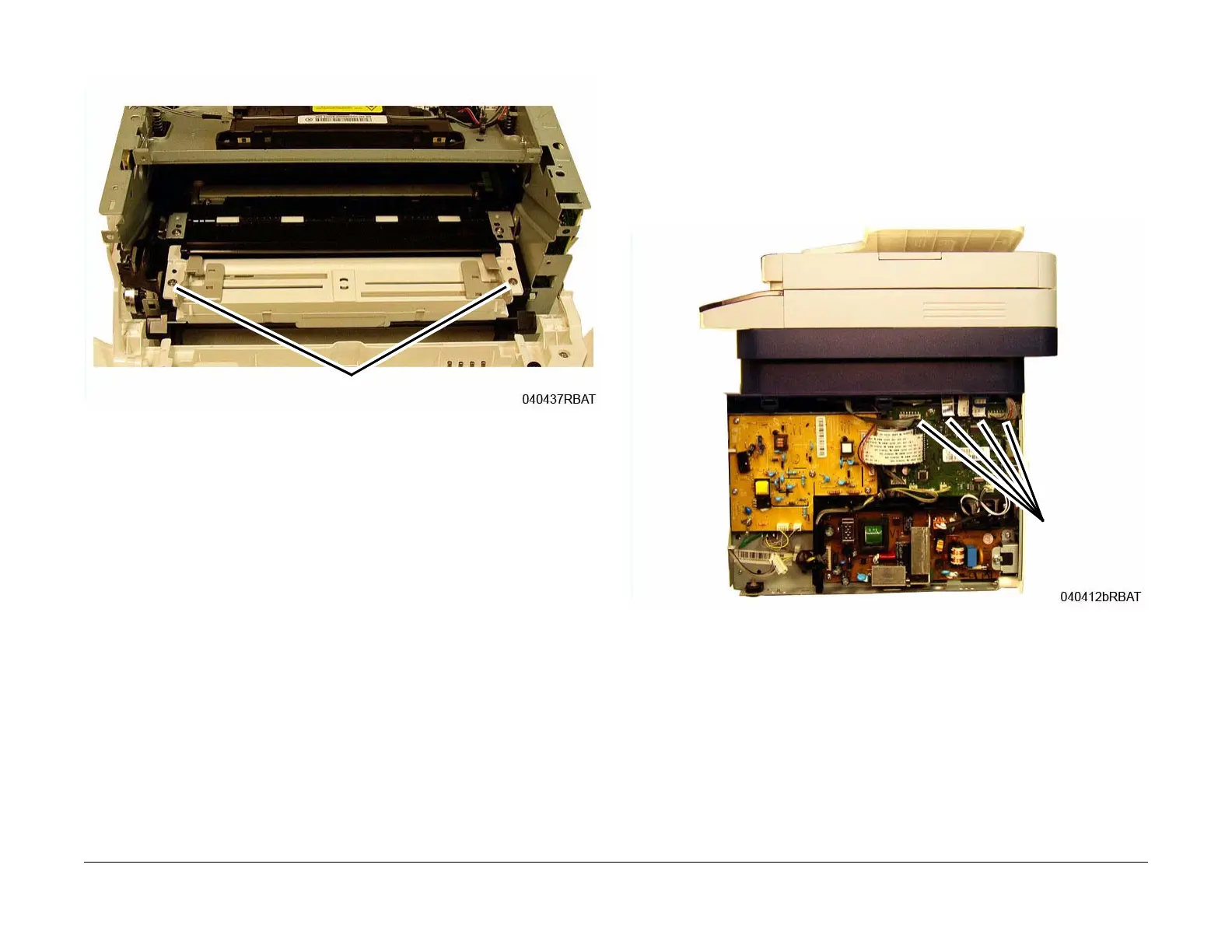

Figure 2 Manual Paper Tray Top Screws (Top View)
Replacement
Install the components in the reverse of removal.
REP 1.33 WNPC (WiFi) PWB
Parts List on PL 1.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. Remove the Left and Right Side Covers (REP 1.2).
b. Remove the Rear Cover (REP 1.4).
3. Disconnect the 4 connectors from the Main PWB (Figure 1).
Figure 1 Main PWB Connectors
4. Remove the ADF / Scanner Assembly (REP 1.28).
5. Remove the Middle Cover (REP 1.3).
Screws
Connectors
